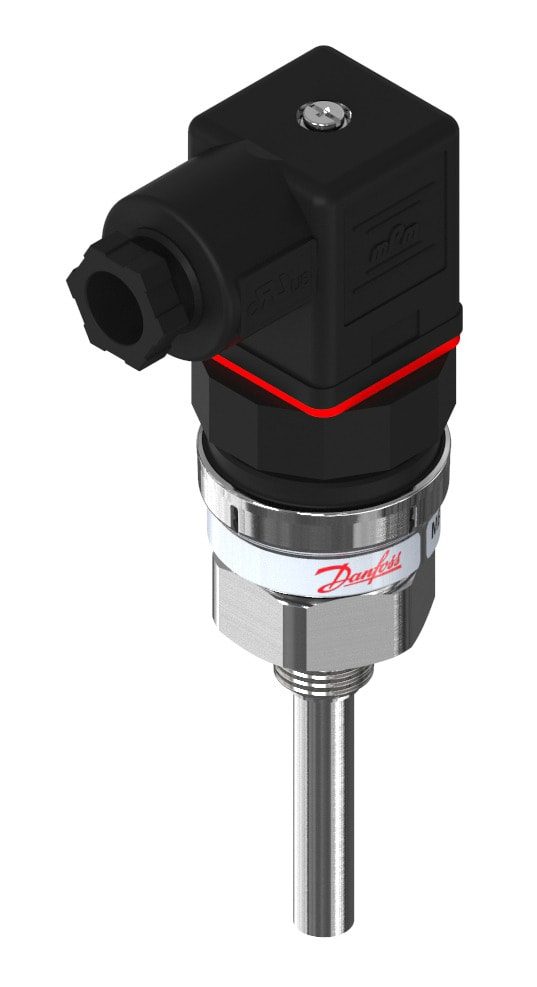

Danfoss MBT 3560 temperature sensor, Pt 1000, 50 mm insertion, NPTF 1/4-18
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 3560 insertion temperature sensor, code 084Z4209 (type designation MBT 3560-0000-050-1F-110). Direct resistance/RTD output sensor for refrigeration, HVAC and industrial temperature measurement. Sensor element: Pt 1000 (1000 ohm at 0 °C) platinum RTD, tolerance < ± 1% FS. Insertion length 50 mm. Process connection NPTF 1/4-18 (ANSI/ASME B1.20.1), Stainless steel. Measuring range 0 to 100 °C. Electrical connection Angular connector, Pg 9. Enclosure IP65. Net weight 0.124 kg / gross 0.172 kg. Supplied multi pack, 13 pc. CE marked. EAN 5702428001151. OEM P/N 084Z4209.
Technical Specifications
- Type
- Danfoss MBT 3560 — Temperature sensor
- Type designation
- MBT 3560-0000-050-1F-110
- Code number
- 084Z4209
- Product group
- Sensors
- Sensor element
- Pt 1000 (1000 ohm at 0 °C) platinum RTD
- Element tolerance
- < ± 1% FS
- Insertion length
- 50 mm
- Process connection
- NPTF 1/4-18 (ANSI/ASME B1.20.1)
- Process connection material
- Stainless steel
- Measuring range
- 0 to 100 °C
- Electrical connection
- Angular connector, Pg 9
- Enclosure rating
- IP65
- Packing format
- Multi pack
- Quantity per pack
- 13 pc
- Net weight
- 0.124 kg
- Gross weight
- 0.172 kg
- Approvals
- CE
- EU RoHS
- Yes with exemptions
- Lifecycle status
- Current
- EAN
- 5702428001151
Standards & Compliance
- Size / Series
- 50 mm insertion
- Material
- Stainless steel protection tube
- Thread Standard
- ANSI/ASME B1.20.1
- Temperature Range
- 0 to 100 °C
- IP Rating
- IP65
- Classification / Approval
- CE
- HS Code
- 9025.19
Compatibility & Fitment
Danfoss genuine sensor part. Confirm the element/connection (NPTF 1/4-18 (ANSI/ASME B1.20.1)), insertion 50 mm matches the application before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss MBT 5560 temperature transmitter, 250 mm insertion, G 1/4
084Z4210
Danfoss
Danfoss MBT 3270 temperature sensor, Pt 100, G 1/2
084Z4211
Danfoss
Danfoss Electrical connector — temperature-sensor accessory (code 084Z4212)
Danfoss
Danfoss Electrical connector — temperature-sensor accessory (code 084Z4213)
Danfoss
Danfoss MBT 5116 temperature sensor, Pt 1000, 200 mm insertion, G 3/4 (code 084Z4214)
Danfoss
Danfoss MBT 5116 temperature sensor, Pt 1000, 100 mm insertion, G 3/4 (code 084Z4215)
Danfoss

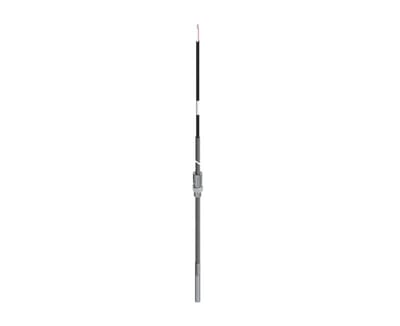

Danfoss MBT 5310 temperature sensor, Pt 100, 50 mm insertion, M 12X1
084Z4218
Danfoss

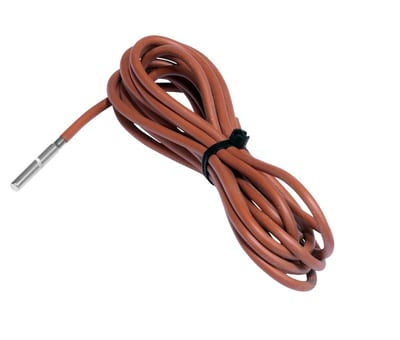

Danfoss MBT 153 temperature sensor, Pt 100
