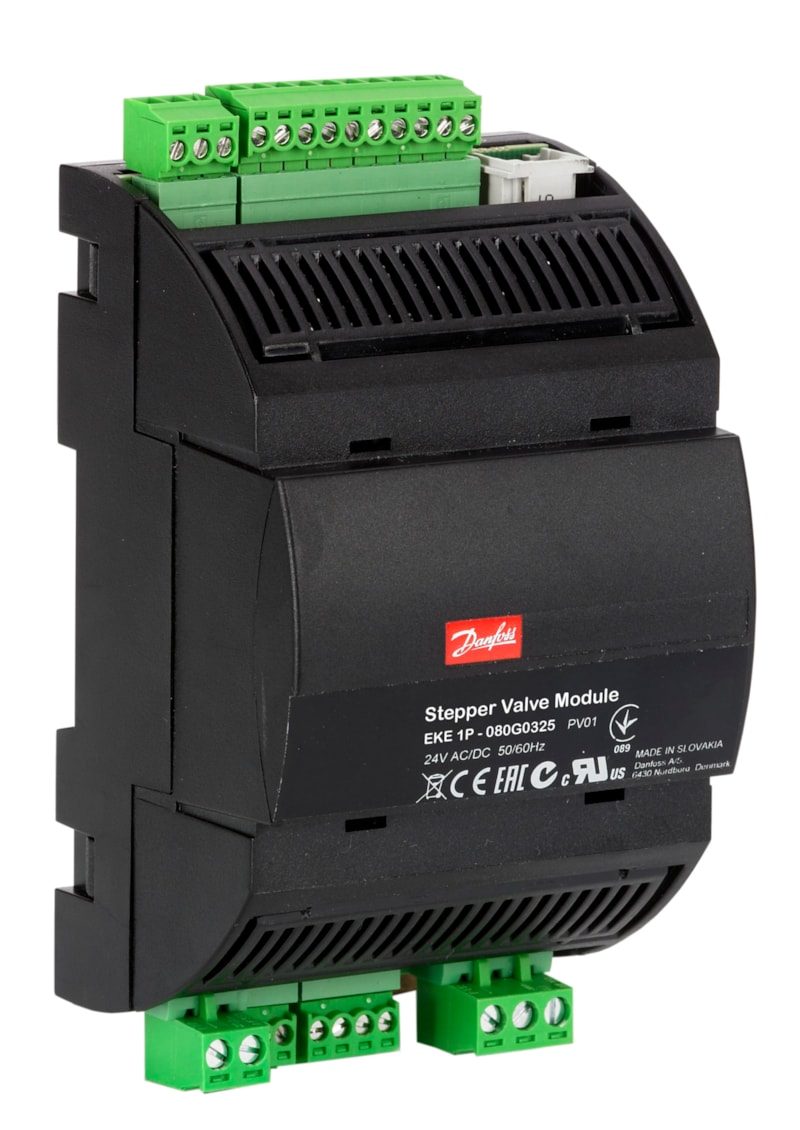

Danfoss EKE 1P stepper valve driver, electronic expansion valve controller
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss EKE 1P stepper valve driver for electronic expansion valves. Superheat control from a Pt 1000 temperature sensor and a ratiometric (0.5-4 V DC) pressure transmitter, driving a stepper-motor EEV. 24 V AC/DC supply, Modbus RS485 RTU communication, battery-backed valve close on power loss. DIN-rail mount, IP40. EAN 5702428673730.
Technical Specifications
- Type
- EKE 1P stepper valve driver
- Function
- Electronic expansion valve (stepper) superheat driver
- Supply voltage
- 24 V AC / 24 V DC
- Frequency
- 50/60 Hz
- Digital inputs (DI)
- 2 pc
- Analog inputs (AI)
- 4 pc (voltage)
- Digital outputs (DO)
- 1 pc
- Pressure sensor support
- Ratiometric 0.5-4 V DC
- Temperature sensor support
- Pt 1000
- Communication
- Modbus RS485 RTU; RJ11 (CAN) to user interface
- Battery backup range
- 18-24 V DC
- Enclosure rating
- IP40 (housing)
- Mounting
- DIN rail
- Net weight
- 0.134 kg
- Approvals
- CE, C-TICK, EAC, RoHS
- Danfoss code
- 080G0325
- EAN
- 5702428673730
- Number of poles
- 1P
- Product group
- Electronic valve control
- Analog inputs (AI) [pc]
- 4 pc
- Analog inputs type
- Voltage
- Approval
- C-TICK
- Battery back-up [V] DC [max]
- 24 V
- Battery back-up [V] DC [min]
- 18 V
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Communication type
- Modbus RS485 RTU
- Digital inputs (DI) [pc]
- 2 pc
- Digital outputs (DO) [pc]
- 1 pc
- Display - option
- MMIGRS2
- Display on front
- No
- Division
- 25
- Enclosure rating note
- IP40 for Housing
- EU RoHS compliance
- Out of scope
- Frequency [Hz]
- 50/60 Hz
- Further information
- Shared power supply
- Gateway option
- MMIMYK
- Mounting method
- DIN rail
- Number of pressure sensors
- 1
- Number of temperature sensors
- 2
- Other RoHS documentation
- EAEU RoHS
- PFAS content [Yes/No]
- No
- Product features
- Alarm management
- Product Language
- Chinese
- Programming tools
- Koolprog
- REACH Candidate List substances
- 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol (CAS no. 79-94-7)
- Supply voltage [V] AC
- 24 V
- Supply voltage [V] DC
- 24 V
- Temp. sensor support
- Pt 1000
- Used for product
- CCM
- Valve output type
- CCM 10
Standards & Compliance
- IP Rating
- IP40
- Classification / Approval
- CE, C-TICK, EAC, RoHS
- HS Code
- 9032.89
Compatibility & Fitment
Stepper-motor EEV superheat driver on the Danfoss ADAP-KOOL / MCX platform. Pairs a Pt 1000 sensor with a ratiometric 0.5-4 V pressure transmitter to control a stepper expansion valve. Confirm valve motor type (stepper, not AKV pulse-width) and sensor types before ordering.
