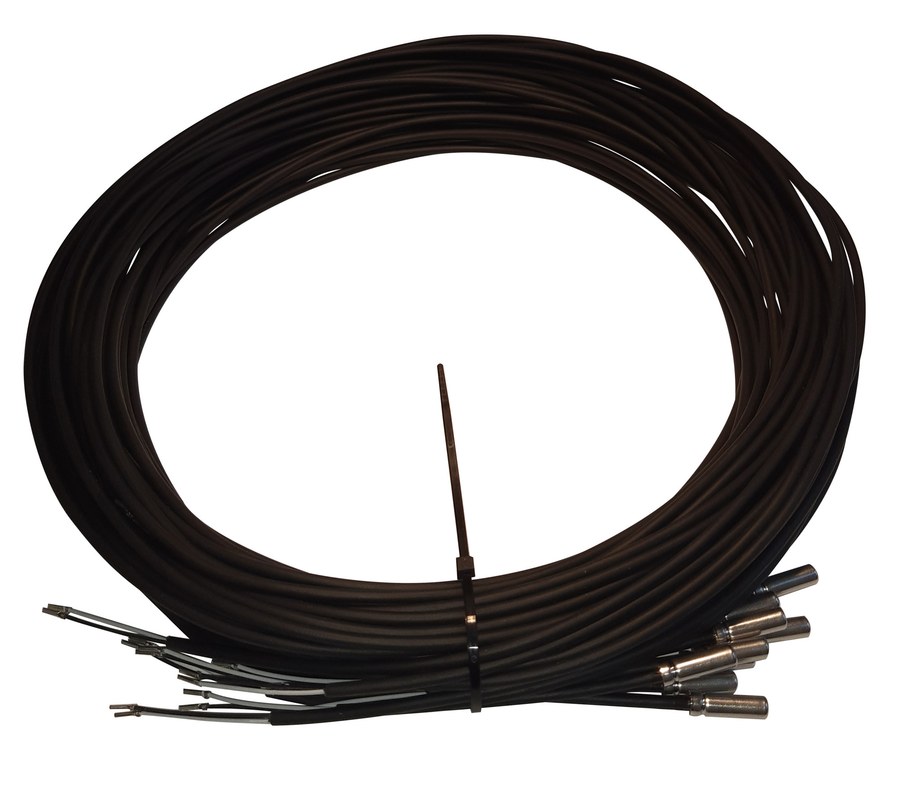

Danfoss ACCPBT NTC temperature probe, IP68, 6X20 mm, 3 m
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ACCPBT NTC temperature probe for MCX-series refrigeration controllers. Sealed IP68 sensor tip 6 x 20 mm on a 3 m lead, I/P 10 connection. Supplied as an industrial pack of 10. EAN 5702423285952.
Technical Specifications
- Type
- ACCPBT NTC temperature probe
- Sensor type
- NTC thermistor
- Probe dimensions
- 6 x 20 mm
- Cable length
- 3 m
- Connection
- I/P 10
- Enclosure rating
- IP68
- Application
- MCX series controllers
- Packing
- Industrial pack, 10 pc
- Net weight
- 0.035 kg
- Approvals
- CE, RoHS
- Danfoss code
- 080G0202
- EAN
- 5702423285952
- Product group
- Sensors
- Approval
- CE
- Cable length [m]
- 3 m
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- EU RoHS compliance
- Yes
- In scope of WEEE
- Yes
- REACH Candidate List substances
- No
- Type designation
- ACCPBT
- Used for product
- MCX series
Standards & Compliance
- Classification / Approval
- CE, RoHS
- HS Code
- 9025.19
Compatibility & Fitment
NTC temperature probe for Danfoss MCX-series controllers, 6 x 20 mm tip on a 3 m lead. The 6 x 40 mm tip versions are 080G0205 (1.5 m) and 080G0206 (3 m). Confirm the controller expects an NTC input before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss ACCPBT NTC temperature probe, IP68, 6X40 mm, 1.5 m
080G0205
Danfoss
Danfoss ACCPBT NTC temperature probe, IP68, 6X40 mm, 3 m
080G0206
Danfoss
Danfoss ACCPBT NTC temperature probe, IP68, 6X40 mm, 6 m
080G0207
Danfoss
Danfoss ACCPBT PT1000 temperature probe, IP68, 6X40 mm, 1.5 m
080G0209
Danfoss
Danfoss ACCPBT PT1000 temperature probe, IP68, 6X40 mm, 6 m
080G0210
Danfoss
Danfoss ACCPBT PT1000 temperature probe, IP44, 5X40 mm, 1.5 m
080G0211
Danfoss
Danfoss ACCPBT NTC temperature probe, IP67, 6X40 mm, 1.5 m
080G0212
Danfoss
Danfoss ACCSCS fan speed controller, 400 V AC, 8 A, MCX series
080G0217
Technical guides
- Temperature Sensor Finder — Pt 100 / Pt 1000 / NTC / Thermocouple, Danfoss MBT 5250 / 5252 / 5560 / 3560 / 153, Siemens SITRANS TS500 by Insertion Length, Process Connection and Output
- Cross-Referencing Danfoss Refrigeration Components by IMPA and OEM Code
- Danfoss Product Code Decoder — 003Z, 013G, 017B, 023U, 027L, 032F, 060G, 060H, 065B, 065Z, 068Z, 084H, 132F, 148B Series (Complete Reference)
Catalogue entry last verified: 2026-09-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 080G0202?
- 080G0202 can be ordered from cballast.com as a Danfoss catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Danfoss product?
- The manufacturer part number is 080G0202.
- What is the HS code for 080G0202?
- The customs tariff (HS) code for 080G0202 is 9025.19.
- Who manufactures 080G0202?
- 080G0202 is a Danfoss product in the Sensors & Instrumentation range.
- Is a datasheet available for 080G0202?
- Yes — the 080G0202 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 080G0202?
- The minimum order quantity is 1.
- Is 080G0202 available?
- Yes — 080G0202 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
