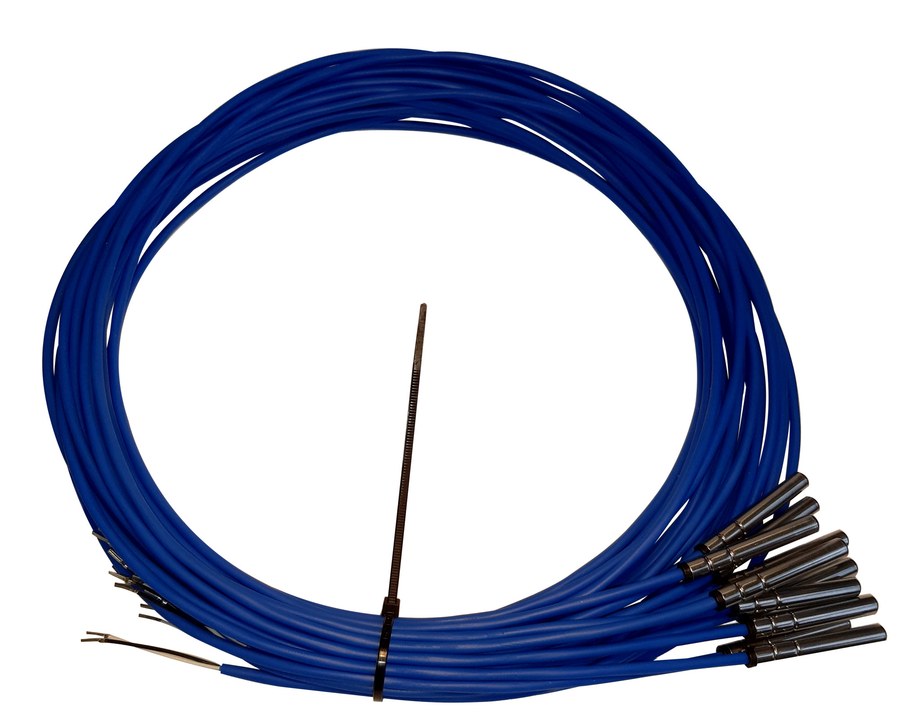

Danfoss ACCPBT PT1000 temperature probe, IP68, 6X40 mm, 1.5 m
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ACCPBT Pt 1000 temperature probe for MCX-series refrigeration controllers. Sealed IP68 sensor tip 6 x 40 mm on a 1.5 m lead, I/P 10 connection. Supplied as an industrial pack of 10. EAN 5702423284528.
Technical Specifications
- Type
- ACCPBT Pt 1000 temperature probe
- Sensor type
- Pt 1000 RTD
- Function
- ACCPBT Pt1000, 6x40, 1.5 m cable
- Probe dimensions
- 6 x 40 mm
- Cable length
- 1.5 m
- Connection
- I/P 10
- Enclosure rating
- IP68
- Application
- MCX series controllers
- Packing format
- Industrial pack, 10 pc
- Net weight
- 0.019 kg
- Approval
- CE
- EU RoHS compliance
- Yes
- Danfoss code
- 080G0209
- EAN
- 5702423284528
- Product group
- Sensors
- Cable length [m]
- 1.5 m
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- In scope of WEEE
- Yes
- REACH Candidate List substances
- No
- Type designation
- ACCPBT
- Used for product
- MCX series
Standards & Compliance
- Classification / Approval
- CE
- HS Code
- 9025.19
Compatibility & Fitment
Pt 1000 temperature probe for Danfoss MCX-series controllers, 6 x 40 mm tip on a 1.5 m lead. The 6 m lead version is 080G0210. The NTC equivalent (6 x 40 / 1.5 m, IP67) is 080G0212. The EKE 1P driver (080G0325) expects a Pt 1000 input. Confirm sensor type before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss ACCPBT PT1000 temperature probe, IP68, 6X40 mm, 6 m
080G0210
Danfoss
Danfoss ACCPBT PT1000 temperature probe, IP44, 5X40 mm, 1.5 m
080G0211
Danfoss
Danfoss ACCPBT NTC temperature probe, IP67, 6X40 mm, 1.5 m
080G0212
Danfoss
Danfoss ACCSCS fan speed controller, 400 V AC, 8 A, MCX series
080G0217
Danfoss
Danfoss ACCSCS fan speed controller, 400 V AC, 12 A, MCX series
080G0218
Danfoss
Danfoss ACCSCS fan speed controller, 400 V AC, 20 A, MCX series
080G0219
Danfoss
Danfoss ACCSCS fan speed controller, 400 V AC, 28 A, MCX series
080G0220
Danfoss
Danfoss ACCTRD control transformer, 230/24 V AC, 12 VA, MCX series
080G0223
Technical guides
- Temperature Sensor Finder — Pt 100 / Pt 1000 / NTC / Thermocouple, Danfoss MBT 5250 / 5252 / 5560 / 3560 / 153, Siemens SITRANS TS500 by Insertion Length, Process Connection and Output
- Cross-Referencing Danfoss Refrigeration Components by IMPA and OEM Code
- Danfoss Product Code Decoder — 003Z, 013G, 017B, 023U, 027L, 032F, 060G, 060H, 065B, 065Z, 068Z, 084H, 132F, 148B Series (Complete Reference)
Catalogue entry last verified: 2026-09-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 080G0209?
- 080G0209 can be ordered from cballast.com as a Danfoss catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Danfoss product?
- The manufacturer part number is 080G0209.
- What is the HS code for 080G0209?
- The customs tariff (HS) code for 080G0209 is 9025.19.
- Who manufactures 080G0209?
- 080G0209 is a Danfoss product in the Sensors & Instrumentation range.
- Is a datasheet available for 080G0209?
- Yes — the 080G0209 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 080G0209?
- The minimum order quantity is 1.
- Is 080G0209 available?
- Yes — 080G0209 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
