Danfoss MMIGRS2 graphic control panel / remote display
Pricing
Request a quote
We reply within 24 hours
Product Description

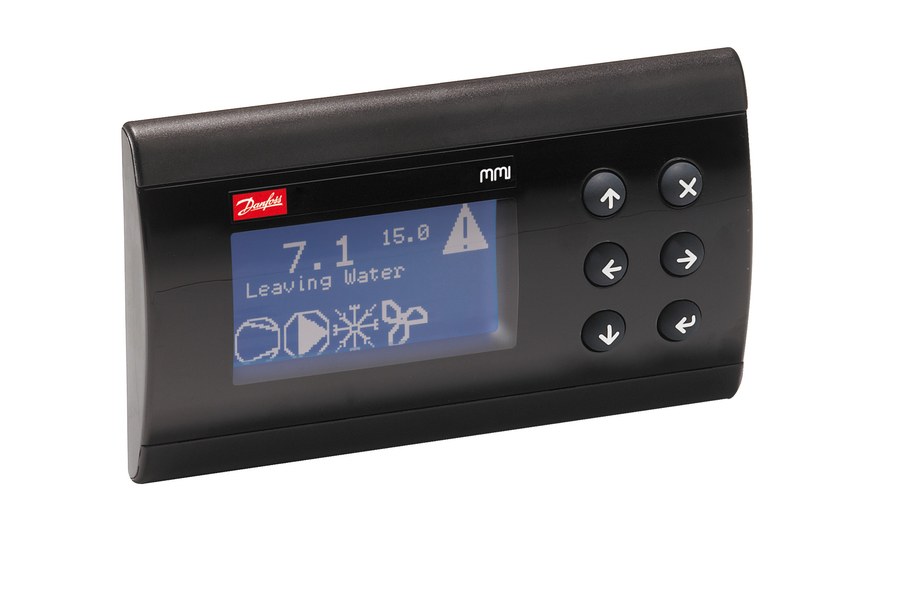

Danfoss MMIGRS2 graphic control panel for the MCX programmable-controller platform. Remote LCD operator display with buzzer, connected over CANbus. 24 V AC / 12 V DC supply, IP40, panel mount. Connector kit included. EAN 5702428848961.
Technical Specifications
- Type
- MMIGRS2 control panel
- Function
- Graphic remote operator display
- Supply voltage
- 24 V AC / 12 V DC
- Frequency
- 50/60 Hz
- Communication
- CANbus
- Display
- LCD
- Buzzer
- Included
- Real-time clock
- No
- Connector kit
- Included
- Enclosure rating
- IP40
- Power consumption
- 1.5 W
- Net weight
- 0.2 kg
- Approvals
- CE, CMIM, GOST R, UL
- Danfoss code
- 080G0295
- EAN
- 5702428848961
- Product group
- Programmable controllers
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes
- Communication type
- CANBUS
- Connector kit included
- Yes
- Display type
- LCD
- Division
- 25
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Enclosure rating IP
- IP40
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Frequency [Hz]
- 50/60 Hz
- In scope of WEEE
- Yes
- PFAS content [Yes/No]
- No
- Power consumption [W]
- 1.5 W
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Supply voltage [V] AC
- 24 V
- Supply voltage [V] DC
- 12 V
- Type designation
- MMIGRS2
- UL mark
- Yes
Standards & Compliance
- IP Rating
- IP40
- Classification / Approval
- CE, CMIM, GOST R, UL
- HS Code
- 9032.90
Compatibility & Fitment
Remote graphic operator display for Danfoss MCX / AK-PC controllers over CANbus (e.g. the external display for AK-PC 551 080G0282). Confirm the controller supports an MMIGRS2 CANbus display before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss MMITSS touch screen operator panel
080G0301
Danfoss
Danfoss MMITXS touch screen operator panel
080G0302
Danfoss

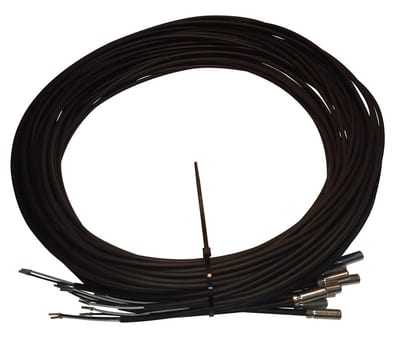

Danfoss ACCPBT NTC temperature probe, IP68, 6X20 mm, 3 m
080G0202
Danfoss

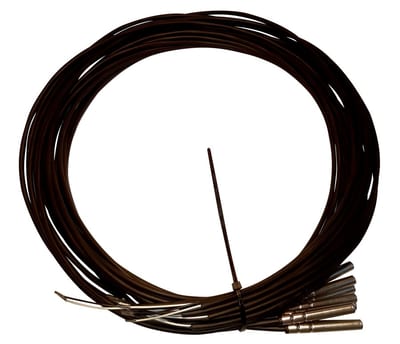

Danfoss ACCPBT NTC temperature probe, IP68, 6X40 mm, 1.5 m
080G0205
Danfoss
Danfoss ACCPBT NTC temperature probe, IP68, 6X40 mm, 3 m
080G0206
Danfoss
Danfoss ACCPBT NTC temperature probe, IP68, 6X40 mm, 6 m
080G0207
Danfoss
Danfoss ACCPBT PT1000 temperature probe, IP68, 6X40 mm, 1.5 m
080G0209
Danfoss

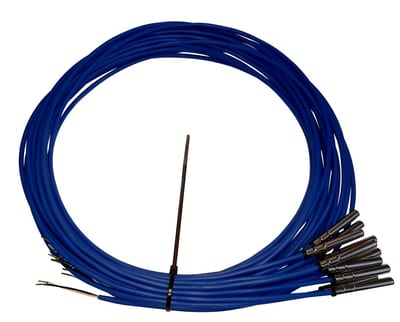

Danfoss ACCPBT PT1000 temperature probe, IP68, 6X40 mm, 6 m
