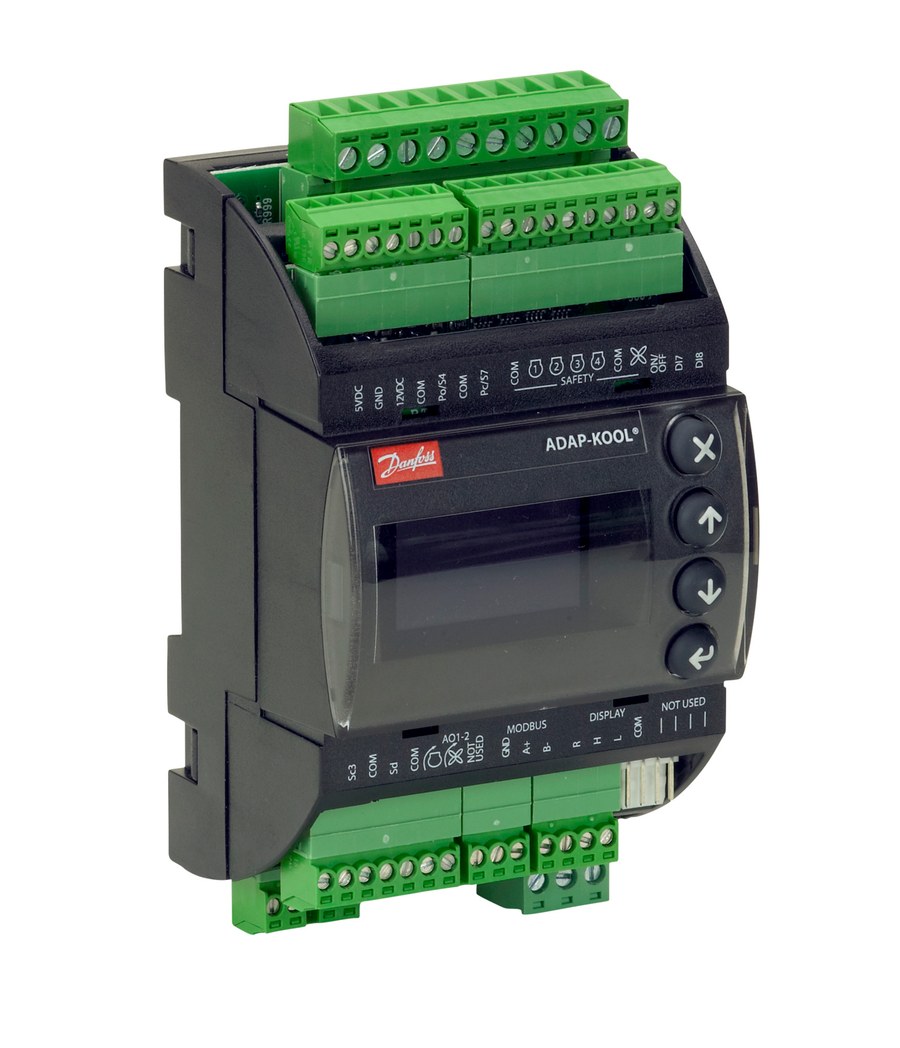

Danfoss AK-PC 351 pack controller, 1 suction + 1 condenser
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AK-PC 351 pack controller for refrigeration racks with one suction group and one condenser. Sequences up to four compressors with Step / Speed / PWM capacity control and Step / Speed fan control, with floating condenser pressure and night setback. 24 V AC/DC supply, Modbus communication, DIN-rail mount, built-in display. EAN 5702428843621.
Technical Specifications
- Type
- AK-PC 351 pack controller
- Function
- 1 Suction and 1 Condenser
- Supply voltage
- 24 V AC / 24 V DC
- Frequency
- 50/60 Hz
- Power consumption
- 6 W
- Compressor capacity mode
- Step / Speed / PWM
- Fan capacity control
- Step / Speed
- Number of compressors (max)
- 4 pc
- Digital inputs (DI)
- 8 pc
- Digital outputs (DO)
- 6 pc
- Analog inputs (AI)
- 4 pc
- Analog outputs (AO)
- 2 pc
- Communication
- Modbus
- Display
- Built-in
- Mounting
- DIN rail
- Battery
- Lithium coin cell CR1620
- Approvals
- CE, CMIM, EAC, GOST R, UL
- Danfoss code
- 080G0289
- EAN
- 5702428843621
- Net weight
- 0.248 Kilogram
- Product group
- Compressor/condenser control
- 1 Primary battery SUM weight Kg
- 0.001
- 1 Primary battery weight Kg
- 0.001
- Analog inputs (AI) [pc]
- 4 pc
- Analog outputs (AO) [pc]
- 2 pc
- Application area
- Capacity control
- Approval
- CE
- Battery qty
- 1
- Battery type or Name
- Lithium coin cell (CR1620)
- Capacity control input
- Pressure/ Temperature
- Capacity control mode
- PI
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Communication type
- MODBUS
- Condenser control type
- Pressure/ Temperature
- Digital inputs (DI) [pc]
- 8 pc
- Digital outputs (DO) [pc]
- 6 pc
- Display on front
- Yes
- Division
- 25
- Equipment
- Incl. Connectors
- EU RoHS compliance
- Out of scope
- Fan control mode
- PI
- Frequency [Hz]
- 50/60 Hz
- Further information
- Relay 6 solid state type
- Mounting method
- DIN rail
- Other RoHS documentation
- EAEU RoHS
- PFAS content [Yes/No]
- No
- Power consumption [W]
- 6 W
- Product features
- Compressor safety
- Product Language
- Croatian
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Supply voltage [V] AC
- 24 V
- Supply voltage [V] DC
- 24 V
- Type designation
- AK-PC 351
- UL mark
- Yes
Standards & Compliance
- Classification / Approval
- CE, CMIM, EAC, GOST R, UL
- HS Code
- 9032.89
Compatibility & Fitment
Pack controller for the Danfoss ADAP-KOOL / MCX platform, one suction group on one condenser (≤4 compressors). The two-suction sibling is the AK-PC 551 (080G0281 / 080G0282). Confirm rack layout before ordering.
