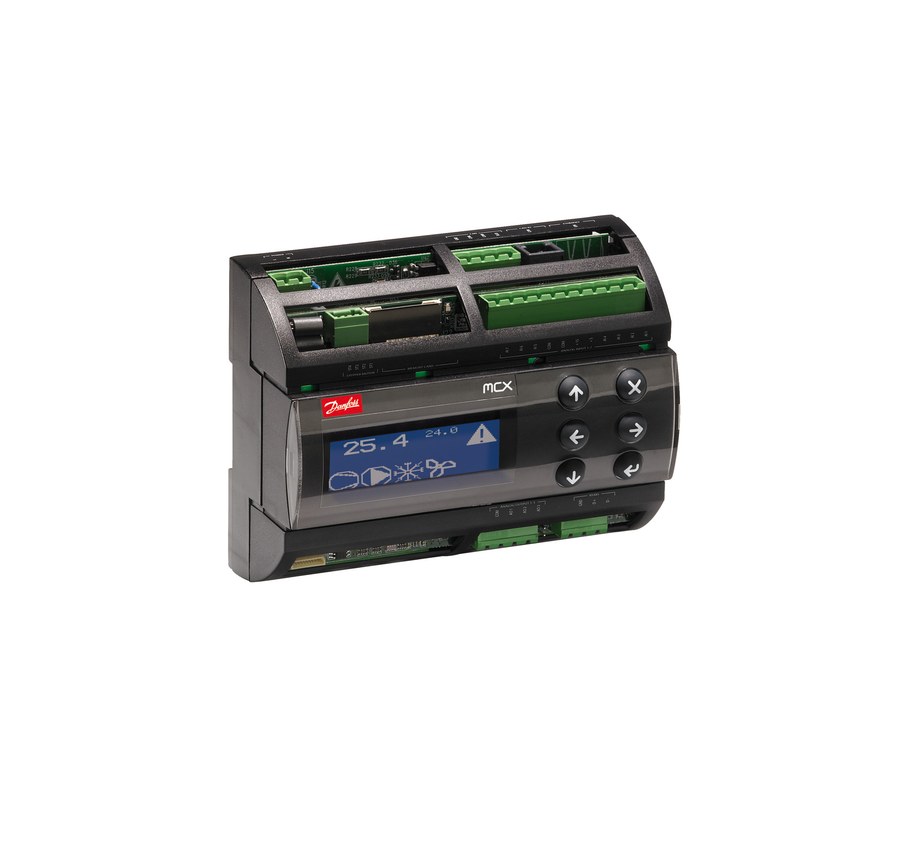

Danfoss MCX061V programmable controller, 6 relays, 110-230 V AC, LCD
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MCX061V programmable refrigeration controller with 6 relay outputs, 110-230 V AC supply and LCD display, for OEM refrigeration and HVAC applications on the MCX platform. CANbus / RS485 / Modbus communication. DIN-rail, IP40. EAN 5702428414388.
Technical Specifications
- Type
- MCX061V programmable controller
- Function
- Programmable controller, 6 relays
- Supply voltage
- 110-230 V AC
- Frequency
- 50/60 Hz
- Digital inputs (DI)
- 8 pc
- Digital outputs (DO)
- 6 relay
- Analog inputs (AI)
- 7 pc
- Analog outputs (AO)
- 3 pc
- Communication
- CANbus; RS485; Modbus
- Display
- LCD
- Enclosure rating
- IP40
- Mounting
- DIN rail
- Packing
- Single pack
- Approvals
- CE, GOST R, UL
- Danfoss code
- 080G0250
- EAN
- 5702428414388
- Net weight
- 0.38 Kilogram
- Product group
- Programmable controllers
- 1 Primary battery SUM weight Kg
- 0.001
- 1 Primary battery weight Kg
- 0.001
- Analog inputs (AI) [pc]
- 7 pc
- Analog outputs (AO) [pc]
- 3 pc
- Approval
- CE
- Battery qty
- 1
- Battery type or Name
- Lithium coin cell (CR1620)
- Buzzer
- No
- CE mark
- Yes
- China RoHS compliance
- Yes
- Communication type
- CANBUS
- Connector kit Code No.
- 080G0268
- Connector kit included
- Yes
- Digital inputs (DI) [pc]
- 8 pc
- Digital outputs (DO) [pc]
- 6 pc
- Display type
- LCD
- Division
- 25
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Enclosure rating IP
- IP40
- EU RoHS compliance
- Yes
- Frequency [Hz]
- 50/60 Hz
- Further information
- Backup battery input
- Identical product
- 080G0257
- In scope of WEEE
- Yes
- Mounting method
- DIN rail
- PFAS content [Yes/No]
- No
- Power consumption [W]
- 27 W
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Real time clock
- Yes
- Supply voltage [V] AC [max]
- 230 V
- Supply voltage [V] AC [min]
- 110 V
- Type designation
- MCX061V
- UL mark
- Yes
Standards & Compliance
- IP Rating
- IP40
- Classification / Approval
- CE, GOST R, UL
- HS Code
- 9032.89
Compatibility & Fitment
Freely programmable OEM controller on the Danfoss MCX platform, 6 relays, LCD, 110-230 V AC mains supply. The 24 V AC build is 080G0251 (and 080G0255 adds Ethernet). The 8-relay MCX08M2 is 080G0307 (110-230 V LCD); the 15-relay MCX152V is 080G0285 (110-230 V LCD). Matching connector kit is the ACCCNX MCX06D 080G0179. Requires MCX Shape / Design programming tools.
Product Documentation
More from Danfoss
Danfoss

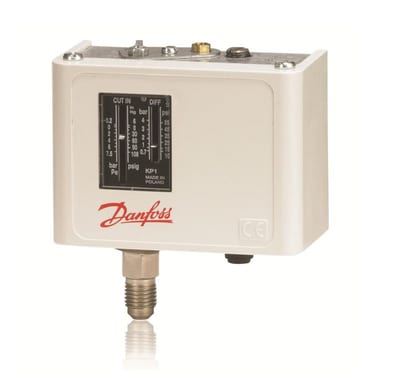

Danfoss KP2 low-pressure switch, 0.2 to 3.5 bar, auto reset, SPDT, G 1/4 in male
060-131866
Danfoss

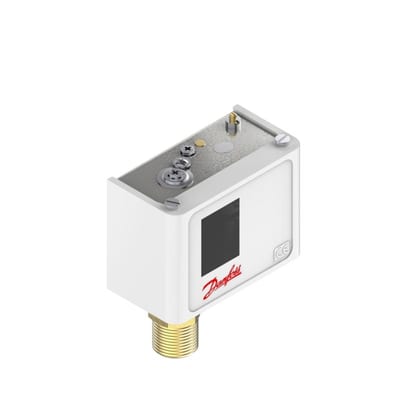

Danfoss KPI35 pressure switch, -0.2 to 8 bar, auto reset, SPDT, G 1/2 in male
060-132466
Danfoss

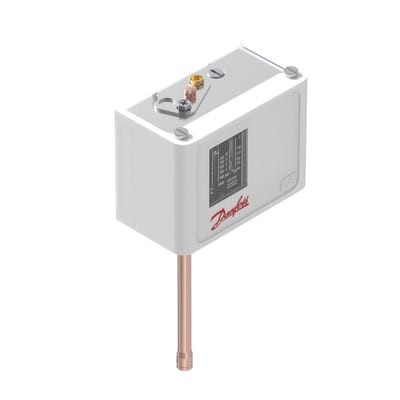

Danfoss KP7W high-pressure switch, 8 to 32 bar, auto reset, SPDT, 6 mm solder ODF
060-133366
Danfoss

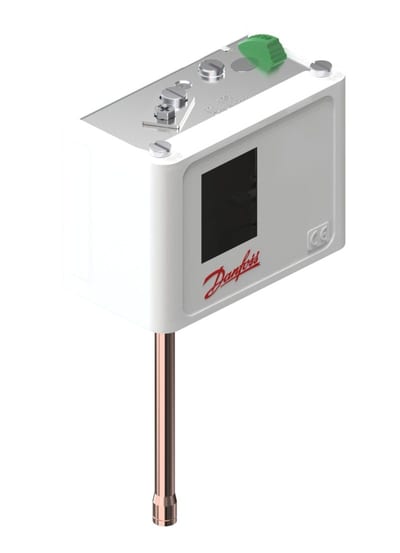

Danfoss KP5 high-pressure switch, 8 to 32 bar, manual (max) reset, SPDT, 6 mm solder ODF
060-133466
Danfoss

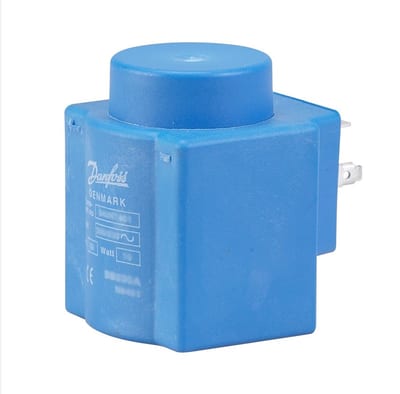

Danfoss BE024CS solenoid valve coil 24V AC 50/60Hz clip-on DIN-spade IP00
018F6077
Danfoss

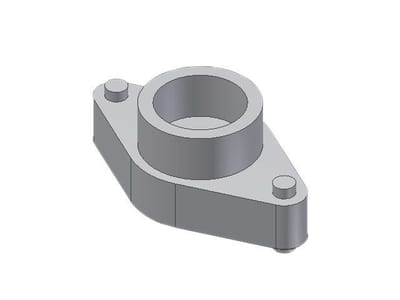

Danfoss weld flange set, DN20 (3/4 in), socket weld, ASME B16.11, steel, 2-Flange set (027N2001)
Danfoss

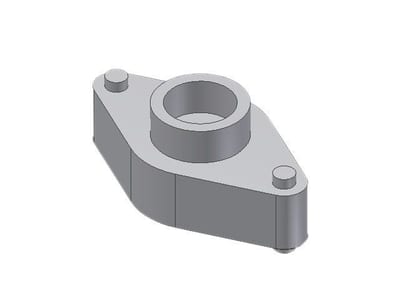

Danfoss weld flange set, DN25 (1 in), socket weld, ASME B16.11, steel, 2-Flange set (027N2002)
Danfoss

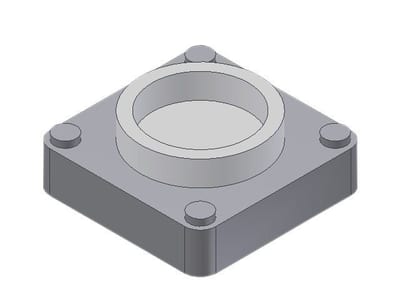

Danfoss weld flange set, DN50 (2 in), socket weld, ASME B16.11, steel, 2-Flange set
