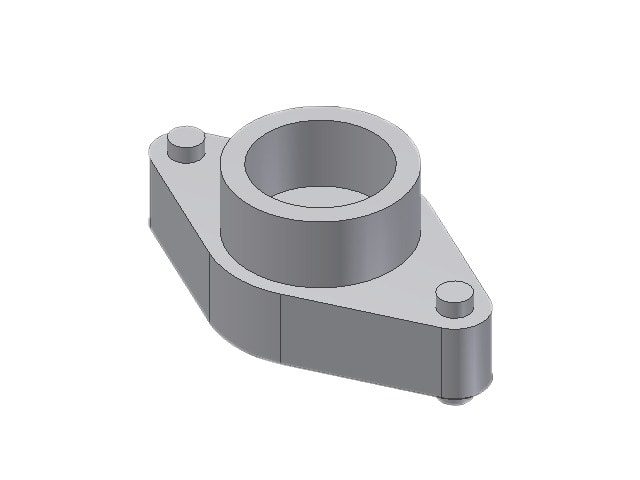

Danfoss weld flange set, DN20 (3/4 in), socket weld, ASME B16.11, steel, 2-Flange set (027N2001)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss flange set, code 027N2001: a pair of steel weld flanges (2 flanges per set) for connecting Danfoss industrial-refrigeration valves and line components to socket weld pipework. Nominal size DN20 (3/4 in). Flange type socket weld to ASME B16.11; oval flange form, tongue face, flange version 3.0. Fits: EVR 20-25, EVRA 20-25, FA 20, PM 5-25, PMC 5-20, PMFH 80, PMFL 80, TEA 85, TEAQ 85, TEAT 85, TEVA 85. Steel construction for ammonia (R717) and fluorinated-refrigerant service. Supplied as a set of two flanges.
Technical Specifications
- Type
- Weld flange set (2 flanges)
- Code number
- 027N2001
- Nominal size
- DN20 (3/4 in)
- Connection
- Socket weld
- Connection standard
- ASME B16.11
- Flange form
- Oval, tongue face
- Flange version
- 3.0
- Material
- Steel
- Compatible valves
- EVR 20-25, EVRA 20-25, FA 20, PM 5-25, PMC 5-20, PMFH 80, PMFL 80, TEA 85, TEAQ 85, TEAT 85, TEVA 85
- Net weight
- 0.907 kg (gross 0.936 kg)
- Packing
- 12 pc per pack
- EAN
- 5702428197069
- Product group
- Flanges
- China RoHS compliance
- Yes
- Connection size [in]
- 3/4 in
- Connection size [mm]
- 20 mm
- Connection type
- Socket weld
- EU RoHS compliance
- Yes
- Flange design
- Tongue
- Material Spec.
- Steel
- Parts included
- 2 flanges
- REACH Candidate List substances
- No
- Used for product
- EVR 20 - 25
Standards & Compliance
- Standard
- ASME B16.11
- Size / Series
- DN20 (3/4 in)
- Material
- Steel
- Thread Standard
- Socket weld, ASME B16.11
- HS Code
- 7307.91
Compatibility & Fitment
Connection set for: EVR 20-25, EVRA 20-25, FA 20, PM 5-25, PMC 5-20, PMFH 80, PMFL 80, TEA 85, TEAQ 85, TEAT 85, TEVA 85. Verify valve size, connection standard (ASME B16.11) and flange face before ordering; supplied as a set of two flanges.
