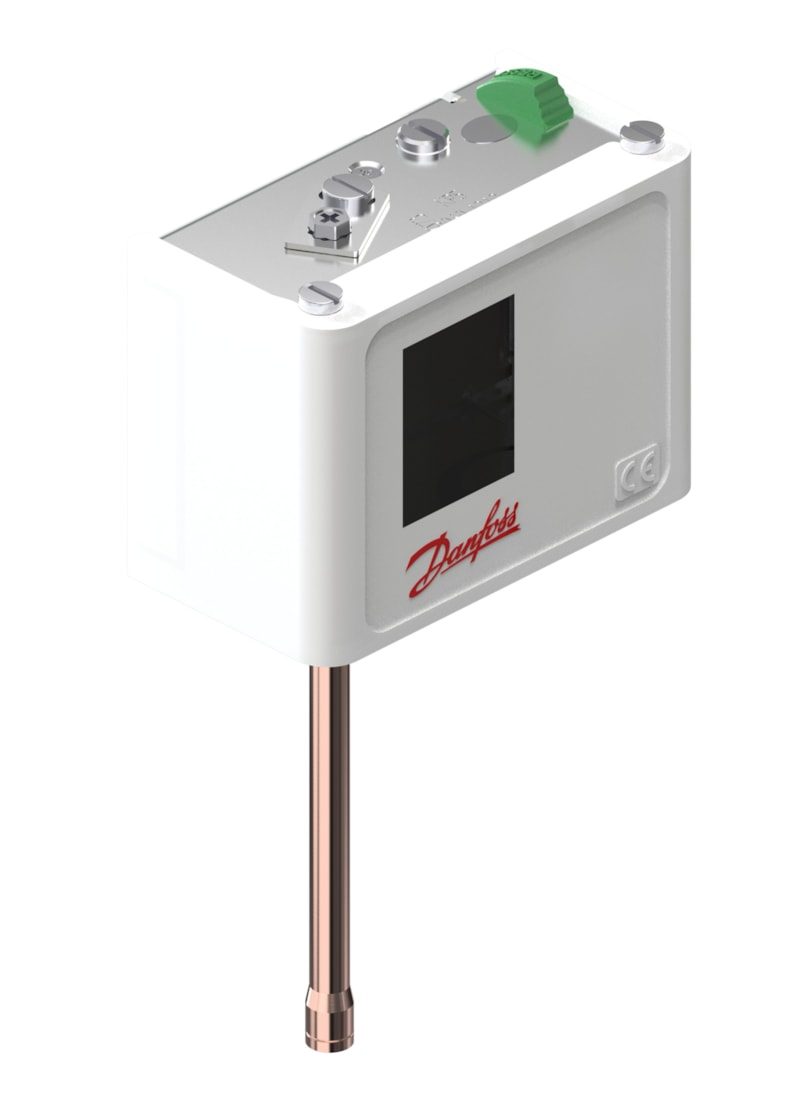

Danfoss KP5 high-pressure switch, 8 to 32 bar, manual (max) reset, SPDT, 6 mm solder ODF
Danfoss · Sensors & Instrumentation · Pressure Switches
Danfoss KP5 high-pressure switch, code 060-133466. Regulating range 8 to 32 bar, differential 3 bar, manual maximum (latching) reset, SPDT snap-action contact. 6 mm solder ODF (female) connection, IP30 enclosure, max test pressure 35 bar. High-discharge-pressure compressor safety cut-out; this variant has manual-max reset and a 6 mm solder connection, distinct from the 1/4 in solder/flare KP5 builds already catalogued. Carries wide marine classification approval.
Specifications
- Part number
- 060-133466
- HS code
- 9026.20
- Material
- Steel/zinc-plated housing; bellows pressure element
- Pressure rating
- max test 35 bar
- Temperature range
- -40 to +65 °C
- IP rating
- IP30
- Thread standard
- 6 mm solder ODF, female
Compatibility
High-pressure (HP) safety cut-out; manual-maximum reset LATCHES on a high-pressure trip and must be reset by hand — choose auto vs manual reset deliberately. The 6 mm solder connection distinguishes this code from the 1/4 in solder KP5 060-118066 and 1/4 in flare KP5 060-121291/060-121266. Verify reset type, connection size and pressure side before ordering.
Standards
- IEC 60529 (enclosure IP rating)
- EU RoHS
Approvals
