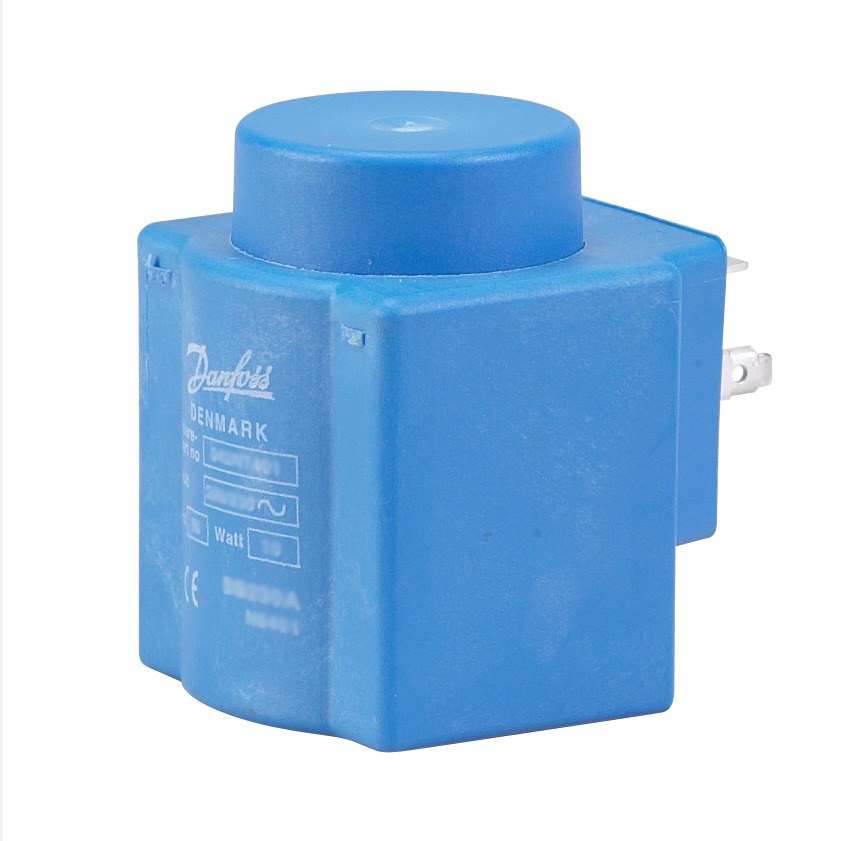

Danfoss BE024CS solenoid valve coil 24V AC 50/60Hz clip-on DIN-spade IP00
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss BE024CS clip-on solenoid coil, 24 V AC 50/60 Hz, DIN-spade termination (3 × 6.3 × 0.8 mm spades), IP00, Class H insulation. Encapsulated coil with 13.5 mm clip-on actuator for the EV-series valve range. OEM P/N 018F6077. Valve body ordered separately.
Technical Specifications
- Type
- BE024CS clip-on solenoid coil
- Supply
- 24 V AC
- Frequency
- 50/60 Hz
- Power
- 13 W (50 Hz) / 11 W (60 Hz); 24 VA (50 Hz) / 20 VA (60 Hz)
- Connection
- DIN spade, 3 × spades (6.3 mm × 0.8 mm)
- Enclosure
- IP00
- Insulation
- Class H to IEC 60085
- Ambient
- -40 to +80 °C
- Actuator size
- 13.5 mm, clip-on
- Duty
- continuous
- Design standard
- VDE 0580
- Packing
- multi-pack (50 pc)
- EAN
- 5702423162796
- Fits EV210B / EV212B / EV220B / EV222B / EV224B / EV227B / EV250B / EV251B-series solenoid valve bodies — verify valve series on the datasheet
- Voltage
- 24 V
Standards & Compliance
- Material
- Encapsulated coil, Class H insulation
- Temperature Range
- -40 to +80 °C
- IP Rating
- IP00
- HS Code
- 8505.90
Compatibility & Fitment
Clip-on coil — mounts on the EV-series valve actuator (13.5 mm) without tools. DIN-spade termination (bare coil, IP00 without a moulded connector). No prior BE024CS in catalogue (the 50 Hz build is BE024AS 018F6707, the 60 Hz build is BE024BS 018F6715). Verify valve series, supply voltage and connection type before ordering. Valve body ordered separately.
Product Documentation
More from Danfoss
Danfoss
Danfoss weld flange set, DN20 (3/4 in), socket weld, ASME B16.11, steel, 2-Flange set (027N2001)
Danfoss
Danfoss weld flange set, DN25 (1 in), socket weld, ASME B16.11, steel, 2-Flange set (027N2002)
Danfoss
Danfoss weld flange set, DN50 (2 in), socket weld, ASME B16.11, steel, 2-Flange set
027N2005
Danfoss
Danfoss weld flange set, DN10 (3/8 in), socket weld, ASME B16.11, steel, 2-Flange set
027N2010
Danfoss

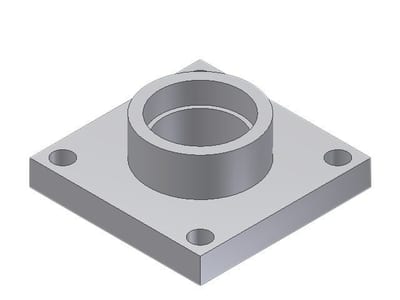

Danfoss weld flange set, DN40 (1 1/2 in), socket weld, ASME B16.11, steel, 2-Flange set
027N2015
Danfoss

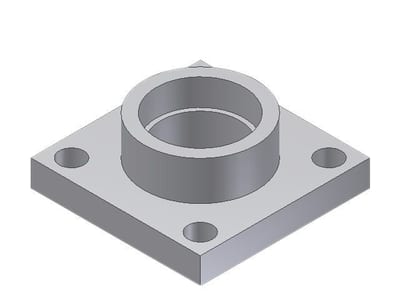

Danfoss weld flange set, DN32 (1 1/4 in), socket weld, ASME B16.11, steel, 2-Flange set (027N2016)
Danfoss

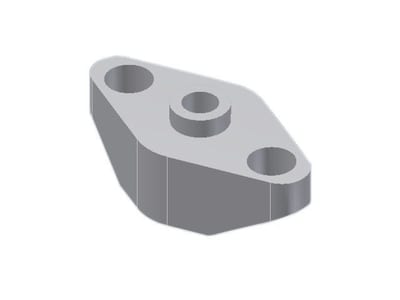

Danfoss weld flange set, DN10 (3/8 in), butt weld, ASME B36.10M Schedule 80, steel, 2-Flange set
027N2020
Danfoss

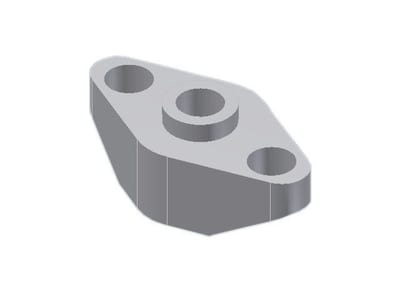

Danfoss weld flange set, DN15 (1/2 in), butt weld, ASME B36.10M Schedule 80, steel, 2-Flange set
027N2021
Technical guides
- Cross-Referencing Danfoss Refrigeration Components by IMPA and OEM Code
- Danfoss Product Code Decoder — 003Z, 013G, 017B, 023U, 027L, 032F, 060G, 060H, 065B, 065Z, 068Z, 084H, 132F, 148B Series (Complete Reference)
- Danfoss Maneurop MTZ Reciprocating Compressors — Model Range, Voltage Codes and Replacement Guide
Catalogue entry last verified: 2026-08-20. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 018F6077?
- 018F6077 can be ordered from cballast.com as a Danfoss catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Danfoss product?
- The manufacturer part number is 018F6077.
- What is the HS code for 018F6077?
- The customs tariff (HS) code for 018F6077 is 8505.90.
- Who manufactures 018F6077?
- 018F6077 is a Danfoss product in the HVAC & Refrigeration range.
- Is a datasheet available for 018F6077?
- Yes — the 018F6077 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 018F6077?
- The minimum order quantity is 1.
- Is 018F6077 available?
- Yes — 018F6077 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
