Danfoss KP2 low-pressure switch, 0.2 to 3.5 bar, auto reset, SPDT, G 1/4 in male
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KP2 low-pressure switch, code 060-131866. Regulating range 0.2 to 3.5 bar, differential 0.3-1 bar, automatic reset, SPDT snap-action contact. G 1/4 in (ISO 228-1) male connection, IP30 enclosure, max working pressure 10 bar. Low-pressure control for air, water and neutral-gas duties as well as refrigeration; carries wide marine classification approval.
Technical Specifications
- Type
- KP2 low-pressure switch
- Code number
- 060-131866
- Regulating range
- 0.2 to 3.5 bar
- Differential
- 0.3-1 bar
- Reset
- automatic
- Contact system
- SPDT (single-pole double-throw)
- Contact load
- AC-15 10 A/400 V; AC-1/AC-3 16 A/400 V; DC-13 12 W/220 V; LR 112 A/400 V
- Connection
- G 1/4 in (ISO 228-1), male
- Max working pressure
- 10 bar
- Enclosure
- IP30
- Ambient temperature
- -40 to +65 °C
- Approvals
- BV, DNV, GL, LR, RINA, RMRS, CCC, CE, CMIM, EAC, UL
- EAN
- 5702428279406
- Net weight
- 0.262 Kilogram
- Product group
- Switches and thermostats
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Ambient temperature range [°C] [max]
- 65 °C
- Ambient temperature range [°C] [min]
- -25 °C
- Ambient temperature range [°F] [max]
- 149 °F
- Ambient temperature range [°F] [min]
- -13 °F
- Application note
- Not applicable for liquid line
- Approval
- BV
- CE mark
- Yes
- China RoHS compliance
- Yes
- Contact function
- SPDT
- Contact rating
- AC15=10 A, 400 V
- Differential [bar] [max]
- 1 bar
- Differential [bar] [min]
- 0.3 bar
- Differential [psi] [max]
- 14.5 psi
- Differential [psi] [min]
- 4.5 psi
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Rubber cable gland
- Electrical connection size
- 6-14 mm
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2
- Enclosure rating IP
- IP30
- Enclosure rating Nema (~)
- 1
- EU RoHS compliance
- Yes
- Fluid Group
- 1
- In scope of WEEE
- Yes
- Lubricants compatibility
- Oilfree applications
- Max. test pressure [bar] Pe
- 12 bar
- Max. test pressure [psig]
- 174 psig
- Max. Working Pressure [bar]
- 10 bar
- Max. Working Pressure [psig]
- 145 psig
- Oil free refrigerants
- R134a
- PED category
- IV
- Pressure connection size
- 1/4
- Pressure connection standard
- ISO 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure sensing element
- Bellows
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R113
- Regulation range [bar] Pe [max]
- 3.5 bar
- Regulation range [bar] Pe [min]
- 0.2 bar
- Regulation range [psig] Pe [max]
- 51 psig
- Regulation range [psig] Pe [min]
- 3 psig
- Reset function
- Auto
- UL approval file name
- E31024
- UL approved refrigerants
- R113
- UL mark
- Yes
Standards & Compliance
- Material
- Steel/zinc-plated housing; bellows pressure element
- Thread Standard
- G 1/4 in (ISO 228-1) male
- Pressure Rating
- max working 10 bar
- Temperature Range
- -40 to +65 °C
- IP Rating
- IP30
- HS Code
- 9026.20
Compatibility & Fitment
General low-pressure control (air/water/neutral gases and refrigeration). Automatic reset. No prior KP2 in catalogue. Verify regulating range, differential and connection thread before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss KPI35 pressure switch, -0.2 to 8 bar, auto reset, SPDT, G 1/2 in male
060-132466
Danfoss
Danfoss KP7W high-pressure switch, 8 to 32 bar, auto reset, SPDT, 6 mm solder ODF
060-133366
Danfoss
Danfoss KP5 high-pressure switch, 8 to 32 bar, manual (max) reset, SPDT, 6 mm solder ODF
060-133466
Danfoss
Danfoss BE024CS solenoid valve coil 24V AC 50/60Hz clip-on DIN-spade IP00
018F6077
Danfoss
Danfoss weld flange set, DN20 (3/4 in), socket weld, ASME B16.11, steel, 2-Flange set (027N2001)
Danfoss
Danfoss weld flange set, DN25 (1 in), socket weld, ASME B16.11, steel, 2-Flange set (027N2002)
Danfoss
Danfoss weld flange set, DN50 (2 in), socket weld, ASME B16.11, steel, 2-Flange set
027N2005
Danfoss

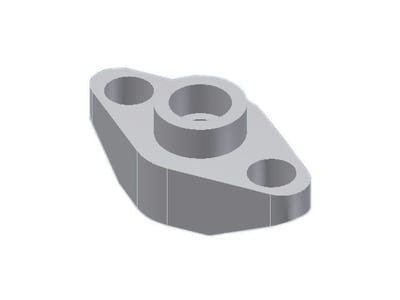

Danfoss weld flange set, DN10 (3/8 in), socket weld, ASME B16.11, steel, 2-Flange set
