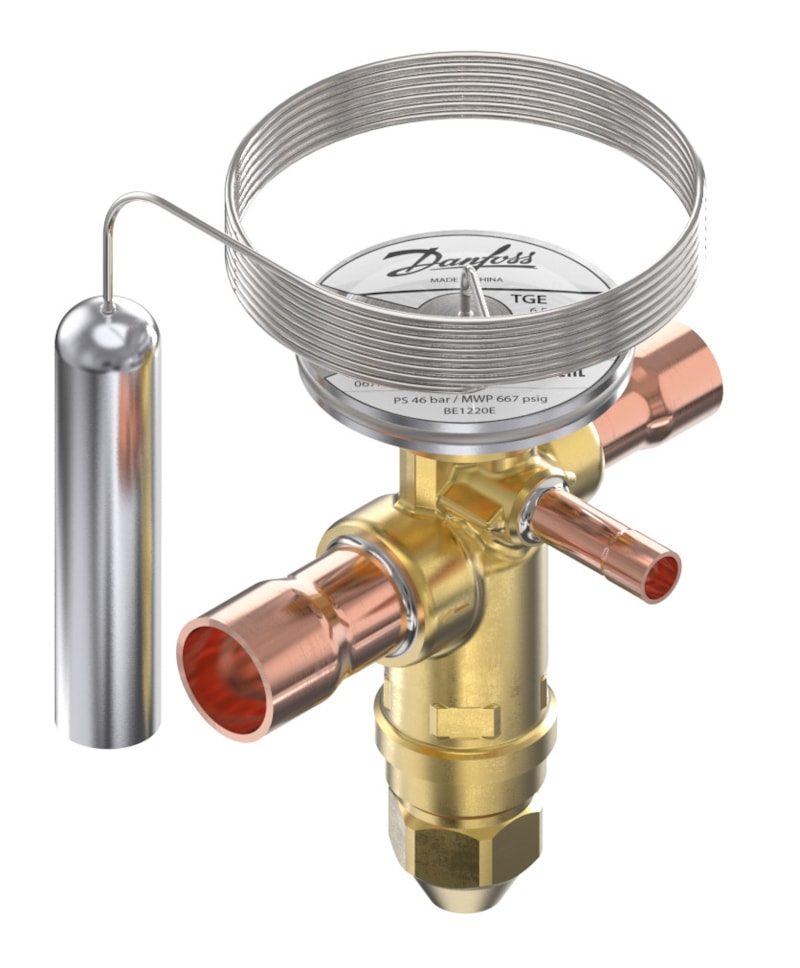

Danfoss TGE thermostatic expansion valve, R134A/R513A, 22 mm x 28 mm solder odf 067N5083
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss TGE thermostatic expansion valve, OEM P/N 067N5083. Externally equalized, balanced-port, bi-flow (straightway) design with adjustable superheat. Refrigerant R134a/R513A. Orifice assembly size 30. Nominal capacity 70 kW (20 TR) at the standard rating condition. Evaporating temperature range -10 to 15 °C. Inlet 22 mm, outlet 28 mm, external equalizer 6 mm, all Solder ODF. Static superheat 4 °C (adjustable). MOP 70 psig at 20 °C. Max working pressure 49 bar (711 psig). Brass body, copper connections; 3000 mm capillary tube with bulb strap. PED Art. 4 par. 3. EAN 5702428324168.
Technical Specifications
- Brand
- Danfoss
- Part number
- 067N5083
- Type
- TGE (externally equalized, balanced port, bi-flow)
- Category
- Expansion valves — thermostatic
- Refrigerant
- R134a/R513A
- Nominal capacity
- 70 kW (20 TR)
- Orifice size
- 30
- Pressure equalization
- Externally equalized
- Inlet connection
- 22 mm, Solder ODF
- Outlet connection
- 28 mm, Solder ODF
- External equalizer connection
- 6 mm, Solder ODF
- Static superheat
- 4 °C, adjustable
- MOP 70 psig at 20 °C
- Evaporating temperature range
- -10 to 15 °C
- Max working pressure
- 49 bar (711 psig)
- Body material
- Brass
- Connection material
- Copper
- Capillary tube
- 3000 mm with bulb strap
- PED category
- Art. 4, par. 3
- EAN
- 5702428324168
- Approvals
- UL (C UL US), EAC
Standards & Compliance
- Size / Series
- 22 mm x 28 mm
- Material
- Brass body, copper connections
- Pressure Rating
- 49 bar (711 psig) max working pressure
- Temperature Range
- -10 to 15 °C (evaporating)
- Classification / Approval
- UL (C UL US), EAC
- HS Code
- 8481.80
Compatibility & Fitment
Rated for R134a/R513A. Select orifice/capacity to the evaporator load and rating condition per the TGE data sheet before ordering.
