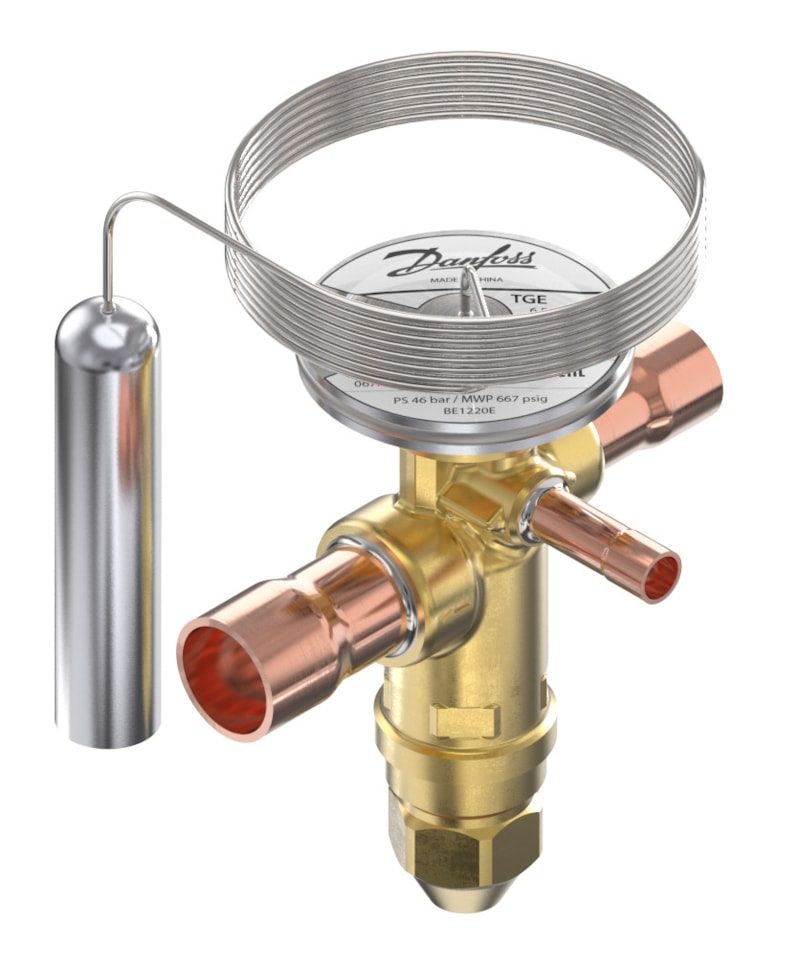

Danfoss 067N2003 TGE thermostatic expansion valve, R22/R407C, 1/2 in x 5/8 in solder odf
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss TGE thermostatic expansion valve, OEM P/N 067N2003. Externally equalized, balanced-port, bi-flow (straightway) design with adjustable superheat. Refrigerant R22/R407C. Orifice assembly size 6. Nominal capacity 20 kW (6 TR) at the standard rating condition. Evaporating temperature range -25 to 10 °C. Inlet 1/2 in, outlet 5/8 in, external equalizer 1/4 in, all Solder ODF. Static superheat 4 °C (adjustable). MOP 100 psig at 15 °C. Max working pressure 49 bar (711 psig). Brass body; copper connections; 1500 mm capillary tube with bulb strap. PED Art. 4 par. 3. EAN 5702428137881.
Specifications
- Part number
- 067N2003
- HS code
- 8481.80
- Material
- Brass body, copper connections
- Pressure rating
- 49 bar (711 psig) max working pressure
- Temperature range
- -25 to 10 °C (evaporating)
- Standard size
- 1/2 in x 5/8 in
Compatibility
Rated for R22/R407C. Select orifice/capacity to the evaporator load and rating condition per the TGE data sheet before ordering.
Approvals
