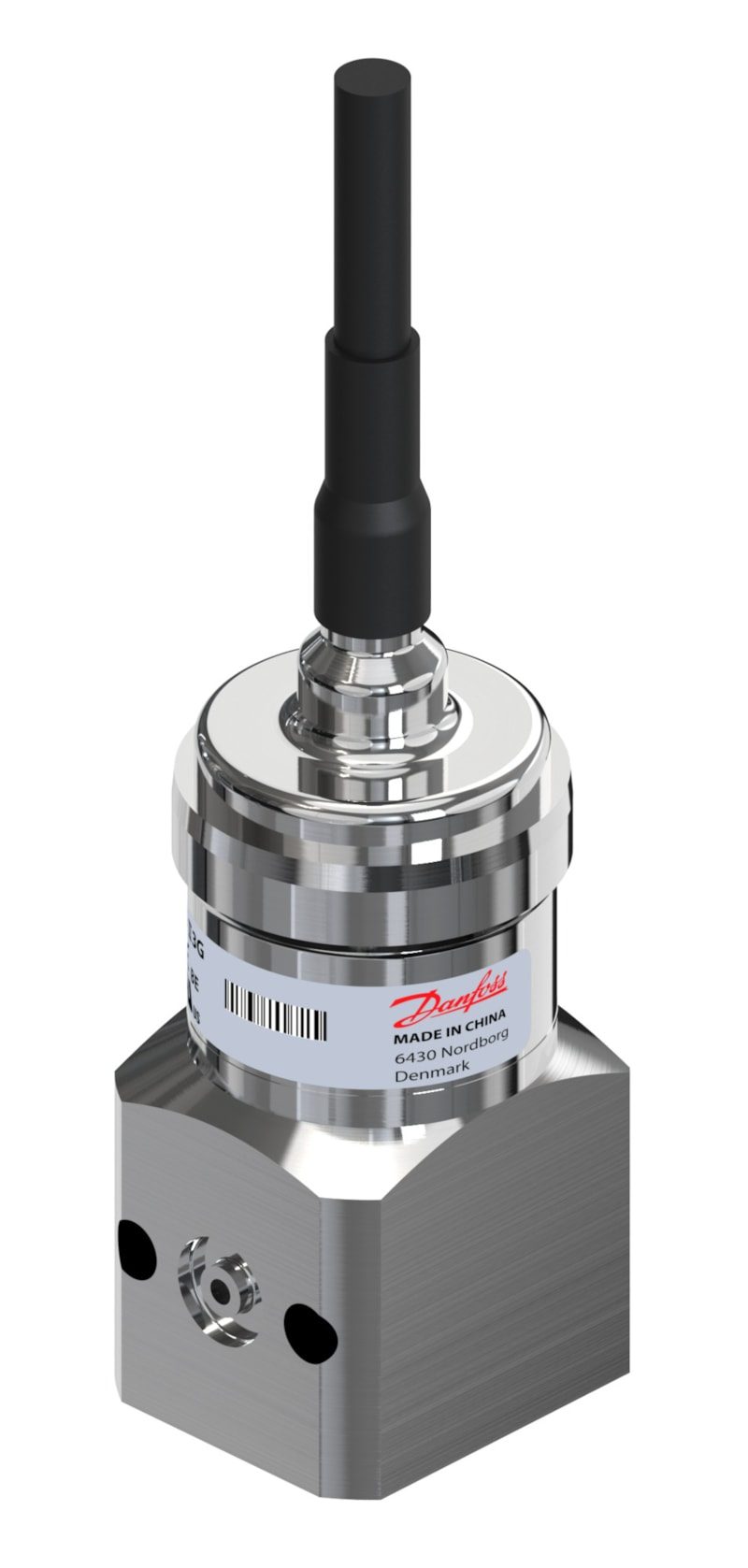

Danfoss MBS 3350 Pressure Transmitter 0-10 bar Flange, Port Ø2.5 (060G6657)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3350 pressure transmitter, genuine OEM code 060G6657. Measuring range 0 to 10 bar (0 to 145 psi), 4-20 mA (2-wire) output, AISI 316L stainless steel wetted parts. Flange, Port Ø2.5 pressure connection; Cable. Reference gauge (relative), enclosure IP67. ATEX Ex ec IIA T4 Gc; CE; UL Recognized; C UL US. P/N 060G6657; EAN 5702428005661.
Specifications
- Part number
- 060G6657
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0 to 10 bar (0 to 145 psi)
- Temperature range
- -40 to +125 C (medium)
- IP rating
- IP67
- Thread standard
- Flange, Port Ø2.5
Compatibility
MBS 3350 0-10 bar gauge, Ø2.5 flush flange with cable outlet.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
