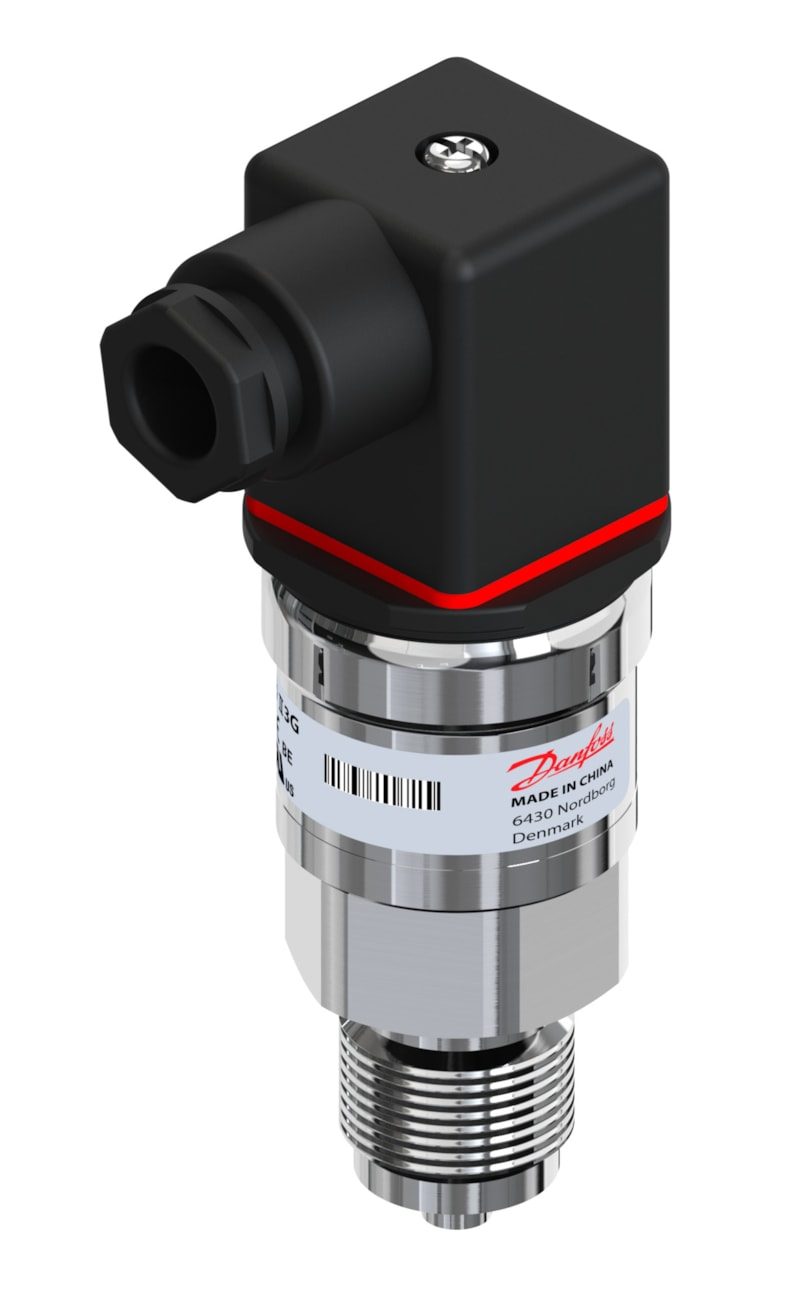

Danfoss MBS 3200 Pressure Transmitter 0-16 bar M 20 x 1.5
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBS 3200 pressure transmitter, genuine OEM code 060G6685. Measuring range 0 to 16 bar (0 to 232 psi), 4-20 mA (2-wire) output, AISI 316L stainless steel wetted parts. M 20 x 1.5 (EN 837) pressure connection; Angular connector (EN 175301-803-A, Pg 9). Reference gauge (relative), enclosure IP65. ATEX Ex ec IIA T4 Gc; CE; UL Recognized; C UL US.; EAN 5702428044653.
Technical Specifications
- Type
- MBS 3200
- Range
- 0 to 16 bar (0 to 232 psi)
- Reference
- gauge (relative)
- Output
- 4-20 mA (2-wire)
- Supply
- 9-32 V DC
- Wetted parts
- AISI 316L stainless steel
- Pressure connection
- M 20 x 1.5 (EN 837)
- Electrical connection
- Angular connector (EN 175301-803-A, Pg 9)
- Enclosure
- IP65
- Accuracy
- 0.5% FS typical, 1% FS max
- Specification key
- MBS 3200-2211-A1CD07-0
- Approvals
- ATEX Ex ec IIA T4 Gc; CE; UL Recognized; C UL US
- EAN
- 5702428044653
- Part number
- 060G6685
- Net weight
- 0.183 Kilogram
- Product group
- Sensors
- + supply
- Pin 1
- - supply
- Pin 2
- Accuracy, max. [±FS%]
- 1 %
- Accuracy, typical [±FS%]
- 0.5 %
- Adj. zero point and span
- No
- Ambient temperature range [°C] [max]
- 100 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 212 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- ATEX
- Approval comments
- ATEX Ex ec IIA T4 Gc
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Compensated temp. range [°C] [max]
- 100 °C
- Compensated temp. range [°C] [min]
- 0 °C
- Compensated temp. range [°F] [max]
- 212 °F
- Compensated temp. range [°F] [min]
- 32 °F
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Male and Female
- Electrical connection size
- Pg 9
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flush diaphragm
- No
- High Clipping Level
- 22.4
- In scope of WEEE
- Yes
- International Article Number
- 5702428044653
- Intrinsically safe
- No
- Low Clipping level
- 3.6
- Medium temperature range [°C] [max]
- 125 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 257 °F
- Medium temperature range [°F] [min]
- -40 °F
- Non-linearity BFSL [±FS%]
- 0.2 %
- Output signal
- Current
- Output signal [mA] [max]
- 20 mA
- Output signal [mA] [min]
- 4 mA
- Overload pressure max. [bar]
- 96 bar
- Pressure connection HEX [mm]
- 27 mm
- Pressure connection size
- 20 x 1.5
- Pressure connection standard
- EN 837
- Pressure connection type
- M
- Pressure Male/Female
- Male
- Pressure range [bar] [max]
- 16 bar
- Pressure range [bar] [min]
- 0 bar
- Pressure range [psi] [max]
- 232 psi
- Pressure range [psi] [min]
- 0 psi
- Pressure reference
- Gauge (relative)
- Pulse-snubber
- No
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Response time max. [ms]
- 4 ms
- Supply voltage [V] DC [max]
- 32 V
- Supply voltage [V] DC [min]
- 9 V
- UL mark
- Yes
Standards & Compliance
- Material
- AISI 316L stainless steel wetted parts
- Thread Standard
- M 20 x 1.5 (EN 837)
- Pressure Rating
- 0 to 16 bar (0 to 232 psi)
- Temperature Range
- -40 to +125 C (medium)
- IP Rating
- IP65
- Classification / Approval
- ATEX Ex ec IIA T4 Gc; CE; UL Recognized; C UL US
- HS Code
- 9026.20
Compatibility & Fitment
MBS 3200 Mobile/off-highway transmitter, 0-16 bar gauge, M20x1.5 EN 837 port with Pg 9 angular connector.
