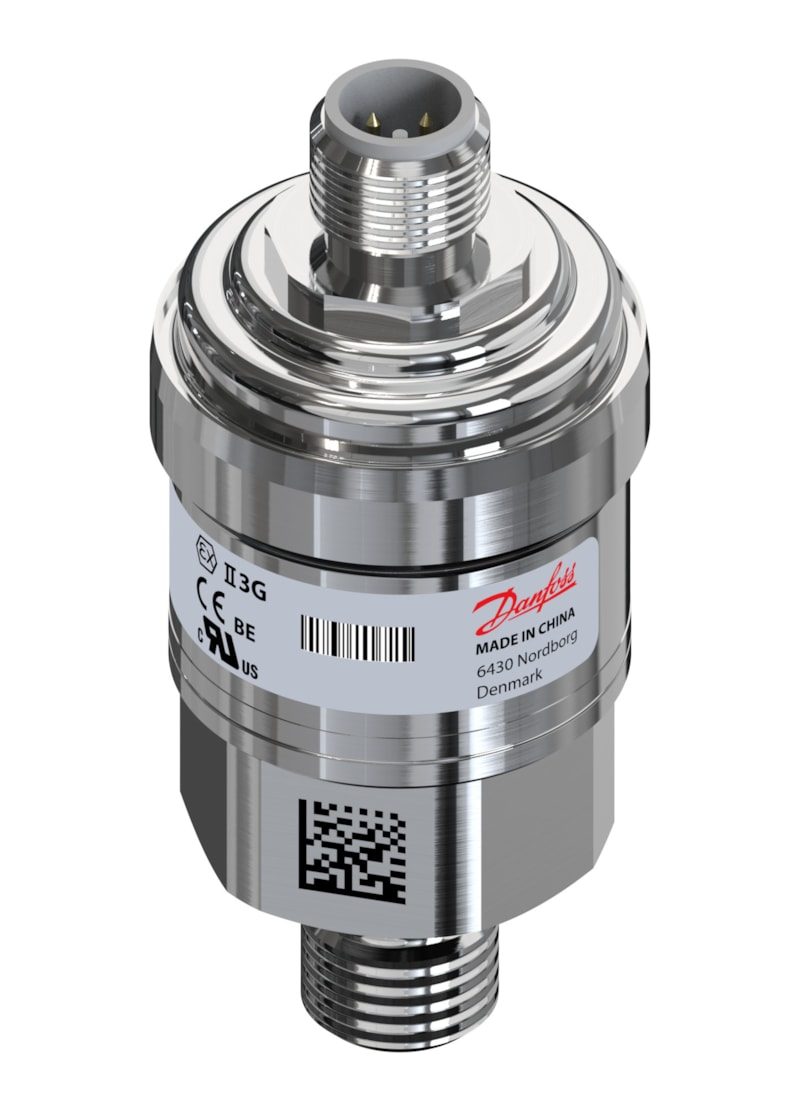

Danfoss MBS 3000 Pressure Transmitter 0-4 bar G 1/4 male

Danfoss MBS 3000 pressure transmitter, genuine OEM code 060G6688. Measuring range 0 to 4 bar (0 to 58 psi), 4-20 mA (2-wire) output, AISI 316L stainless steel wetted parts. G 1/4 male (DIN 3852-E, ISO 1179-2 Form E) pressure connection; M12 x 1 (4-pin, male). Reference sealed gauge, enclosure IP67. ATEX Ex ec IIA T4 Gc; CE; UL Recognized; C UL US.; EAN 5702428045193.

Type

MBS 3000

Range

0 to 4 bar (0 to 58 psi)

Reference

sealed gauge

Output

4-20 mA (2-wire)

Supply

9-32 V DC

Wetted parts

AISI 316L stainless steel

Pressure connection

G 1/4 male (DIN 3852-E, ISO 1179-2 Form E)

Electrical connection

M12 x 1 (4-pin, male)

Enclosure

IP67

Accuracy

0.5% FS typical, 1% FS max

Overload pressure

24 bar (348 psi)

Specification key

MBS 3000-1631-E3GB04-2

Approvals

ATEX Ex ec IIA T4 Gc; CE; UL Recognized; C UL US

EAN

5702428045193

Part number

060G6688

Net weight

0.135 Kilogram

Product group

Sensors

+ supply

Pin 1

- supply

Pin 2

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Adj. zero point and span

No

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-25 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-13 °F

Approval

C UL US UL Recognized

CE mark

Yes

China RoHS compliance

Out of scope

Comments

PIN 4: GROUND

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male

Electrical connection size

4 pin

Electrical connection standard

IEC 61076-2-101

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flush diaphragm

No

High Clipping Level

22.4

In scope of WEEE

Yes

International Article Number

5702428045193

Intrinsically safe

No

Low Clipping level

3.6

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.5 %

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

24 bar

Overload pressure max. [psi]

348 psi

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4

Pressure connection standard

DIN 3852-E

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

4 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

58 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Sealed gauge

Pulse-snubber

No

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

UL mark

Yes

Material

AISI 316L stainless steel wetted parts

Thread Standard

G 1/4 male (DIN 3852-E, ISO 1179-2 Form E)

Pressure Rating

0 to 4 bar (0 to 58 psi)

Temperature Range

-40 to +125 C (medium)

IP Rating

IP67

Classification / Approval

ATEX Ex ec IIA T4 Gc; CE; UL Recognized; C UL US

HS Code

9026.20
