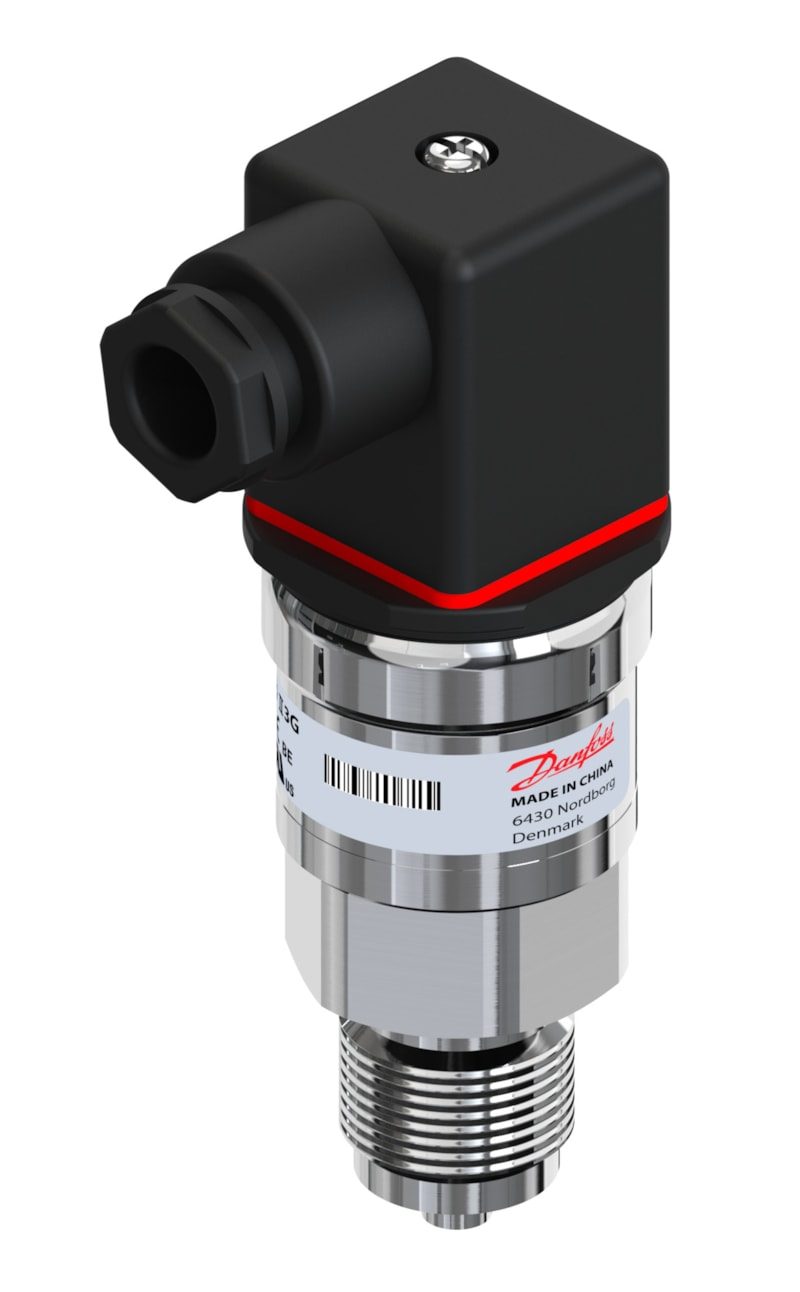

Danfoss MBS 3200 Pressure Transmitter 0-25 bar M 20 x 1.5 (060G6686)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3200 pressure transmitter, genuine OEM code 060G6686. Measuring range 0 to 25 bar (0 to 362.5 psi), 4-20 mA (2-wire) output, AISI 316L stainless steel wetted parts. M 20 x 1.5 (EN 837) pressure connection; Angular connector (EN 175301-803-A, Pg 9). Reference gauge (relative), enclosure IP65. ATEX Ex ec IIA T4 Gc; CE; UL Recognized; C UL US. P/N 060G6686; EAN 5702428044660.
Specifications
- Part number
- 060G6686
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0 to 25 bar (0 to 362.5 psi)
- Temperature range
- -40 to +125 C (medium)
- IP rating
- IP65
- Thread standard
- M 20 x 1.5 (EN 837)
Compatibility
MBS 3200 Mobile/off-highway transmitter, 0-25 bar gauge, M20x1.5 EN 837 port with Pg 9 angular connector.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
