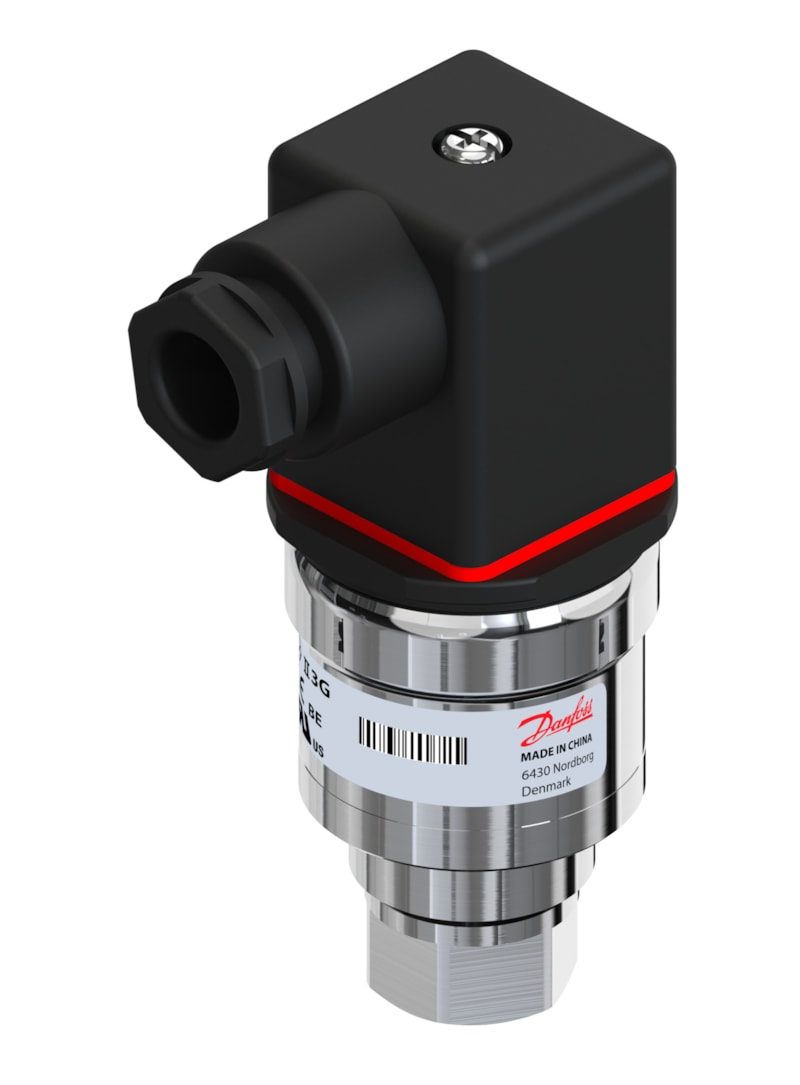

Danfoss AKS 3000 Pressure Transmitter 0-40 bar UNF 7/16-20 (060G6667)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss AKS 3000 pressure transmitter, genuine OEM code 060G6667. Measuring range 0 to 40 bar (0 to 580 psi), 4-20 mA (2-wire) output, AISI 316L stainless steel wetted parts. UNF 7/16-20 pressure connection; Angular connector, Pg 9. Reference sealed gauge, enclosure IP65. ATEX Ex ec IIA T4 Gc; CE; UL Recognized; C UL US. P/N 060G6667; EAN 5702428516921.
Specifications
- Part number
- 060G6667
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0 to 40 bar (0 to 580 psi)
- Temperature range
- -40 to +85 C (medium)
- IP rating
- IP65
- Thread standard
- UNF 7/16-20
Compatibility
AKS 3000 Refrigeration transmitter, 0-40 bar sealed gauge, UNF 7/16-20 flare with Pg 9 angular connector.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
