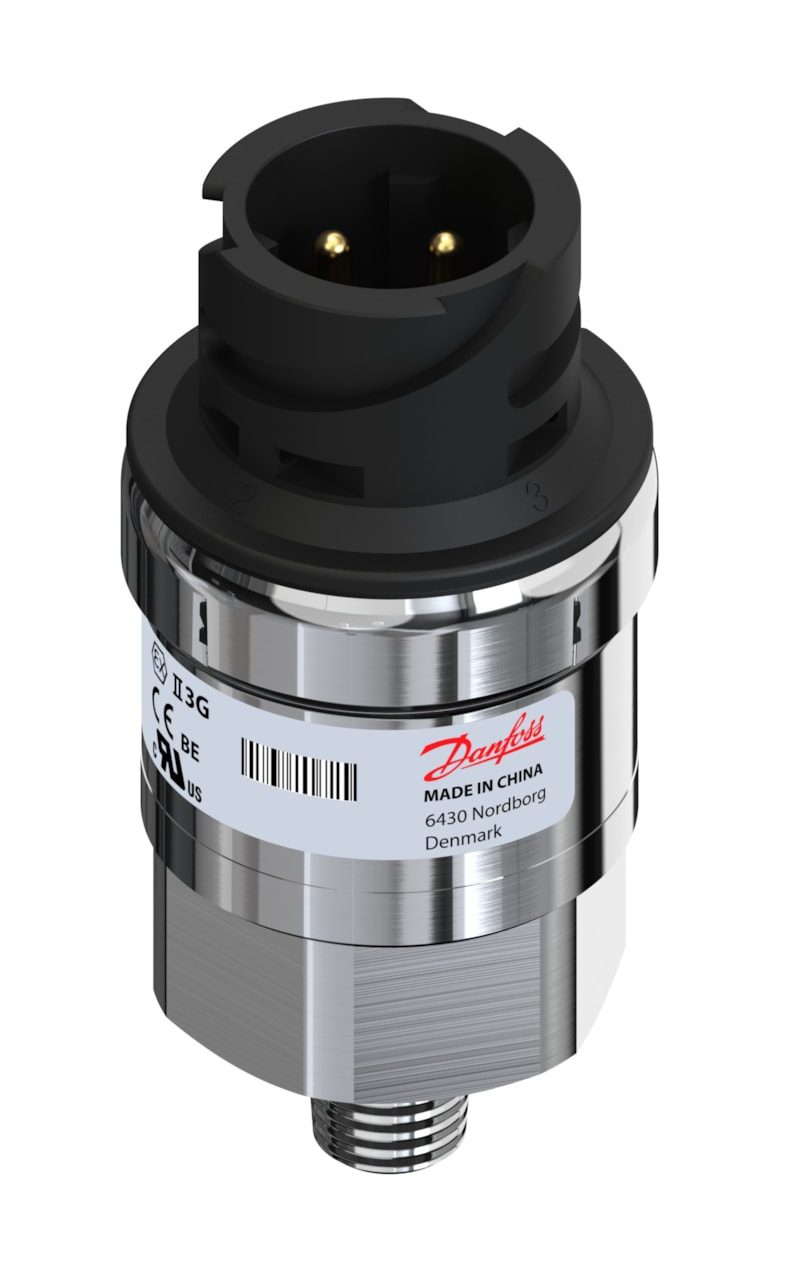

Danfoss MBS 3200 Pressure Transmitter 0-5 bar NPT Bayonet
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBS 3200 pressure transmitter, genuine OEM code 060G6285. Measuring range 0 to 5 bar (0 to 72.5 psi), Ratiometric (0.5-4.5 V, 3-wire) output, AISI 316L stainless steel wetted parts. 1/8-27 NPT (ANSI/ASME B1.20.1) pressure connection; Bayonet male (3-pin, ISO 15170). Reference absolute, enclosure IP67. CE / UL / C UL US / EAC (GOST) / RoHS; EAN 5702428848688.
Technical Specifications
- Type
- MBS 3200
- Range
- 0 to 5 bar (0 to 72.5 psi)
- Reference
- absolute
- Output
- Ratiometric (0.5-4.5 V, 3-wire)
- Supply
- 4.5-5.5 V DC
- Wetted parts
- AISI 316L stainless steel
- Pressure connection
- 1/8-27 NPT (ANSI/ASME B1.20.1)
- Electrical connection
- Bayonet male (3-pin, ISO 15170)
- Enclosure
- IP67
- Ambient temp
- -40 to +85 C
- Medium temp
- -40 to +125 C
- Response time
- 4 ms max
- Approvals
- C UL US; CE; UL; EAC; RoHS
- EAN
- 5702428848688
- Part number
- 060G6285
- Net weight
- 0.116 Kilogram
- Product group
- Sensors
- + output
- Pin 2
- + supply
- Pin 1
- - common
- Pin 4
- Accuracy, max. [±FS%]
- 1 %
- Accuracy, typical [±FS%]
- 0.5 %
- Adj. zero point and span
- No
- Ambient temperature range [°C] [max]
- 125 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 257 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- ATEX
- Approval comments
- ATEX Ex ec IIA T4 Gc
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Compensated temp. range [°C] [max]
- 100 °C
- Compensated temp. range [°C] [min]
- 0 °C
- Compensated temp. range [°F] [max]
- 212 °F
- Compensated temp. range [°F] [min]
- 32 °F
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. comments
- A1-3.2-AU Ø33
- Electrical conn. Male/Female
- Male
- Electrical connection size
- 3 pin
- Electrical connection standard
- ISO 15170
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flush diaphragm
- No
- High Clipping Level
- 98
- In scope of WEEE
- Yes
- International Article Number
- 5702428848688
- Intrinsically safe
- No
- Low Clipping level
- 4
- Medium temperature range [°C] [max]
- 125 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 257 °F
- Medium temperature range [°F] [min]
- -40 °F
- Non-linearity BFSL [±FS%]
- 0.2 %
- Output signal
- Ratio metric
- Overload pressure max. [bar]
- 30 bar
- Overload pressure max. [psi]
- 435 psi
- Pressure connection HEX [mm]
- 27 mm
- Pressure connection size
- 1/8-27
- Pressure connection standard
- ANSI/ASME B1.20.1
- Pressure connection type
- NPT
- Pressure Male/Female
- Male
- Pressure range [bar] [max]
- 5 bar
- Pressure range [bar] [min]
- 0 bar
- Pressure range [psi] [max]
- 72.5 psi
- Pressure range [psi] [min]
- 0 psi
- Pressure reference
- Absolute
- Pulse-snubber
- No
- Ratiometric of Vsupply [%] [max]
- 90 %
- Ratiometric of Vsupply [%] [min]
- 10 %
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Response time max. [ms]
- 4 ms
- Specification key
- MBS 3200-1726-F7AC02-0
- Supply voltage [V] DC [max]
- 5.5 V
- Supply voltage [V] DC [min]
- 4.5 V
- UL mark
- Yes
Standards & Compliance
- Material
- AISI 316L stainless steel wetted parts
- Thread Standard
- 1/8-27 NPT (ANSI/ASME B1.20.1)
- Pressure Rating
- 0 to 5 bar (0 to 72.5 psi)
- Temperature Range
- -40 to +125 C (medium)
- IP Rating
- IP67
- Classification / Approval
- C UL US; CE; UL; EAC; RoHS
- HS Code
- 9026.20
Compatibility & Fitment
MBS 3200 transmitter, 0 to 5 bar absolute, NPT port with Bayonet connection.
