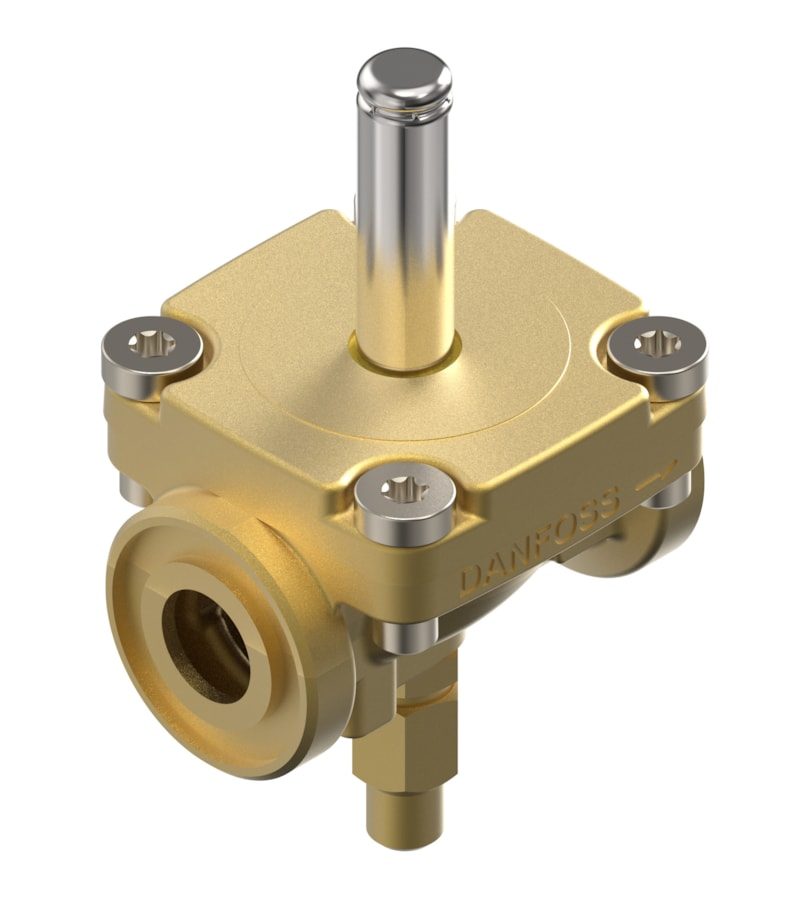

Danfoss EVR 20 Solenoid Valve Flange NC Refrigeration 032L1253
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss EVR 20 normally closed (NC) servo-operated solenoid valve body, OEM P/N 032L1253. Controls the flow of liquid, suction and hot-gas refrigerant lines in commercial refrigeration and air-conditioning systems. Two-way servo-diaphragm design with flange inlet and outlet connections, brass body. Orifice 22 mm, Kv 6 m³/h. Max working pressure 32 bar (460 psig); media temperature -40 °C to 105 °C. Manual stem operation: Yes. The coil is ordered separately (AC or DC, clip-on). Refrigerant compatibility is listed on the datasheet — verify against your system charge.
Technical Specifications
- Brand
- Danfoss
- Part number
- 032L1253
- Model
- EVR 20 servo-operated solenoid valve (valve body)
- Category
- HVAC & Refrigeration — Solenoid Valves
- Function
- NC (normally closed)
- Type
- 2-way servo-diaphragm solenoid valve
- Connection
- Flange, inlet and outlet
- Orifice
- 22 mm
- Kv
- 6 m³/h
- Manual stem operation
- Yes
- Max working pressure (PS/MWP)
- 32 bar (460 psig)
- Media temperature range
- -40 °C to 105 °C (-40 °F to 221 °F)
- Body
- brass
- Coil
- ordered separately (clip-on; AC/DC versions available)
- Net weight
- 1.401 kg
- Gross weight
- 1.736 kg
- Approvals
- UL (MH7648), CE / PED (2014/68/EU, EU Declaration Danfoss MD 033F0687), EAC
- HS code
- 8481.80
- Code number
- 032L1253
- Product group
- Solenoid valves
- Type designation
- Solenoid valve
- Direction
- Straightway
- Valve operation
- Servo-diaphragm
- Inlet connection type
- Flange
- Outlet connection type
- Flange
- Cv value
- 6.900 gal/min
- MaxOPD 10W AC
- 38 bar
- MaxOPD 20W DC
- 20 bar
- MaxOPD coil BJ/BX
- 38 bar
- MinODP
- 0.030 bar
- MOPD [bar/psi]
- Coil Dependent
- Medium temp. range note
- Defrost max 130°C/265°F
- Medium temperature range
- -40 °C to 105 °C
- Ambient temperature
- -40 - 80 °C
- Refrigerants
- R125; R134a; R22; R404A; R407A; R407C; R407F; R407H; R410A; R413A; R417A; R422A; R422B; R422D; R438A; R442A; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R455A; R463A; R507A; R512A; R513A; R513B; R515A; R515B
- Lubricants compatibility
- AB; MO; PAG; PAO; POE; PVE
- Fluid Group
- 2
- PED category
- Art. 4, par. 3
- UL approved refrigerants
- R125; R134a; R22; R404A; R407A; R407C; R407F; R407H; R410A; R417A; R422A; R422B; R422D; R438A; R442A; R447B; R448A; R449A; R449B; R450A; R452A; R463A; R507A; R513A; R513B; R515A; R515B
- UL mark
- Yes
- EAN
- 5702428952446
Standards & Compliance
- Material
- Brass body — full material breakdown in the EVR datasheet
- Pressure Rating
- 32 bar (460 psig) max working pressure
- Temperature Range
- -40 °C to 105 °C
- Classification / Approval
- UL (MH7648), CE / PED (2014/68/EU), EAC
- HS Code
- 8481.80
Compatibility & Fitment
Normally closed servo-operated solenoid valve for liquid, suction and hot-gas lines in refrigeration and air-conditioning systems. Coil ordered separately. Flange connections — verify code and connection size before ordering. Image is a generic solenoid-valve category placeholder (no fabricated brand artwork).
