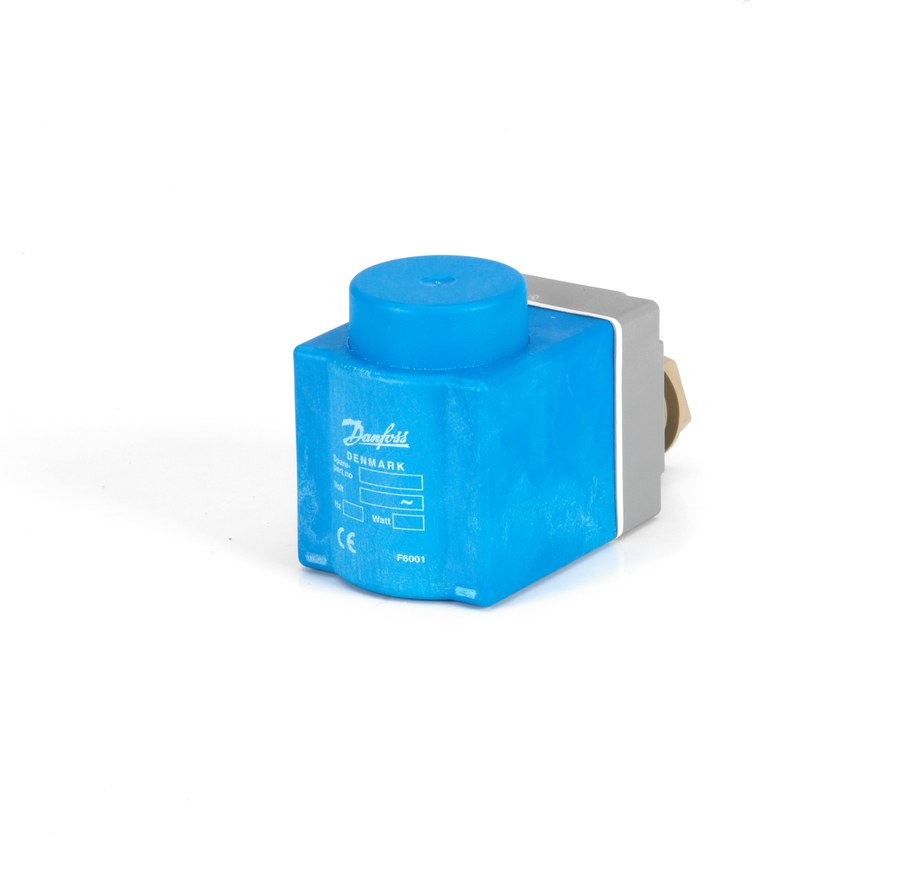

Danfoss BE230CS solenoid valve coil 230V AC clip-on terminal box IP67
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss BE230CS clip-on solenoid coil, 220-230 V AC, 50/60 Hz, terminal box connection (Pg 13.5), IP67, Class H insulation. Encapsulated coil with 13.5 mm clip-on actuator for EV / EVR-series solenoid valve bodies. OEM P/N 018F6732. Valve body ordered separately.
Technical Specifications
- Type
- BE230CS clip-on solenoid coil
- Supply
- 220-230 V AC, 50/60 Hz
- Power
- 17 W / 31 VA (50 Hz), 14 W / 24 VA (60 Hz)
- Connection
- Terminal box (Pg 13.5)
- Enclosure
- IP67
- Insulation
- Class H to IEC 60085
- Ambient
- -40 to +80 °C
- Actuator size
- 13.5 mm, clip-on
- Net weight
- 0.311 kg (gross 0.34 kg)
- EAN
- 5702428519113
- Packing
- multi-pack
- Fits
- BE-actuator (13.5 mm) EV / EVR-series valve bodies — verify valve series on the datasheet
- Voltage
- 230 V
- MPN
- 018F6732
- Product group
- Solenoid valves
- Ambient temperature range [°C] [max]
- 50 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 120 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- CE
- Cable diameter [mm] [max]
- 11 mm
- Cable diameter [mm] [min]
- 6 mm
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Coil connection
- Connection Box
- Coil design standard
- VDE 0580
- Coil fastening
- Clip-on
- Coil winding insulation class
- Class H to IEC 85
- Colour
- Blue
- Compliance
- EN 60730-1
- Conductor area [mm2]
- 0.75 - 1.5 mm2
- Duty rating
- Continuous
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Terminal box
- Electrical connection size
- Pg 13.5
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Yes
- Frequency [Hz]
- 50/60 Hz
- Identical product
- 018F8732
- In scope of WEEE
- Yes
- Power consumption 50Hz [VA]
- 31 VA
- Power consumption 60Hz [VA]
- 24 VA
- Power consumption [W] 50Hz
- 17 W
- Power consumption [W] 60Hz
- 14 W
- REACH Candidate List substances
- No
- Rel. Humidity [% RH] [max]
- 100 %
- Rel. Humidity [% RH] [min]
- 0 %
- Spare part number
- 018F6193
- Supply voltage 50Hz Max [V]
- 230 V
- Supply voltage 50Hz Min [V]
- 220 V
- Supply voltage 60Hz Max [V]
- 230 V
- Supply voltage 60Hz Min [V]
- 220 V
- Supply voltage [V] AC [max]
- 230 V
- Supply voltage [V] AC [min]
- 220 V
- Type designation
- BE230CS
Standards & Compliance
- Material
- Encapsulated coil, Class H insulation
- Temperature Range
- -40 to +80 °C
- IP Rating
- IP67
- HS Code
- 8505.90
Compatibility & Fitment
Clip-on coil — mounts on the 13.5 mm valve actuator without tools. Verify valve series, supply voltage and connection type before ordering. Valve body ordered separately.
