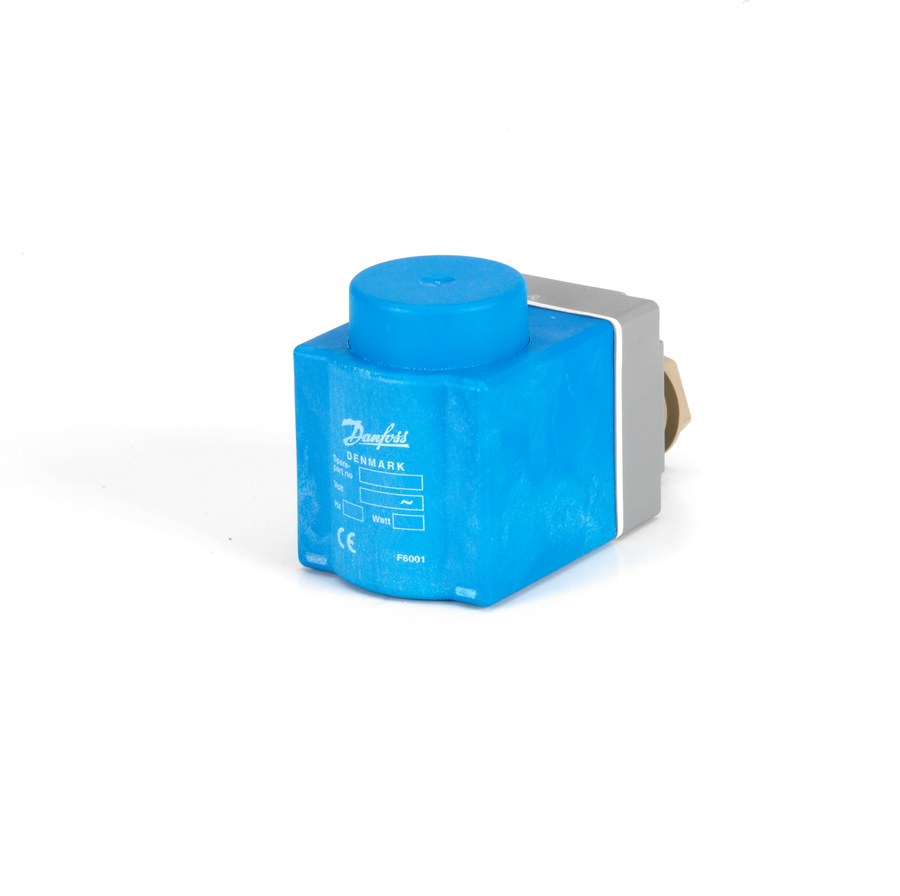

Danfoss BE024BS solenoid valve coil 24V AC 60Hz clip-on terminal box IP67
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss BE024BS clip-on solenoid coil, 24 V AC, 60 Hz, terminal box connection (screwed cable entry), IP67, Class H insulation. Encapsulated coil with 13.5 mm clip-on actuator. OEM P/N 018F6715. Valve body ordered separately.
Technical Specifications
- Type
- BE024BS clip-on solenoid coil
- Supply
- 24 V AC, 60 Hz
- Power
- 14 W / 25 VA (60 Hz)
- Connection
- Terminal box (screwed cable entry)
- Enclosure
- IP67
- Insulation
- Class H to IEC 85
- Ambient
- -40 to +80 °C
- Actuator size
- 13.5 mm, clip-on
- Net weight
- 0.293 kg (gross 0.326 kg)
- EAN
- 5702428023115
- Fits EV210B / EV212B / EV220B / EV222B / EV224B / EV250B / EV251B-series solenoid valve bodies — verify valve series on the datasheet
- Code number
- 018F6715
- Product group
- Solenoid valves
- Type designation
- BE024BS
- Ambient temperature range
- -40 °C to 80 °C
- Approval
- CE; EAC; LLC CDC TYSK
- CE mark
- Yes
- REACH candidate-list substances
- No
- Cable diameter
- 6.0 mm to 11.0 mm
- Coil connection
- Connection Box
- Coil design standard
- VDE 0580
- Coil fastening
- Clip-on
- Coil winding insulation class
- Class H to IEC 85
- Colour
- Blue
- Conductor area
- 0.75 - 1.5 mm2
- Duty rating
- Continuous
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Terminal box
- Electrical connection size
- Pg 13.5
- Enclosure rating IP
- IP67
- Frequency
- 60 Hz
- In scope of WEEE
- Yes
- Power consumption [W] 60Hz
- 14.0 W
- Rel. Humidity
- 0 % to 100 %
- Spare part number
- 018F6190
- Supply voltage [V] AC
- 24 V
- Supply voltage 60Hz Max
- 24 V
- Compliance
- EN 60730-1
- EU RoHS compliance
- Yes
Standards & Compliance
- Material
- Encapsulated coil, Class H insulation
- Temperature Range
- -40 to +80 °C
- IP Rating
- IP67
- HS Code
- 8505.90
Compatibility & Fitment
Clip-on coil — mounts on the 13.5 mm valve actuator without tools. Verify valve series, supply voltage and connection type before ordering. Valve body ordered separately.
