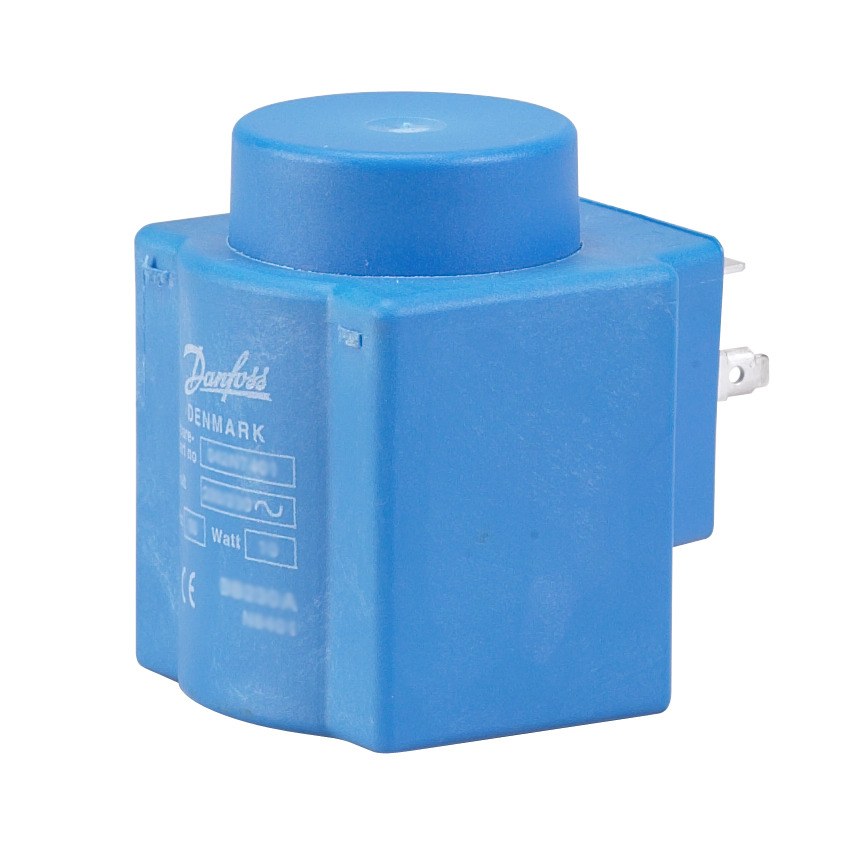

Danfoss BB110CS solenoid valve coil 110V AC 50/60Hz clip-on DIN-spade
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss BB110CS clip-on solenoid coil for EV-series valves, 110 V AC, 50/60 Hz, DIN-spade plug connection (DIN 43650A / ISO 4400), Class H insulation. Encapsulated coil for the EV210B/EV220B/EV250B valve range. OEM P/N 018F7360. Valve body and DIN plug ordered separately.
Technical Specifications
- Type
- BB110CS clip-on solenoid coil
- Supply
- 110 V AC, 50/60 Hz
- Power
- 15 W / 28 VA (50 Hz); 13 W / 22 VA (60 Hz)
- Connection
- DIN-spade plug, DIN 43650A / ISO 4400, 3 x 6.3 x 0.8 mm spades
- Enclosure
- IP00 (coil); IP65 with fitted DIN 43650A plug + gasket
- Insulation
- Class H to IEC 60085
- Ambient
- -40 to +80 °C
- Actuator size
- 13.5 mm, clip-on
- Duty
- continuous
- Design standard
- VDE 0580
- Net weight
- 0.274 kg (gross 0.276 kg)
- Packing
- multi-pack
- EAN
- 5702428026505
- Fits EV210B / EV212B / EV220B / EV222B / EV224B / EV250B / EV251B / EV310B-series solenoid valve bodies — verify valve series on the datasheet
- Voltage
- 110 V
Standards & Compliance
- Material
- Encapsulated coil, Class H insulation
- Temperature Range
- -40 to +80 °C
- IP Rating
- IP00 (coil); IP65 with fitted DIN 43650A plug + gasket
- HS Code
- 8505.90
Compatibility & Fitment
Clip-on coil — mounts on the EV-series valve actuator (13.5 mm) without tools. DIN-spade plug connection (DIN 43650A / ISO 4400, 3 x 6.3 x 0.8 mm spades); fit a DIN 43650A plug + gasket to reach IP65 (plug ordered separately). Verify valve series, supply voltage and connection type before ordering. Valve body ordered separately.
