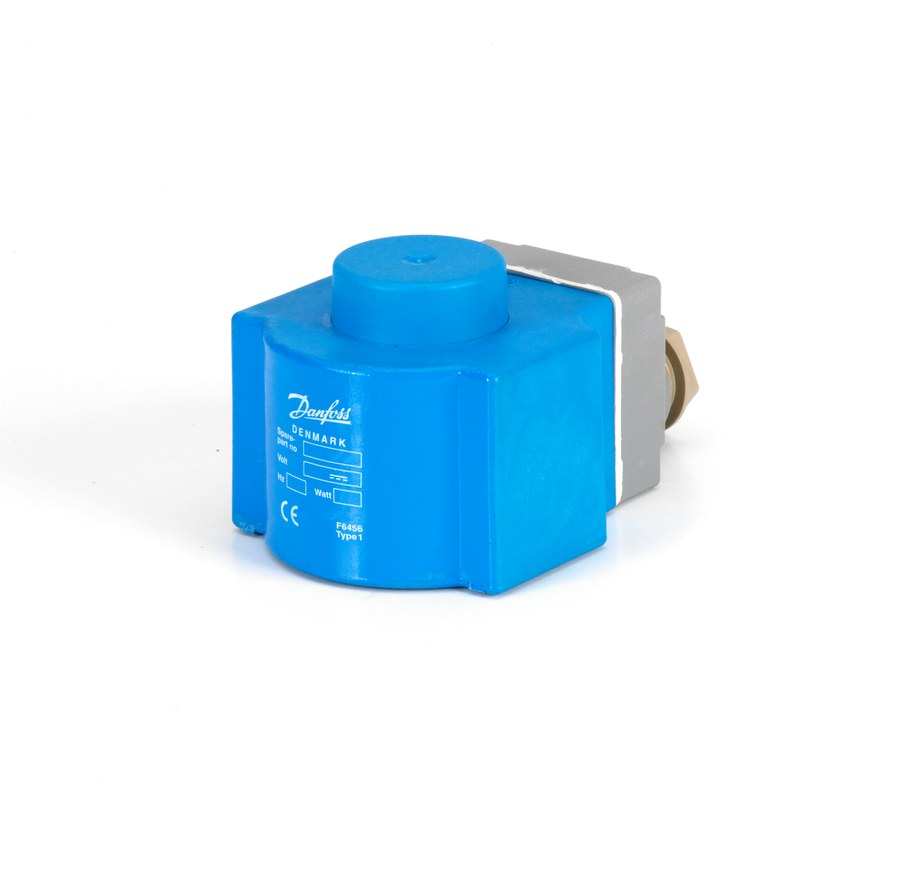

Danfoss BG012DS solenoid valve coil 12V DC clip-on terminal box IP67
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss BG012DS clip-on solenoid coil, 12 V DC, terminal box connection (screwed cable entry), IP67, Class H insulation, continuous duty. Encapsulated coil with 13.5 mm clip-on actuator. OEM P/N 018F6856. Valve body ordered separately.
Technical Specifications
- Type
- BG012DS clip-on solenoid coil
- Supply
- 12 V DC
- Power
- 20 W
- Connection
- Terminal box (screwed cable entry)
- Enclosure
- IP67
- Insulation
- Class H to IEC 85
- Ambient
- -40 to +50 °C
- Duty
- continuous
- Actuator size
- 13.5 mm, clip-on
- Net weight
- 0.564 kg (gross 0.588 kg)
- EAN
- 5702428026253
- Packing
- multi-pack
- Fits EV210B / EV212B / EV220B / EV222B / EV224B / EV250B / EV251B-series solenoid valve bodies — verify valve series on the datasheet
- Voltage
- 12 V
Standards & Compliance
- Material
- Encapsulated coil, Class H insulation
- Temperature Range
- -40 to +50 °C
- IP Rating
- IP67
- HS Code
- 8505.90
Compatibility & Fitment
Clip-on coil — mounts on the 13.5 mm valve actuator without tools. Verify valve series, supply voltage and connection type before ordering. Valve body ordered separately.
