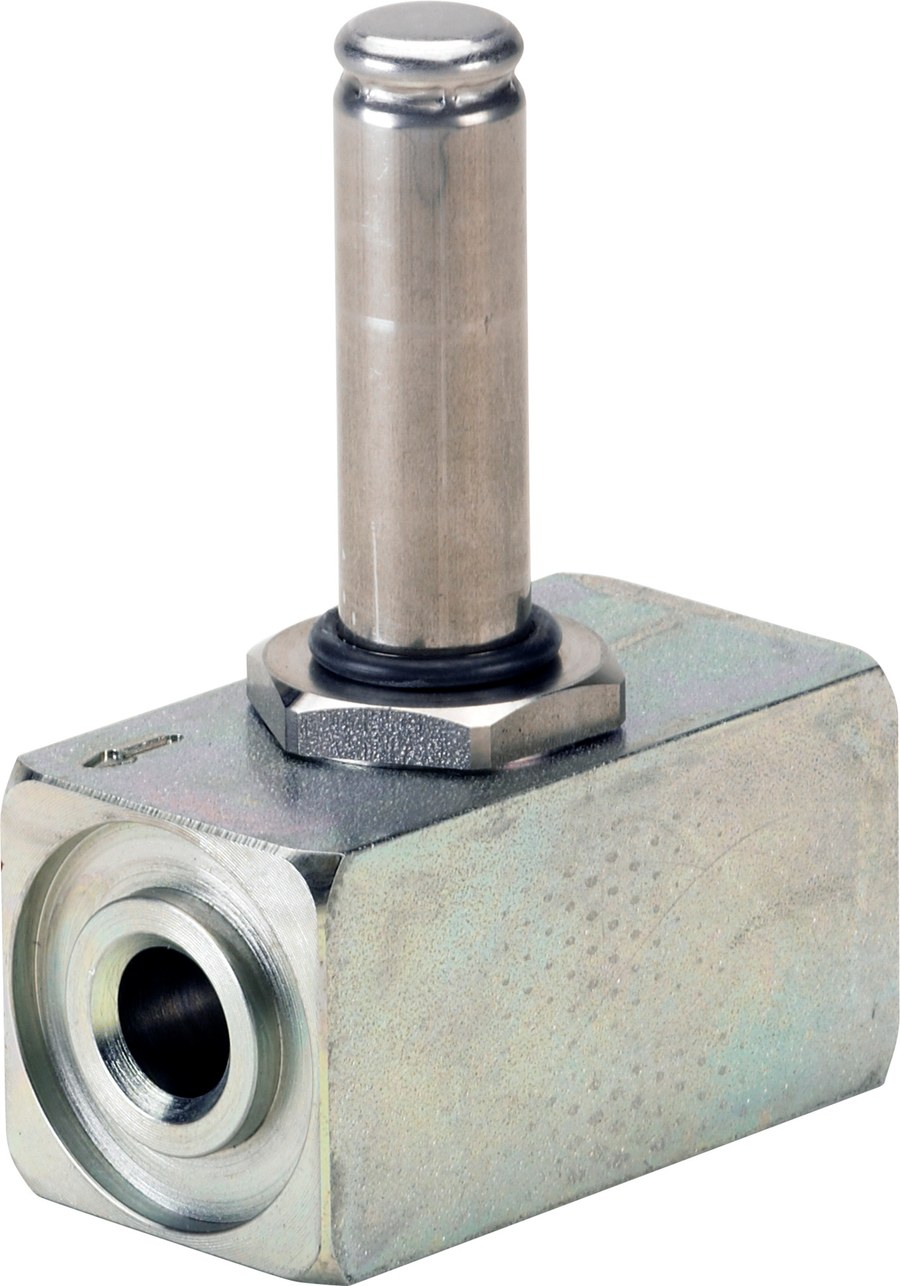

Danfoss EVRA 3 Solenoid Valve Flange Refrigeration

Danfoss EVRA 3 direct-operated solenoid valve body, OEM P/N 032F3050. Controls the flow of liquid, suction and hot-gas refrigerant — including ammonia (R717) and fluorinated refrigerants — in industrial refrigeration plant. Two-way valve with flange inlet and outlet connections, free-cutting steel (11MnPb30) body. Orifice 3 mm, Kv 0.23 m³/h. minimum opening pressure differential 0 bar. Max working pressure 42 bar (609 psig); media temperature -40 °C to 105 °C. Manual stem operation: No. The coil is ordered separately (AC or DC). Flange gaskets and bolts are included; flanges are ordered separately. Refrigerant and charge limits are listed on the datasheet — verify against your system.

Brand

Danfoss Part number: 032F3050 Model: EVRA 3 direct-operated solenoid valve (valve body, coil separate) Category: HVAC & Refrigeration — Solenoid Valves Type: 2-way direct-operated Connection: Flange, inlet and outlet (gaskets and bolts included) Orifice: 3 mm Kv: 0.23 m³/h minimum opening pressure differential: 0 bar Manual stem operation: No Max working pressure (PS/MWP): 42 bar (609 psig) Media temperature range: -40 °C to 105 °C (-40 °F to 221 °F) Refrigerants: ammonia (R717) and fluorinated refrigerants Body: free-cutting steel (11MnPb30) Coil: ordered separately (clip-on; AC/DC versions available) Net weight: 0.84 kg Gross weight: 0.902 kg Approvals: UL (C-UL-US Listed), CE / PED (2014/68/EU), EAC HS code: 8481.80 Code number: 032F3050 Product group: Solenoid valves Type designation: Solenoid valve Function: NC Direction: Straightway Valve operation: Direct Inlet connection type: Flange Outlet connection type: Flange Cv value: 0.270 gal/min MaxOPD 10W AC: 21 bar MaxOPD 12W AC: 25 bar MaxOPD 14W AC: 300 psi MaxOPD 20W DC: 14 bar MinODP: 0.200 bar Medium temp. range note: Defrost max 130°C/265°F Medium temperature range: -40 °C to 105 °C Ambient temperature: -40 - 80 °C UL mark: Yes REACH candidate-list substances: Lead (CAS no. 7439-92-1) EAN: 5702422027928 Actuator system: 13.5 mm

Material

Free-cutting steel (11MnPb30) body — full material breakdown in the EVRA datasheet

Pressure Rating

42 bar (609 psig) max working pressure

Temperature Range

-40 °C to 105 °C

Classification / Approval

UL (C-UL-US Listed), CE / PED (2014/68/EU), EAC

HS Code

8481.80
