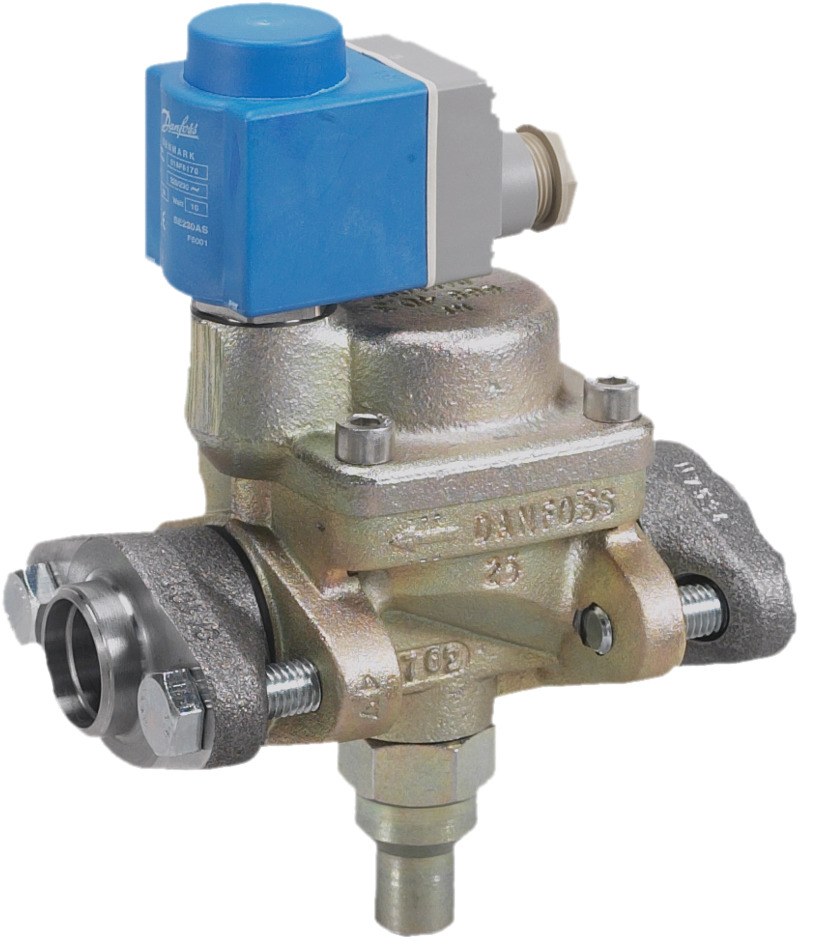

Danfoss EVRA 25 Solenoid Valve Flange Refrigeration 032F6225

Danfoss EVRA 25 servo-operated piston solenoid valve body, OEM P/N 032F6225. Controls the flow of liquid, suction and hot-gas refrigerant — including ammonia (R717) and fluorinated refrigerants — in industrial refrigeration plant. Two-way valve with flange inlet and outlet connections, cast iron (GJS-400-18-LT) body. Orifice 25 mm, Kv 10 m³/h. minimum opening pressure differential 0.2 bar. Max working pressure 42 bar (609 psig); media temperature -40 °C to 105 °C. Manual stem operation: Yes. The coil is ordered separately (AC or DC). Flange gaskets and bolts are included; flanges are ordered separately. Refrigerant and charge limits are listed on the datasheet — verify against your system.

Brand

Danfoss Part number: 032F6225 Model: EVRA 25 servo-operated piston solenoid valve (valve body, coil separate) Category: HVAC & Refrigeration — Solenoid Valves Type: 2-way servo-operated piston Connection: Flange, inlet and outlet (gaskets and bolts included) Orifice: 25 mm Kv: 10 m³/h minimum opening pressure differential: 0.2 bar Manual stem operation: Yes Max working pressure (PS/MWP): 42 bar (609 psig) Media temperature range: -40 °C to 105 °C (-40 °F to 221 °F) Refrigerants: ammonia (R717) and fluorinated refrigerants Body: cast iron (GJS-400-18-LT) Coil: ordered separately (clip-on; AC/DC versions available) Net weight: 2.822 kg Gross weight: 3.276 kg Approvals: UL (C-UL-US Listed), CE / PED (2014/68/EU), EAC HS code: 8481.80 Code number: 032F6225 Product group: Solenoid valves Type designation: Solenoid valve Function: NC Direction: Straightway Valve operation: Servo-piston Inlet connection type: Flange Outlet connection type: Flange Cv value: 11.600 gal/min MaxOPD 10W AC: 21 bar MaxOPD 12W AC: 25 bar MaxOPD 14W AC: 300 psi MaxOPD 20W DC: 14 bar MinODP: 0.200 bar Medium temp. range note: Defrost max 130°C/265°F Medium temperature range: -40 °C to 105 °C Ambient temperature: -40 - 80 °C UL mark: Yes REACH candidate-list substances: Lead (CAS no. 7439-92-1) EAN: 5702422177722 Actuator system: 13.5 mm

Material

Cast iron (GJS-400-18-LT) body — full material breakdown in the EVRA datasheet

Pressure Rating

42 bar (609 psig) max working pressure

Temperature Range

-40 °C to 105 °C

Classification / Approval

UL (C-UL-US Listed), CE / PED (2014/68/EU), EAC

HS Code

8481.80
