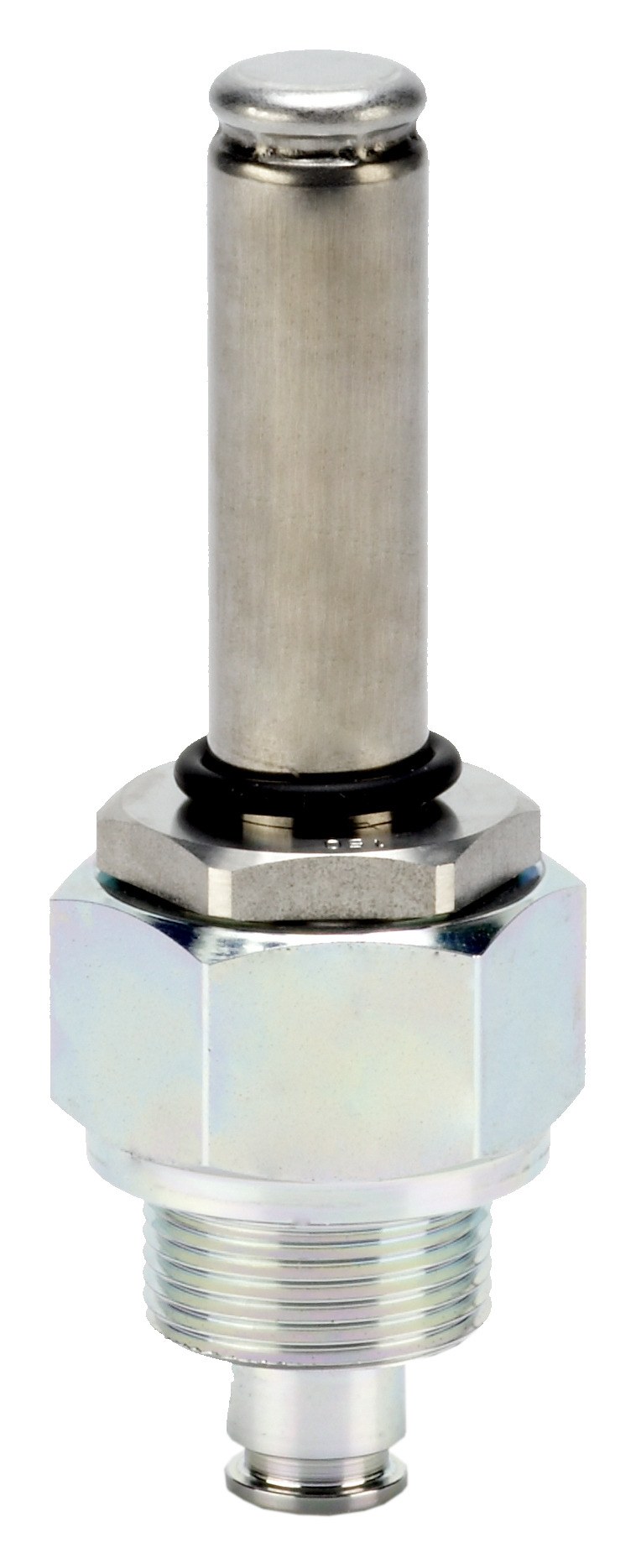

Danfoss EVM pilot valve, thread connection, 65 bar, NC — solenoid pilot for servo-operated refrigeration valves
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss EVM solenoid pilot valve, NC, thread connection, 65 bar max working pressure. Used as the pilot stage on servo-operated refrigeration solenoid and main valves. OEM P/N 032F3054. Coil ordered separately. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.
Technical Specifications
- Type
- EVM pilot valve
- Function
- NC (normally closed)
- Connection
- Thread
- Kv value
- 0.28 m³/h
- Max working pressure
- 65 bar
- Media
- R134a, R22, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R409A, R410A, R421A, R502, R717, R744, R507A
- Medium temperature
- -60 to 120 °C
- Ambient temperature
- -40 to 80 °C
- Packing
- Multi pack, 20 pc
- Net weight
- 0.246 kg
- Gross weight
- 0.25 kg
- EAN
- 5702422085423
- MPN
- 032F3054
- Product group
- Press. and temp. regul. valves
- Actuator system [mm]
- 13.5 mm
- Ambient temperature range [°F] [max]
- 176 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- LLC CDC TYSK
- Body material
- Steel
- China RoHS compliance
- Yes
- Coil
- No
- Cv value [gal/min]
- 0.323 gal/min
- Direction
- None
- EU RoHS compliance
- Yes
- Inlet connection type
- Thread
- Kv value [m³/h]
- 0.28 m³/h
- Manual operation option
- No
- Max. Working Pressure [bar]
- 65 bar
- Max. Working Pressure [psig]
- 943 psig
- MaxOPD[bar] 10W AC
- 21 bar
- MaxOPD[bar] 20W DC
- 12 bar
- MaxOPD[psi] 10W AC
- 305 psi
- Medium temperature range [°C] [max]
- 120 °C
- Medium temperature range [°C] [min]
- -60 °C
- Medium temperature range [°F] [max]
- 248 °F
- Medium temperature range [°F] [min]
- -76 °F
- Orifice size [mm]
- 3.3 mm
- REACH Candidate List substances
- No
- Refrigerants
- R134a
- Type designation
- Solenoid valve
- UL mark
- Yes
- Valve operation
- Servo-piston
Standards & Compliance
- Pressure Rating
- 65 bar
- Temperature Range
- Medium -60 to 120 °C; ambient -40 to 80 °C
- HS Code
- 8481.80
Compatibility & Fitment
Solenoid pilot valve for servo-operated valves. Verify main-valve compatibility, media and coil voltage before ordering. Coil ordered separately.
