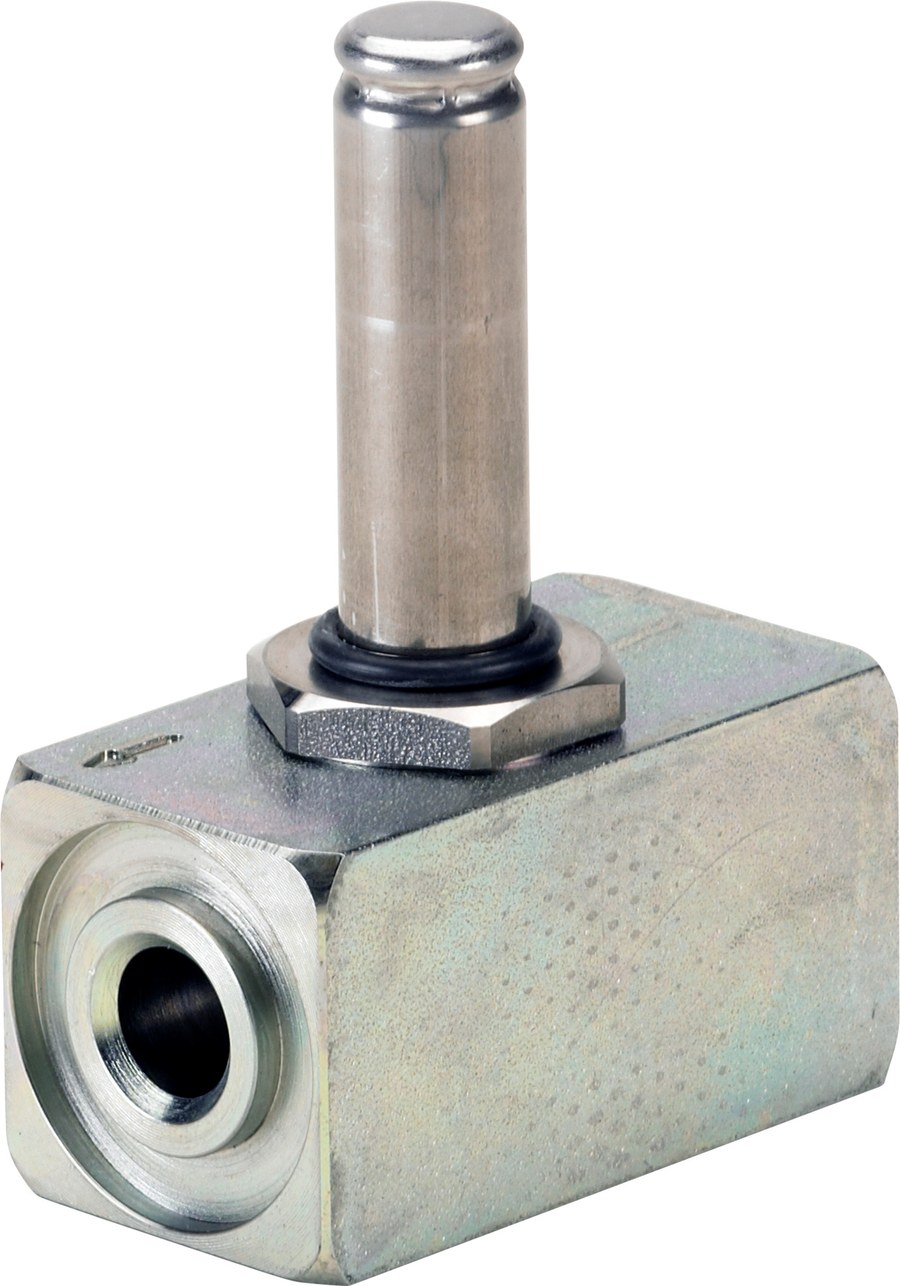

Danfoss EVRA 3.5 solenoid valve, G 1/4 thread ISO 228-1, steel body, 28 bar, NC
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss EVRA 3.5 direct/servo-operated solenoid valve for liquid, suction and hot-gas lines with ammonia (R717) and fluorinated refrigerants. G 1/4 thread, steel body, 28 bar, NC. OEM P/N 032F3138. Coil ordered separately.
Technical Specifications
- Type
- EVRA 3.5
- Function
- NC (normally closed)
- Inlet connection
- Thread, G 1/4 (ISO 228-1)
- Outlet connection
- Thread, G 1/4 (ISO 228-1)
- Max working pressure
- 28 bar (400 psig)
- Media
- R134a, R22, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R409A, R410A, R421A, R502, R717, R507A
- Medium temperature
- 0 to 130 °C
- Body material
- Steel
- Packing
- Multi pack, 20 pc
- Net weight
- 0.383 kg
- Gross weight
- 0.406 kg
- EAN
- 5702422108252
- MPN
- 032F3138
- Product group
- Solenoid valves
- Actuator system [mm]
- 13.5 mm
- Approval
- EAC
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Coil
- No
- Connection material
- Stainless steel
- Direction
- Straightway
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Flow direction indicator
- Embossed 1-way arrow
- Inlet connection type
- Thread
- Inlet size [in]
- G 1/4
- Manual operation option
- No
- Max. Working Pressure [bar]
- 28 bar
- Max. Working Pressure [psig]
- 400 psig
- MaxOPD[bar] 10W AC
- 21 bar
- Medium temperature range [°C] [max]
- 130 °C
- Medium temperature range [°C] [min]
- 0 °C
- Medium temperature range [°F] [max]
- 266 °F
- Medium temperature range [°F] [min]
- 32 °F
- MinODP [bar]
- 0 bar
- MinODP [psi]
- 0 psi
- MOPD[bar/psi]
- 21bar Gas 18bar Liquid
- Orifice size [mm]
- 3.3 mm
- Outlet connection type
- Thread
- Outlet size [in]
- G 1/4
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R134a
- Type designation
- Solenoid valve
- Valve operation
- Direct
Standards & Compliance
- Material
- Steel
- Pressure Rating
- 28 bar (400 psig)
- Temperature Range
- Medium 0 to 130 °C
- HS Code
- 8481.80
Compatibility & Fitment
For ammonia and fluorinated refrigerant lines. Verify differential-pressure requirement, media and coil voltage before ordering. Coil ordered separately.
