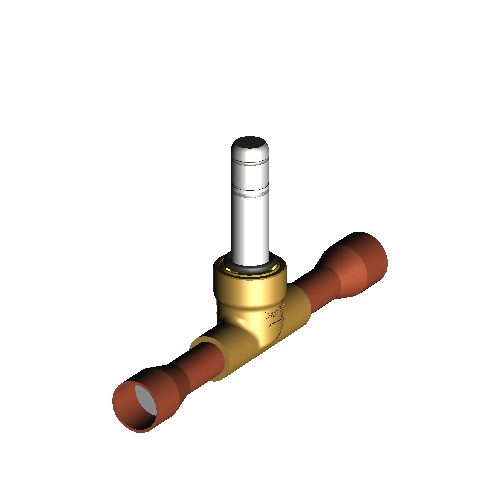

Danfoss EVG 6 solenoid valve, 1/2 in ODF solder, 35 bar, Kv 0.54 m³/h, NC
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss EVG 6 direct-operated solenoid valve, NC, 1/2 in ODF solder, 35 bar, Kv 0.54 m³/h, for fluorinated and low-GWP refrigerants. OEM P/N 032F6604. Coil ordered separately. Provides on-off electrical control of fluid flow in refrigeration, hydraulic or pneumatic lines.
Technical Specifications
- Type
- EVG 6
- Function
- NC (normally closed)
- Inlet connection
- Solder, ODF, 1/2 in
- Outlet connection
- Solder, ODF, 1/2 in
- Kv value
- 0.54 m³/h
- Max working pressure
- 35 bar (508 psig)
- Media
- R1234ze(E), R134a, R22/R407C, R290, R404A/R507A, R452A, R513A, R600, R600a
- Medium temperature
- -40 to 105 °C
- Ambient temperature
- -20 to 55 °C
- Packing
- Multi pack, 24 pc
- Net weight
- 0.08 kg
- Gross weight
- 0.125 kg
- EAN
- 5715255034940
- MPN
- 032F6604
- Product group
- Solenoid valves
- Actuator system [mm]
- 9 mm
- Ambient temperature range [°F] [max]
- 131 °F
- Ambient temperature range [°F] [min]
- -4 °F
- Approval
- EAC
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Coil
- No
- Cv value [gal/min]
- 0.63 gal/min
- Direction
- Straightway
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Fluid Group
- 1
- Inlet connection type
- Solder, ODF
- Inlet size [in]
- 1/2 in
- Kv value [m³/h]
- 0.54 m³/h
- Lubricants compatibility
- AB
- Manual operation option
- No
- Max. Working Pressure [bar]
- 35 bar
- Max. Working Pressure [psig]
- 508 psig
- MaxOPD[bar] 7W AC
- 26 bar
- MaxOPD[psi] 7W AC
- 376 psi
- Medium temperature range [°C] [max]
- 105 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 221 °F
- Medium temperature range [°F] [min]
- -40 °F
- MinODP [bar]
- 0.05 bar
- MinODP [psi]
- 1 psi
- MOPD[bar/psi]
- Coil Dependent
- Orifice size [mm]
- 5.6 mm
- Outlet connection type
- Solder, ODF
- Outlet size [in]
- 1/2 in
- PED category
- Art. 4, par. 3
- Refrigerants
- R1234ze(E)
- Type designation
- Solenoid valve
Standards & Compliance
- Pressure Rating
- 35 bar (508 psig)
- Temperature Range
- Medium -40 to 105 °C; ambient -20 to 55 °C
- HS Code
- 8481.80
Compatibility & Fitment
Compact direct-operated solenoid valve. Verify media and coil voltage before ordering. Coil ordered separately.
