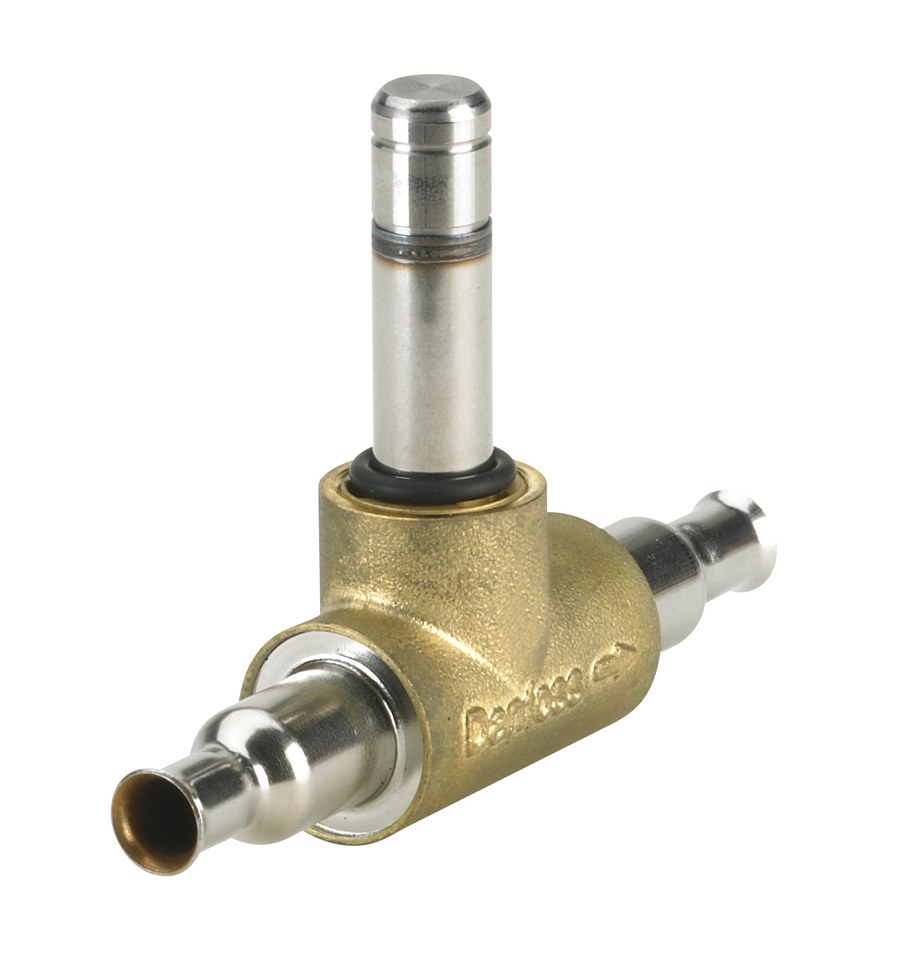

Danfoss EVU 5 solenoid valve, 10 mm ODF solder, brass body, 70 bar, Kv 0.65 m³/h, NC (code 032F7001)
Danfoss · HVAC & Refrigeration · Solenoid Valves
Danfoss EVU 5 high-pressure direct-operated solenoid valve, NC, 10 mm ODF solder, brass body, 70 bar, Kv 0.65 m³/h. For high-pressure fluorinated, hydrocarbon and R744 (CO2) refrigerant systems. OEM P/N 032F7001. Coil ordered separately.
Specifications
- Part number
- 032F7001
- HS code
- 8481.80
- Material
- Brass
- Pressure rating
- 70 bar (1015 psig)
- Temperature range
- Medium -40 to 105 °C (defrost max 130 °C)
Compatibility
High-pressure (70 bar) solenoid valve suited to R744/CO2 and high-pressure HFC systems. Verify media and coil voltage before ordering. Coil ordered separately.
Approvals
