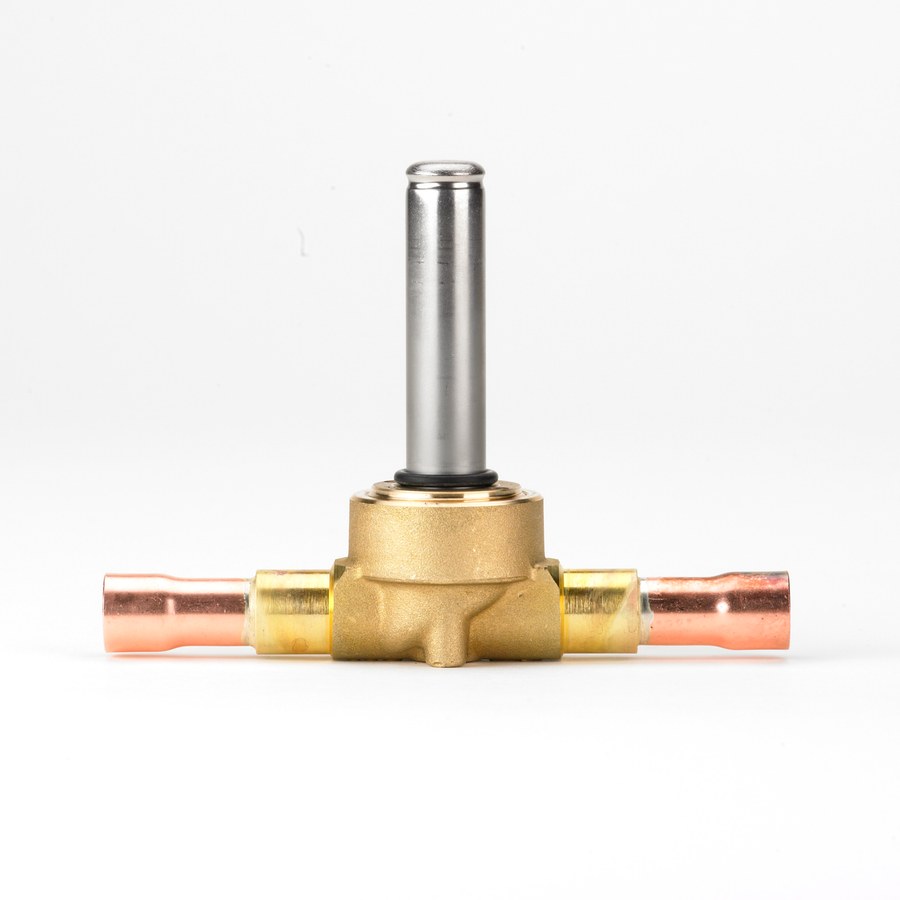

Danfoss EVRP 3 electric expansion valve, 5/8 in ODM solder, 35 bar, Kv 0.26 m³/h, pulsating liquid injection, NC
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss EVRP 3 electric expansion valve for pulsating (pulse-width-modulated) liquid injection, NC, 5/8 in ODM solder, 35 bar, Kv 0.26 m³/h. OEM P/N 032F4039. Controller/coil ordered separately. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.
Technical Specifications
- Type
- EVRP 3 — pulsating liquid injection
- Function
- NC (normally closed)
- Inlet connection
- Solder, ODM, 5/8 in
- Outlet connection
- Solder, ODM, 5/8 in
- Kv value
- 0.26 m³/h (Cv 0.3)
- Max working pressure
- 35 bar (500 psig)
- Media
- R134a, R22/R407C, R23, R404A/R507A, R407A, R410A
- Medium temperature
- -40 to 60 °C
- Packing
- Multi pack, 18 pc
- Net weight
- 0.29 kg
- Gross weight
- 0.358 kg
- EAN
- 5702422172697
- MPN
- 032F4039
- Product group
- Expansion valves
- Actuator system [mm]
- 13.5 mm
- Ambient temperature
- -40 - Coil dependent
- Approval
- EAC
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Coil
- No
- Cv value [gal/min]
- 0.3 gal/min
- Direction
- Angleway
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Identical product
- 032F4028
- Inlet connection type
- Solder, ODM
- Inlet size [in]
- 5/8 in
- Kv value [m³/h]
- 0.26 m³/h
- Lubricants compatibility
- AB
- Manual operation option
- No
- Max. Working Pressure [bar]
- 35 bar
- Max. Working Pressure [psig]
- 500 psig
- MaxOPD[bar] 10W AC
- 21 bar
- Medium temperature range [°C] [max]
- 60 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 140 °F
- Medium temperature range [°F] [min]
- -40 °F
- MinODP [bar]
- 0 bar
- MOPD[bar/psi]
- Liquid
- Orifice size [mm]
- 3 mm
- Outlet connection type
- Solder, ODM
- Outlet size [in]
- 5/8 in
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R134a
- Type designation
- Pulsating liquid injection
Standards & Compliance
- Pressure Rating
- 35 bar (500 psig)
- Temperature Range
- Medium -40 to 60 °C
- HS Code
- 8481.80
Compatibility & Fitment
Pulse-modulated electric expansion valve for capacity control / liquid injection. Verify controller compatibility, media and coil voltage before ordering.
