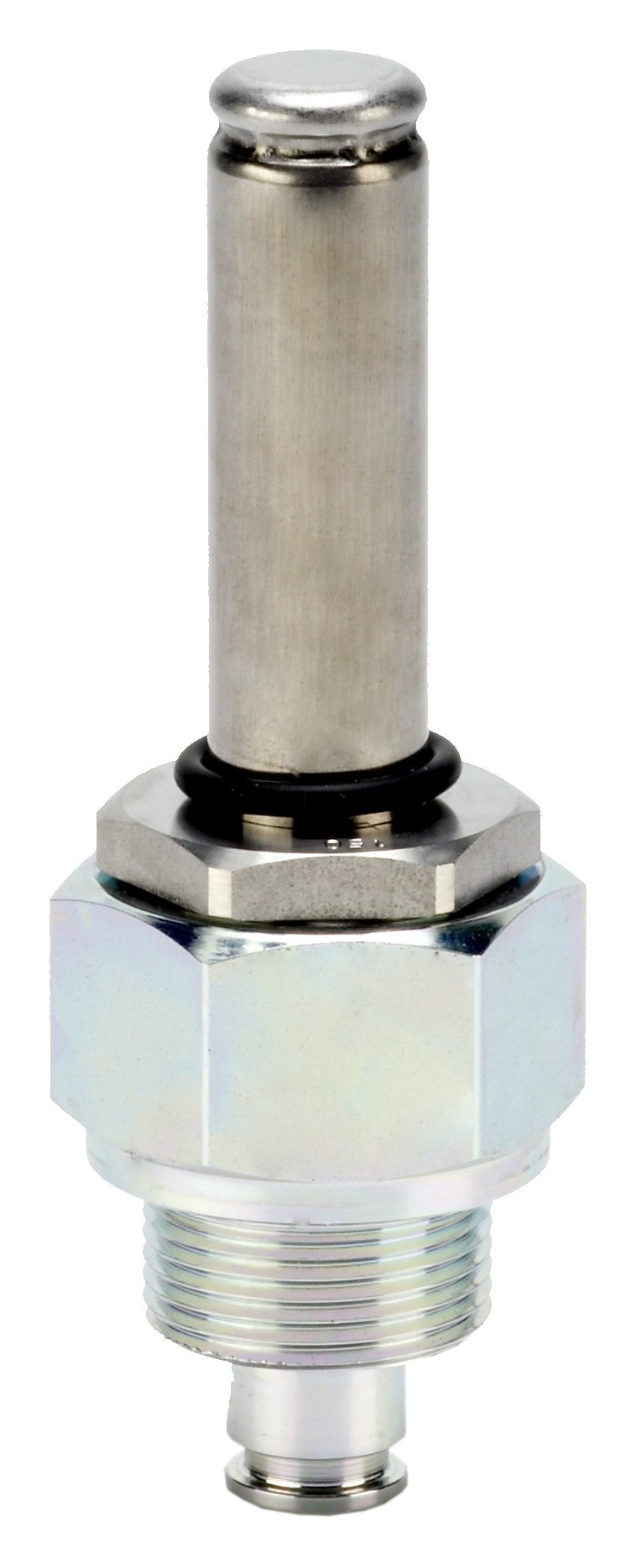

Danfoss EVM pilot valve, thread connection, 65 bar, NC — hydrocarbon-refrigerant pilot for servo-operated valves
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss EVM servo-piston pilot valve for pilot-operated servo valve systems on hydrocarbon (R290/R600/R600a) refrigerant lines. Thread connection, 65 bar, orifice 3.3 mm, Kv 0.25 m³/h, NC. OEM P/N 032F8029. Coil ordered separately.
Technical Specifications
- Type
- EVM pilot valve (hydrocarbon)
- Function
- NC (normally closed)
- Inlet connection
- Thread
- Kv value
- 0.25 m³/h (Cv 0.289)
- Orifice size
- 3.3 mm
- Actuator system
- 13.5 mm
- Max working pressure
- 65 bar (943 psig)
- Media
- R1270, R290, R600, R600a, RE170
- Medium temperature
- -40 to 105 °C
- Ambient temperature
- -20 to 50 °C
- Packing
- Multi pack, 20 pc
- Net weight
- 0.239 kg
- Gross weight
- 0.253 kg
- EAN
- 5702428307420
- MPN
- 032F8029
- Product group
- Press. and temp. regul. valves
- Actuator system [mm]
- 13.5 mm
- Ambient temperature range [°F] [max]
- 120 °F
- Ambient temperature range [°F] [min]
- -4 °F
- Approval
- LLC CDC TYSK
- China RoHS compliance
- Yes
- Coil
- No
- Cv value [gal/min]
- 0.289 gal/min
- Direction
- None
- EU RoHS compliance
- Yes
- Inlet connection type
- Thread
- Kv value [m³/h]
- 0.25 m³/h
- Manual operation option
- No
- Max. Working Pressure [bar]
- 65 bar
- Max. Working Pressure [psig]
- 943 psig
- MaxOPD[bar] 10W AC
- 21 bar
- MaxOPD[bar] 20W DC
- 14 bar
- MaxOPD[psi] 10W AC
- 305 psi
- Medium temperature range [°C] [max]
- 105 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 221 °F
- Medium temperature range [°F] [min]
- -40 °F
- MOPD[bar/psi]
- Coil Dependent
- Orifice size [mm]
- 3.3 mm
- REACH Candidate List substances
- No
- Refrigerants
- R1270
- Type designation
- Solenoid valve
- UL mark
- Yes
Standards & Compliance
- Pressure Rating
- 65 bar (943 psig)
- Temperature Range
- Medium -40 to 105 °C; ambient -20 to 50 °C
- HS Code
- 8481.80
Compatibility & Fitment
Pilot valve for servo-operated refrigeration valves on hydrocarbon lines. Distinct from the standard EVM pilot (032F3054) by hydrocarbon-only media, Kv 0.25 and -40 to 105 °C range. No coil; not field-serviceable. Coil ordered separately.
