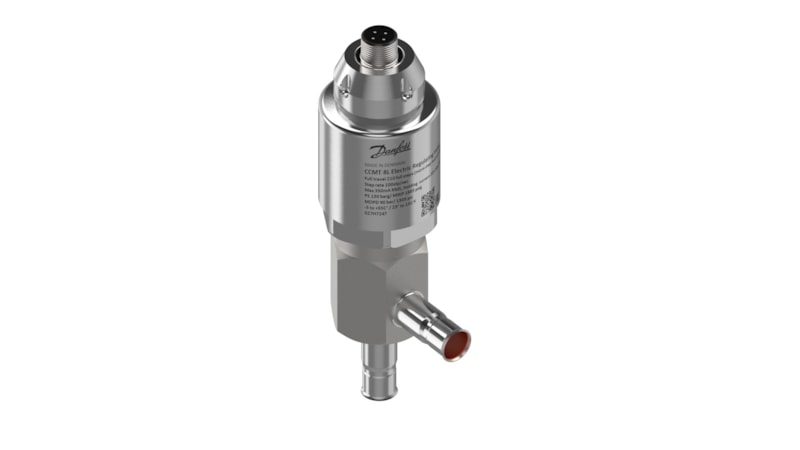

Danfoss CCMT 3L electric regulating valve, solder ODF 1/2 in (code 027H7240)
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss CCMT 3L electric regulating valve (code 027H7240), part of the Colibri electrically operated valve range for transcritical and subcritical CO2 (R744) refrigeration. Solder ODF 1/2 in connection; Kv 0.26 m3/h, maximum working pressure 130 bar (1885 psig). Motor-operated for stepless capacity and pressure regulation; the matching actuator drive and controller are ordered separately.
Specifications
- Part number
- 027H7240
- HS code
- 8481.80
- Pressure rating
- 130 bar
Compatibility
CCMT 3L for CO2 capacity control. Confirm Kv (0.26 m3/h) and MWP (130 bar) against your duty; the matching CCM/ICAD actuator drive and controller are ordered separately.
Approvals
