Danfoss CCMT 3L electric regulating valve, solder ODF 3/8 in
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss CCMT 3L electric regulating valve (code 027H7239), part of the Colibri electrically operated valve range for transcritical and subcritical CO2 (R744) refrigeration. Solder ODF 3/8 in connection; Kv 0.26 m3/h, maximum working pressure 130 bar (1885 psig). Motor-operated for stepless capacity and pressure regulation; the matching actuator drive and controller are ordered separately.
Technical Specifications
- Type
- CCMT 3L electric regulating valve
- Code number
- 027H7239
- Connection type
- solder, ODF
- Solder connection size
- 3/8 in
- Kv value
- 0.26 m3/h
- Maximum working pressure
- 130 bar (1885 psig)
- Valve operation
- electrically (motor) operated
- Refrigerant
- R744 (CO2)
- Net weight
- 0.603 kg; gross weight: 0.74 kg
- Approvals
- EAC
- EAN
- 5702428679039
- Product group
- Press. and temp. regul. valves
- Connection Solder size
- 3/8 in
- Connection standard
- EN10220
- Cv value
- 0.301 gal/min
- Max. working pressure
- 130.0 bar
- MaxOPD
- 90.0 bar
- Ambient temperature range
- -40 °C to 50 °C
- Temperature range
- -20 °C to 55 °C
- UL approved refrigerants
- R744
- REACH candidate-list substances
- No
- Diff.press.setting range
- 90.00 bar
- EU RoHS compliance
- Yes
Standards & Compliance
- Pressure Rating
- 130 bar
- HS Code
- 8481.80
Compatibility & Fitment
CCMT 3L for CO2 capacity control. Confirm Kv (0.26 m3/h) and MWP (130 bar) against your duty; the matching CCM/ICAD actuator drive and controller are ordered separately.
Product Documentation
More from Danfoss
Danfoss
Danfoss CCMT 3L electric regulating valve, solder ODF 1/2 in
027H7240
Danfoss
Danfoss CCMT 3L electric regulating valve, solder ODF 5/8 in / weld 1/2 in
027H7241
Danfoss
Danfoss CCMT 3L electric regulating valve, solder ODF 7/8 in / weld 3/4 in
027H7273
Danfoss
Danfoss CCMT 5L electric regulating valve, solder ODF 3/8 in
027H7242
Danfoss
Danfoss CCMT 5L electric regulating valve, solder ODF 1/2 in
027H7243
Danfoss
Danfoss CCMT 5L electric regulating valve, solder ODF 5/8 in / weld 1/2 in
027H7245
Danfoss
Danfoss CCMT 5L electric regulating valve, solder ODF 7/8 in / weld 3/4 in
027H7274
Danfoss

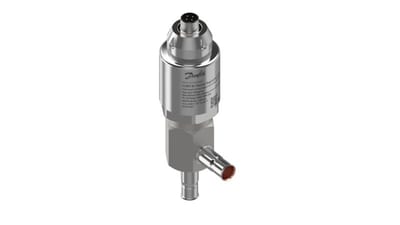

Danfoss CCMT 8L electric regulating valve, solder ODF 1/2 in
