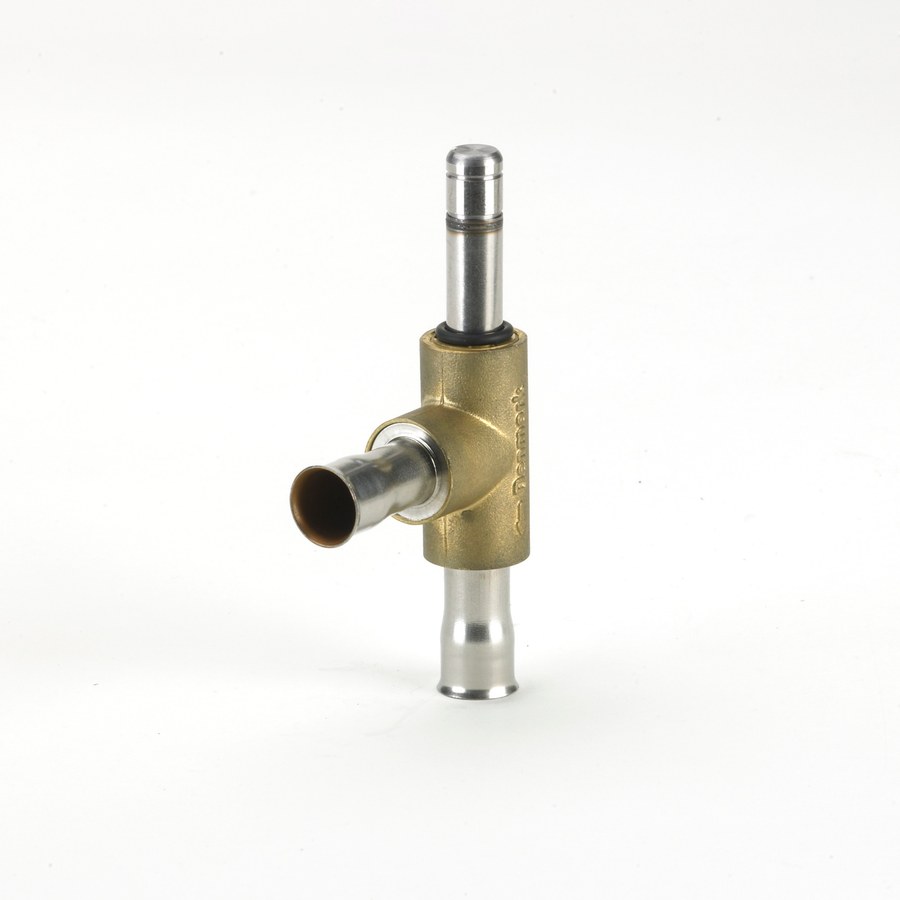

Danfoss EVU 8 solenoid valve, 12 mm ODF solder, brass body, 70 bar, Kv 1.0 m³/h, NC
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss EVU 8 high-pressure direct-operated solenoid valve, NC, 12 mm ODF solder, brass body, 70 bar, Kv 1.0 m³/h. For high-pressure fluorinated, hydrocarbon and R744 (CO2) refrigerant systems. OEM P/N 032F8009. Coil ordered separately.
Technical Specifications
- Type
- EVU 8
- Function
- NC (normally closed)
- Inlet connection
- Solder, ODF, 12 mm
- Outlet connection
- Solder, ODF, 12 mm
- Direction
- Angleway
- Kv value
- 1.0 m³/h (Cv 1.15)
- Max working pressure
- 70 bar (1015 psig)
- Min. opening pressure differential
- 0.02 bar
- Media
- R134a, R22, R23, R290, R32, R404A, R407A, R407C, R407F, R407H, R410A, R422B, R422D, R438A, R448A, R448B, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R463A, R507A, R513A, R513B, R515A, R515B, R516A, R600, R600a, R744
- Medium temperature
- -40 to 105 °C; defrost max 130 °C
- Body material
- Brass
- Packing
- Industrial pack, 40 pc
- Net weight
- 0.106 kg
- Gross weight
- 0.122 kg
- EAN
- 5702428089791
- MPN
- 032F8009
- Product group
- Solenoid valves
- Actuator system [mm]
- 9 mm
- Ambient temperature
- -40 - Coil dependent
- Approval
- EAC
- China RoHS compliance
- Yes with exemptions
- Coil
- No
- Cv value [gal/min]
- 1.15 gal/min
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Inlet connection type
- Solder, ODF
- Inlet size [mm]
- 12 mm
- Kv value [m³/h]
- 1 m³/h
- Lubricants compatibility
- AB
- Manual operation option
- No
- Max. Working Pressure [bar]
- 70 bar
- Max. Working Pressure [psig]
- 1015 psig
- Medium temp. range note
- Defrost max. 130ºC/265ºF
- Medium temperature range [°C] [max]
- 105 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 221 °F
- Medium temperature range [°F] [min]
- -40 °F
- MinODP [bar]
- 0.02 bar
- MOPD[bar/psi]
- Coil Dependent
- Outlet connection type
- Solder, ODF
- Outlet size [mm]
- 12 mm
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R1233zd(E)
- Type designation
- Solenoid valve, Solder
- UL approved refrigerants
- R1233zd(E)
Standards & Compliance
- Material
- Brass
- Pressure Rating
- 70 bar (1015 psig)
- Temperature Range
- Medium -40 to 105 °C (defrost max 130 °C)
- HS Code
- 8481.80
Compatibility & Fitment
High-pressure (70 bar) solenoid valve suited to R744/CO2 and high-pressure HFC systems. Verify media and coil voltage before ordering. Coil ordered separately.
