Danfoss EVRB solenoid valve manifold, 3/8 in NPT thread, steel body, 65 bar, NC
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss EVRB solenoid valve manifold block, NC, 3/8 in NPT thread, steel body, 65 bar. Modular manifold combining stop/regulating valve, filter, sight glass and stop/check valve. OEM P/N 032F6392. Coil ordered separately.
Technical Specifications
- Type
- EVRB valve manifold
- Function
- NC (normally closed)
- Inlet connection
- Thread, NPT, 3/8 in
- Outlet connection
- Thread, NPT, 3/8 in
- Max working pressure
- 65 bar (943 psig)
- Media
- R134a, R22/R407C, R23, R404A/R507A, R407A, R410A, R717
- Body material
- Steel
- Manifold components
- stop/reg. valve, filter, blank top cover, sight glass, stop/check valve
- Packing
- Multi pack, 2 pc
- Net weight
- 2.48 kg
- Gross weight
- 2.58 kg
- EAN
- 5715255147817
- Inlet connection type
- Thread; NPT
- Outlet connection type
- Thread; NPT
- Manual operation option
- No
- Volume
- 2.236 Liter
- Product group
- Solenoid valves
- Product Name Description
- Solenoid valve
- MPN
- 032F6392
- Actuator system [mm]
- 13.5 mm
- Approval
- EAC
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Coil
- No
- Direction
- Angleway
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Inlet size [in]
- 3/8 in
- Max. Working Pressure [bar]
- 65 bar
- Max. Working Pressure [psig]
- 943 psig
- Module 1
- Stop/reg. valve
- Module 2
- Filter
- Module 3
- Blank top cover
- Module 4
- Sight glass
- Module 5
- Stop/check valve
- Outlet size [in]
- 3/8 in
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R134a
- Type designation
- Valve manifold
Standards & Compliance
- Material
- Steel
- Pressure Rating
- 65 bar (943 psig)
- HS Code
- 8481.80
Compatibility & Fitment
Manifold-mounted solenoid valve, NPT connection. Verify manifold build, media and coil voltage before ordering. Coil ordered separately.
Product Documentation
More from Danfoss
Danfoss

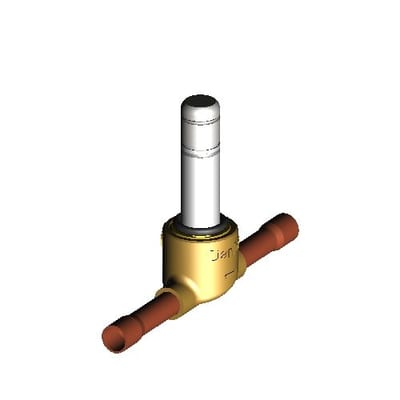

Danfoss EVG 2 solenoid valve, 1/4 in ODF solder, 45 bar, orifice 2.3 mm, NC
032F6600
Danfoss

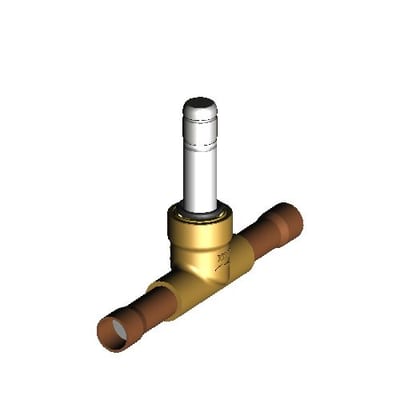

Danfoss EVG 3 solenoid valve, 3/8 in ODF solder, 45 bar, Kv 0.3 m³/h, NC
032F6602
Danfoss

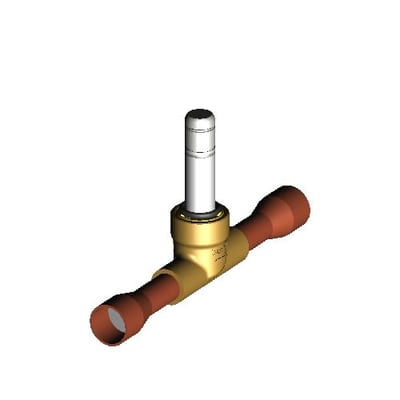

Danfoss EVG 6 solenoid valve, 1/2 in ODF solder, 35 bar, Kv 0.54 m³/h, NC
032F6604
Danfoss
Danfoss EVU 5 solenoid valve, 3/8 in ODF solder, brass body, 70 bar, Kv 0.65 m³/h, NC
032F7000
Danfoss
Danfoss EVU 5 solenoid valve, 10 mm ODF solder, brass body, 70 bar, Kv 0.65 m³/h, NC
032F7001
Danfoss

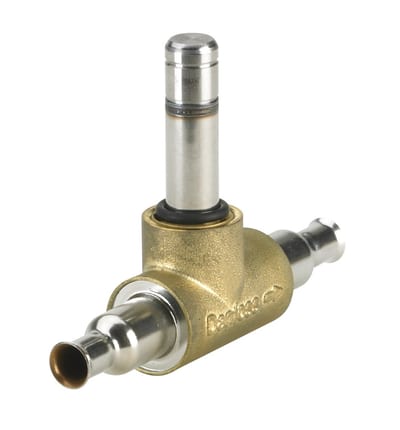

Danfoss EVU 5 solenoid valve, 12 mm ODF solder, brass body, 70 bar, Kv 0.65 m³/h, NC
032F7003
Danfoss
Danfoss EVU 1 solenoid valve, 6 mm ODF solder, brass body, 70 bar, Kv 0.1 m³/h, NC
032F7004
Danfoss

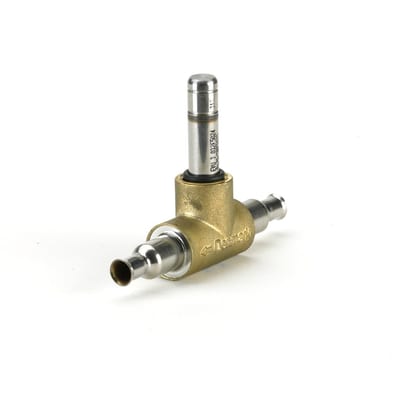

Danfoss EVU 1 solenoid valve, 1/4 in ODF solder, brass body, 70 bar, Kv 0.1 m³/h, NC
