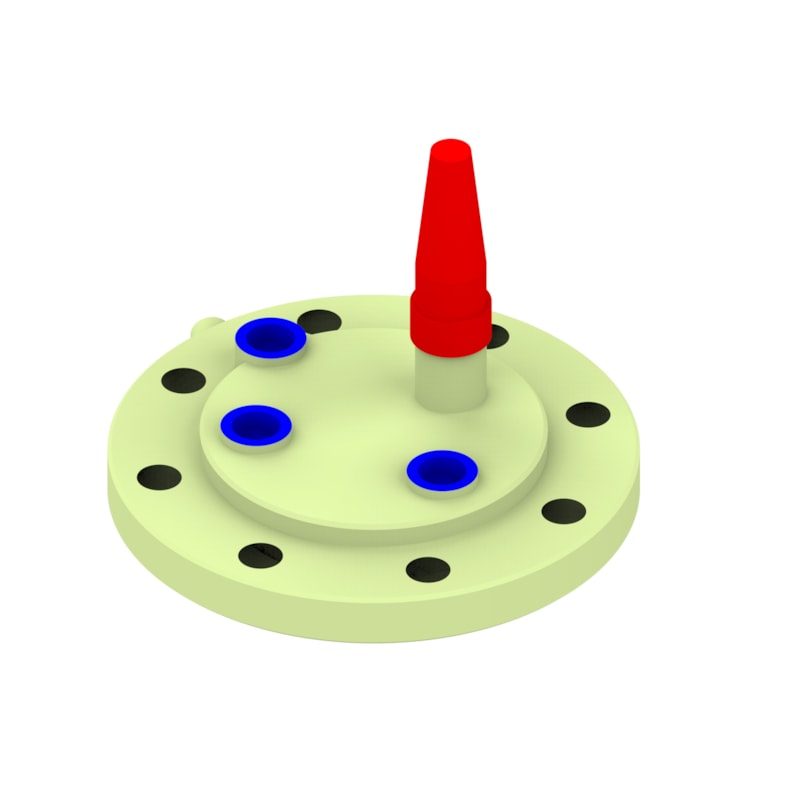

Danfoss top cover ICS3 125 (spare part, steel)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss top cover (bonnet) spare part for the ICS 125 valve (ICS3 125). Danfoss code number 027H7143. Steel top cover supplied with gasket and manual spindle; P2 port (nipple) for external pilot pressure and an internal-thread blind plug for a pressure gauge. Supports three function modules.
Technical Specifications
- Brand
- Danfoss
- Type
- top cover (bonnet) spare part
- Code number
- 027H7143
- Fits
- ICS 125 (ICS3 125)
- Product group
- ICS 125 spare parts
- Parts included
- top cover, gasket, manual spindle
- Function modules supported
- 3
- Pilot connection
- P2 port (nipple) for external pilot pressure
- Gauge connection
- internal thread with blind plug
- Body material
- Steel
- Volume
- 16.732 L
- EAN
- 5702428231503
- Net weight
- 17.19 kg; gross weight: 17.33 kg
- REACH Candidate List
- no substances listed
- EU RoHS / China RoHS
- compliant
- China RoHS compliance
- Yes
- EU RoHS compliance
- Yes
- Ext pilot pressure connection
- Nipple (P2 port)
- Pilot connection configuration
- P: Parallel connection
- Pressure gauge connection
- Int. thread with blind plug
- REACH Candidate List substances
- No
- Refrigerants
- R134a
- Top cover
- 3 function modules
- Used for product
- ICS 125
Standards & Compliance
- Material
- Steel
- Classification / Approval
- EU RoHS, China RoHS
- HS Code
- 8481.90
Compatibility & Fitment
Fits the Danfoss ICS 125 valve. Confirm the valve size and variant before ordering.
