Danfoss top cover ICM 100 (spare part, steel)
Pricing
Request a quote
We reply within 24 hours
Product Description

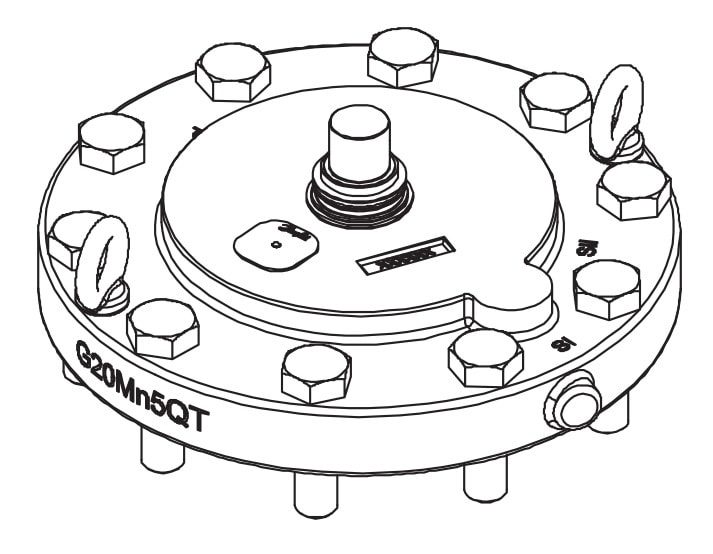

Danfoss top cover (bonnet) spare part for the ICM 100 valve. Danfoss code number 027H7133. Steel top cover supplied with gasket and manual spindle; P2 port (nipple) for external pilot pressure and an internal-thread blind plug for a pressure gauge.
Technical Specifications
- Brand
- Danfoss
- Type
- top cover (bonnet) spare part
- Code number
- 027H7133
- Fits
- ICM 100
- Product group
- ICM 100 spare parts
- Parts included
- top cover, gasket, manual spindle
- Pilot connection
- P2 port (nipple) for external pilot pressure
- Gauge connection
- internal thread with blind plug
- Body material
- Steel
- EAN
- 5702428231411
- Net weight
- 10.095 kg; gross weight: 11.634 kg
- REACH Candidate List
- no substances listed
- EU RoHS / China RoHS
- compliant
- China RoHS compliance
- Yes
- EU RoHS compliance
- Yes
- Ext pilot pressure connection
- Nipple (P2 port)
- Outlet connection size [mm]
- 100 mm
- Pressure gauge connection
- Int. thread with blind plug
- REACH Candidate List substances
- No
- Refrigerants
- R134a
- Used for product
- ICM 100
Standards & Compliance
- Material
- Steel
- Classification / Approval
- EU RoHS, China RoHS
- HS Code
- 8481.90
Compatibility & Fitment
Fits the Danfoss ICM 100 valve. Confirm the valve size and variant before ordering.
