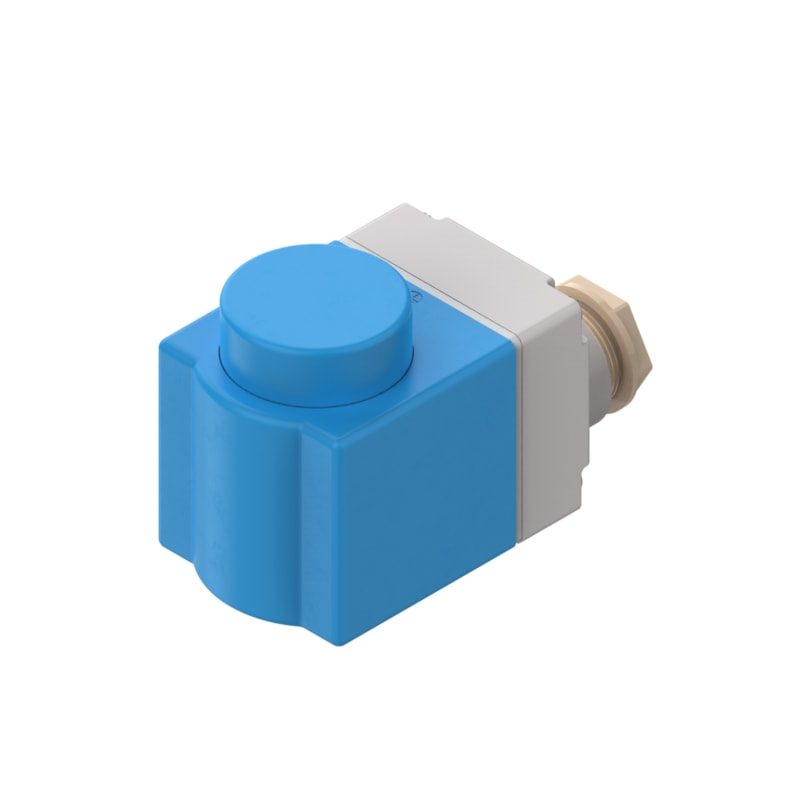

Danfoss BE100CS solenoid valve coil 100V AC 50/60Hz clip-on terminal box IP67 018F6729
Danfoss · HVAC & Refrigeration · Solenoid Valves
Danfoss BE100CS clip-on solenoid coil, 100 V AC 50/60 Hz, terminal box (Pg 13.5), IP67, Class H insulation. Encapsulated coil with 13.5 mm clip-on actuator for the EV-series valve range. OEM P/N 018F6729. Valve body ordered separately.
Specifications
- Part number
- 018F6729
- HS code
- 8505.90
- Material
- Encapsulated coil, Class H insulation
- Temperature range
- -40 to +80 °C
- IP rating
- IP67
Compatibility
Clip-on coil — mounts on the EV-series valve actuator (13.5 mm) without tools. Terminal box (Pg 13.5). No prior BE100CS in catalogue. Verify valve series, supply voltage and connection type before ordering. Valve body ordered separately.
Standards
- IEC 60085 (Class H insulation)
- VDE 0580
- EN 60730-1
- LVD 2014/35/EU
Approvals
