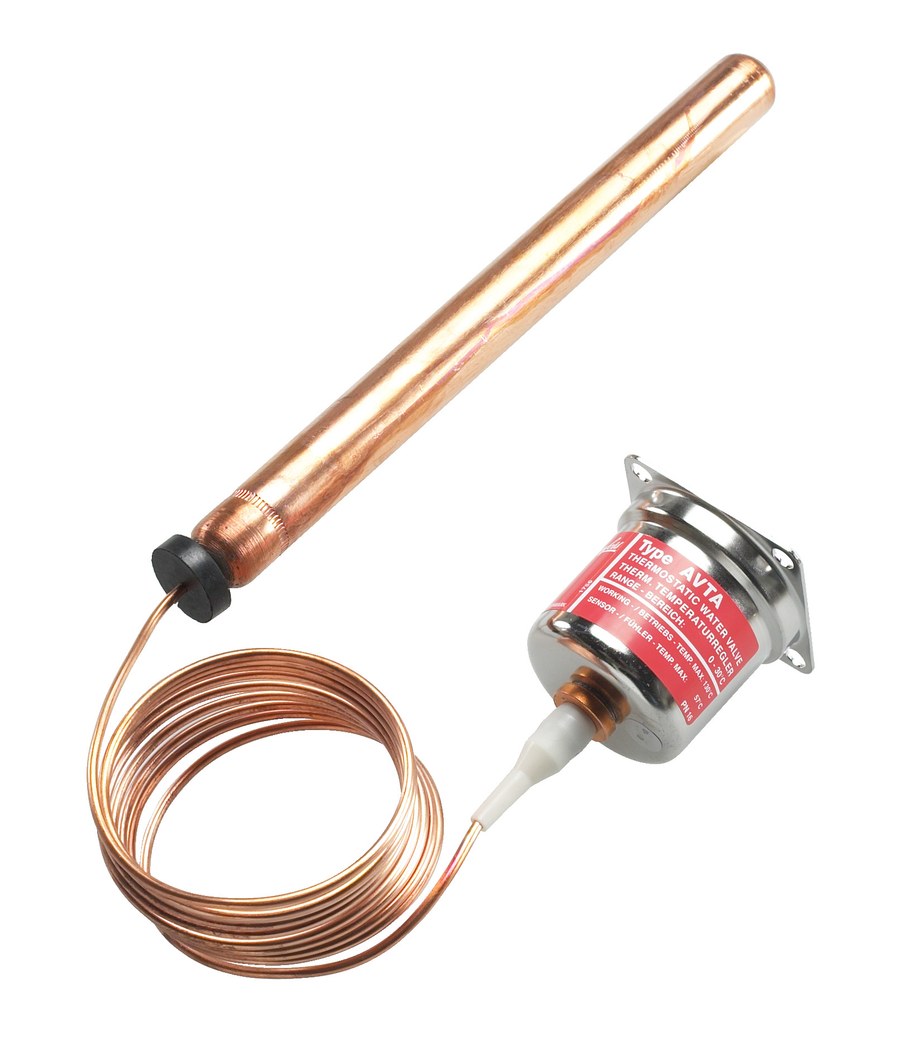

Danfoss Thermostatic Element for AVTA / AVTB — Universal Charge 0–30 °C, 5 m Capillary — Spare Part
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss thermostatic element, genuine OEM spare code 003N0077, for AVTA / AVTB (and FJVA / FJV) self-acting temperature-regulating valves. Hermetically sealed universal-charge unit comprising sensor, capillary and bellows; it converts a rising medium temperature into the force that opens the valve — no external power needed. Regulating range 0–30 °C (AVTA / FJVA). Sensor 18 x 210 mm, capillary 5000 mm, max. sensor temperature 57 °C. Replaces a worn or wrongly-ranged element without changing the valve body. EAN 5702423006878.
Technical Specifications
- Brand
- Danfoss
- Part number
- 003N0077
- Type
- Thermostatic element — spare part for AVTA / AVTB (and FJVA / FJV) self-acting valves
- Category
- HVAC & Refrigeration — Water Regulating Valves
- Function
- Hermetically sealed sensor + bellows charge unit; drives the valve on rising temperature
- Charge type
- Universal
- Regulating range (AVTA / FJVA)
- 0–30 °C
- Sensor
- 18 x 210 mm
- Capillary tube length
- 5000 mm
- Max. sensor temperature
- 57 °C
- Net weight
- 0.113 kg
- EAN
- 5702423006878
- Compliance
- China RoHS; EU RoHS out of scope
- HS code
- 8481.90 (parts of taps, cocks, valves)
- Compatible with
- AVTA / AVTB — Universal Charge 0–30 °C
- Product group
- Water valves spare parts
- Cap. tube length fraction [in]
- 196 3/4 in
- Capillary tube length [mm]
- 5000 mm
- China RoHS compliance
- Yes
- EU RoHS compliance
- Out of scope
- Max. sensor temperature [°C]
- 57 °C
- Max. sensor temperature [°F]
- 134.6 °F
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor size (Ø x L) [in]
- 23/32 x 8 1/4 in
- Sensor size (Ø x L) [mm]
- 18 x 210 mm
- Temp. range AVTA/FJVA [°C] [max]
- 30 °C
- Temp. range AVTA/FJVA [°C] [min]
- 0 °C
- Temp. range AVTA/FJVA [°F] [max]
- 86 °F
- Temp. range AVTA/FJVA [°F] [min]
- 32 °F
- Temp. range AVTB/FJV [°C] [max]
- 30 °C
- Temp. range AVTB/FJV [°C] [min]
- 0 °C
- Temp. range AVTB/FJV [°F] [max]
- 86 °F
- Temp. range AVTB/FJV [°F] [min]
- 32 °F
- Type designation
- Thermostatic element
- Used for product
- AVTA
Standards & Compliance
- Size / Series
- AVTA, AVTB
- Material
- Copper / brass sensor, steel bellows
- Pressure Rating
- Max. sensor pressure 25 bar (365 psi)
- Temperature Range
- Regulating range 0–30 °C; max. sensor 57 °C
- HS Code
- 8481.90
Compatibility & Fitment
Fits AVTA and AVTB (also FJVA / FJV) valve bodies. Match the charge type (Universal) and regulating range (0–30 °C) to the original element; Mass-charge elements require the sensor to sit above the valve.
