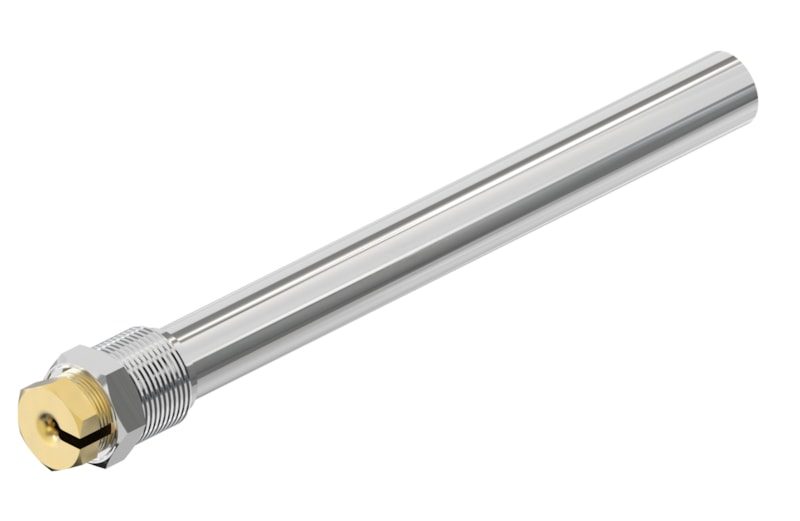

Danfoss Sensor Pocket for AVTA / AVTB — Stainless Steel, NPT 3/4-14, 220 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss sensor pocket (thermowell), genuine OEM code 003N0053, for AVTA / AVTB self-acting water valves. Stainless-steel pocket that lets the thermostatic-element sensor be removed without draining the system and isolates the sensor from the pressurised medium. NPT 3/4-14 (ANSI/ASME B1.20.1) connection; pocket length 220 mm; sized for the 18 x 210 mm sensor. EAN 5702423198887.
Technical Specifications
- Brand
- Danfoss
- Part number
- 003N0053
- Type
- Sensor pocket (thermowell) — AVTA / AVTB accessory
- Category
- HVAC & Refrigeration — Water Regulating Valves
- Material
- Stainless steel
- Connection
- NPT 3/4-14 (ANSI/ASME B1.20.1)
- Sensor pocket length
- 220 mm (8 11/16 in)
- For sensor
- 18 x 210 mm
- Net weight
- 0.181 kg
- Compliance
- China RoHS; EU RoHS out of scope
- EAN
- 5702423198887
- HS code
- 8481.90 (parts of taps, cocks, valves)
- Product group
- Water valves accessories
- China RoHS compliance
- Yes
- Connection Internal/External
- External
- Connection size [in]
- 3/4 - 14
- Connection standard
- ANSI/ASME B1.20.1
- Connection type
- NPT
- EU RoHS compliance
- Out of scope
- Material Spec.
- Stainless steel
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor pocket length min. [in]
- 8 11/16 in
- Sensor pocket length min. [mm]
- 220 mm
- Sensor size (Ø x L) [in]
- 23/32 x 8 1/4 in
- Sensor size (Ø x L) [mm]
- 18 x 210 mm
- Type designation
- Sensor pocket
- Used for product
- AVTA
Standards & Compliance
- Size / Series
- For 18 x 210 mm sensor
- Material
- Stainless steel
- Thread Standard
- NPT 3/4-14
- HS Code
- 8481.90
Compatibility & Fitment
Fits AVTA / AVTB sensors of 18 x 210 mm. Lets the sensor be withdrawn without opening the circuit; apply heat-conductive compound (003N0448 range) inside the pocket for accurate response.
