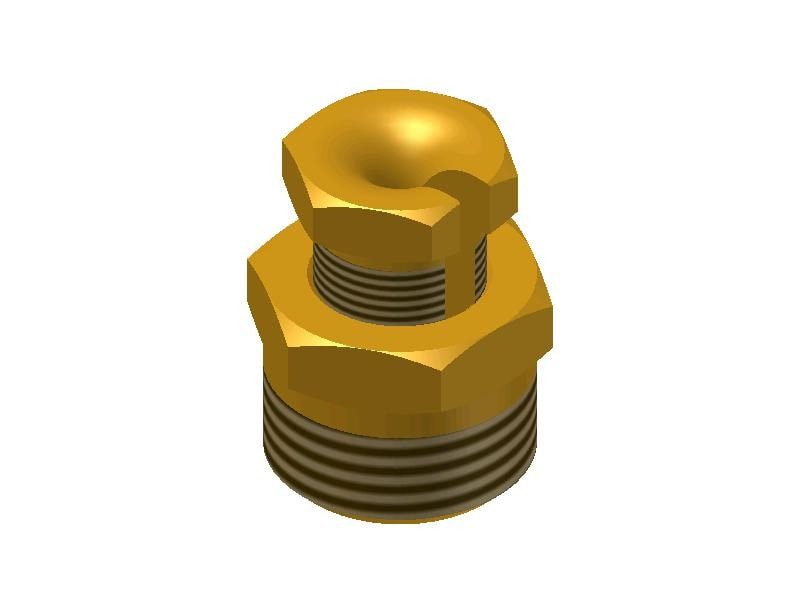

Danfoss Capillary Tube Gland for AVTA / AVTB — NPT 1/2-14
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss capillary tube gland, genuine OEM code 003N0157, for AVTA / AVTB self-acting water valves. External gland that seals and secures the thermostatic-element capillary where it enters the valve top. NPT 1/2-14 (ANSI/ASME B1.20.1). EAN 5702423018123.
Technical Specifications
- Brand
- Danfoss
- Part number
- 003N0157
- Type
- Capillary tube gland — AVTA / AVTB accessory
- Category
- HVAC & Refrigeration — Water Regulating Valves
- Connection
- NPT 1/2-14 external (ANSI/ASME B1.20.1)
- For product
- AVTA, AVTB
- Net weight
- 0.048 kg
- EAN
- 5702423018123
- HS code
- 8481.90 (parts of taps, cocks, valves)
- Code number
- 003N0157
- Product group
- Water valves accessories
- Type designation
- Capillary tube gland
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Capillary tube gland Int/Ext
- External
- Capillary tube gland size
- 1/2-14
- Capillary tube gland standard
- ANSI/ASME B1.20.1
- Capillary tube gland type
- NPT
- Sensor size (Ø x L)
- 9.5 x 150 mm; 9.5 x 180 mm
- EU RoHS compliance
- Out of scope
- Capillary tube gland size [in]
- 1/2-14
- China RoHS compliance
- Out of scope
- Sensor size (Ø x L) [in]
- 3/8 x 7 3/32 in
- Sensor size (Ø x L) [mm]
- 9.5 x 150 mm
- Used for product
- AVTA
Standards & Compliance
- Size / Series
- NPT 1/2-14
- Material
- Brass
- Thread Standard
- NPT 1/2-14
- HS Code
- 8481.90
Compatibility & Fitment
Fits AVTA / AVTB valve tops with an NPT 1/2-14 gland port; seals and strain-relieves the element capillary.
