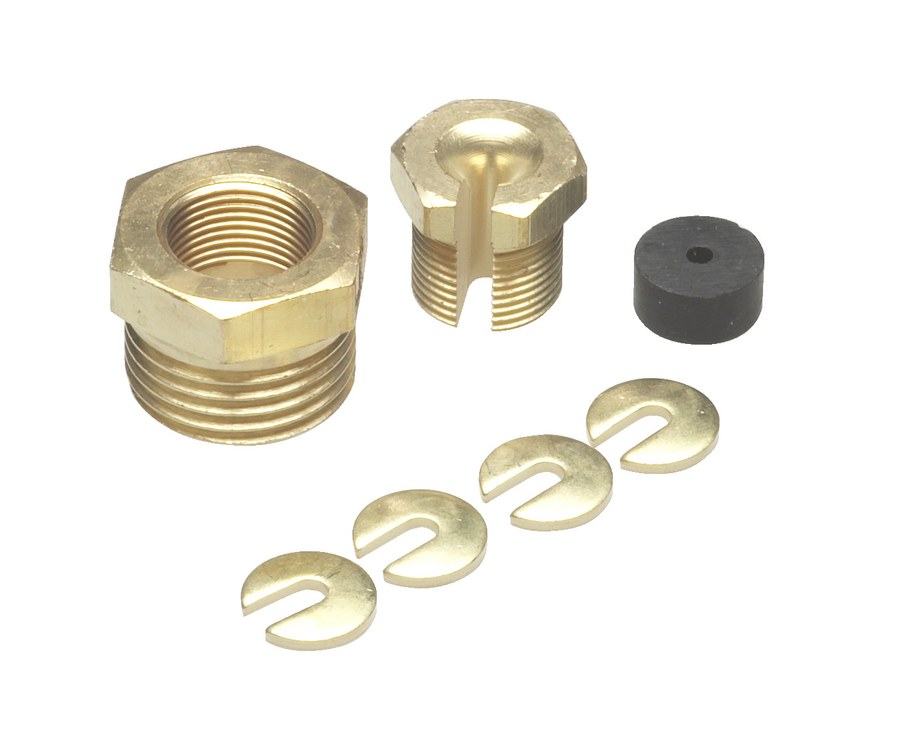

Danfoss Capillary Tube Gland for AVTA / AVTB — NPT 3/4
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss capillary tube gland, genuine OEM code 003N0056, for AVTA / AVTB self-acting water valves. External gland that seals and secures the thermostatic-element capillary at the valve top, sized for the 18 x 210 mm sensor build. NPT 3/4 (ANSI/ASME B1.20.1). EAN 5702423011582.
Technical Specifications
- Brand
- Danfoss
- Part number
- 003N0056
- Type
- Capillary tube gland — AVTA / AVTB accessory
- Category
- HVAC & Refrigeration — Water Regulating Valves
- Connection
- NPT 3/4 external (ANSI/ASME B1.20.1)
- For sensor build
- 18 x 210 mm
- For product
- AVTA, AVTB
- Net weight
- 0.072 kg
- Compliance
- China RoHS; EU RoHS out of scope
- EAN
- 5702423011582
- HS code
- 8481.90 (parts of taps, cocks, valves)
- Code number
- 003N0056
- Product group
- Water valves accessories
- Type designation
- Capillary tube gland
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Capillary tube gland Int/Ext
- External
- Capillary tube gland size
- 3/4
- Capillary tube gland standard
- ANSI/ASME B1.20.1
- Capillary tube gland type
- NPT
- Sensor size (Ø x L)
- 18 x 210 mm
- EU RoHS compliance
- Out of scope
Standards & Compliance
- Size / Series
- NPT 3/4
- Material
- Brass
- Thread Standard
- NPT 3/4
- HS Code
- 8481.90
Compatibility & Fitment
Fits AVTA / AVTB valve tops with an NPT 3/4 gland port (18 x 210 mm sensor build); seals and strain-relieves the element capillary.
