Danfoss MBS 3000 Pressure Transmitter 0–1 bar 4–20 mA — 060G1113
Danfoss · Sensors & Instrumentation · Pressure Transmitters

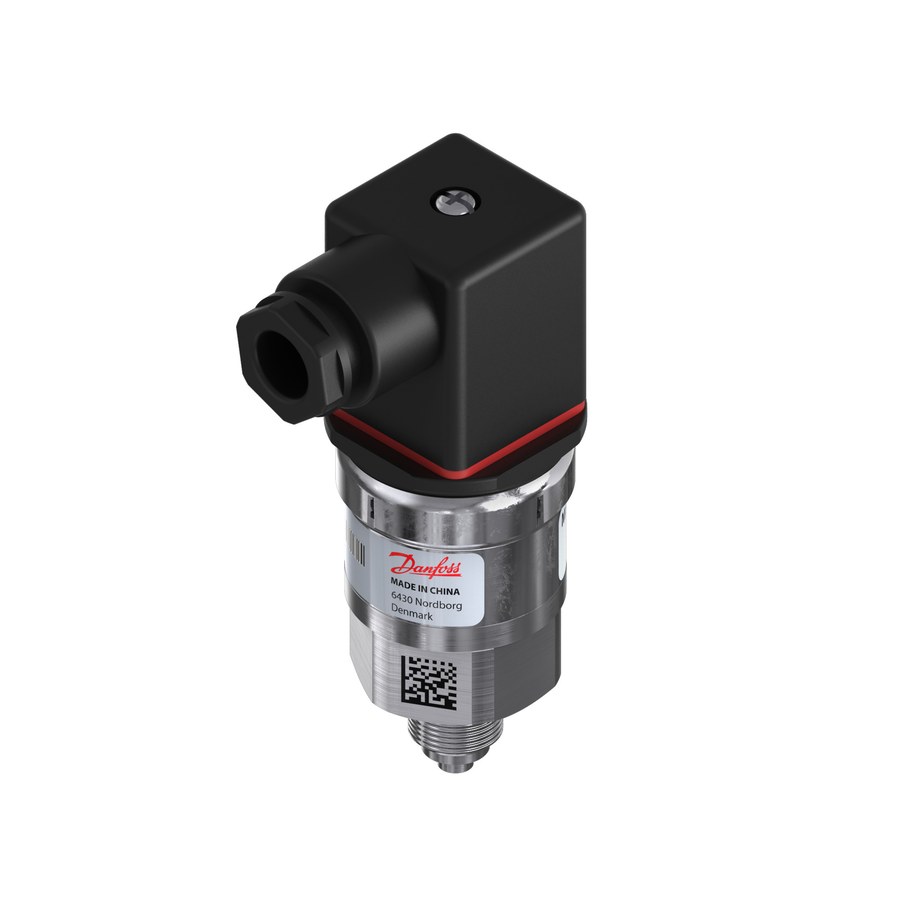

Danfoss MBS 3000 compact pressure transmitter, genuine OEM code 060G1113. Two-wire 4–20 mA output over a measuring range of 0–1 bar (0–14.5 psi), supply voltage 9–32 V DC. Pressure connection G 1/4 male (EN 837, 27 mm hex); electrical connection Angular connector Pg 9 (EN 175301-803-A). Accuracy ≤ ±0.5 % FS (typical). Wetted parts AISI 316L stainless steel; enclosure IP65. Approvals: ATEX Ex ec IIA T4 Gc, CE, UL Recognized (C UL US). EAN 5702423088225.
Specifications
- Part number
- 060G1113
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0–1 bar (0–14.5 psi)
- Temperature range
- Compensated 0 to +80 °C
- IP rating
- IP65
- Standard size
- G 1/4 male (EN 837, 27 mm hex)
- Thread standard
- G 1/4 male (EN 837, 27 mm hex)
Compatibility
Select the measuring range and pressure/electrical connection to suit the application. 2-wire 4–20 mA loop; observe supply voltage 9–32 V DC and load limits.
