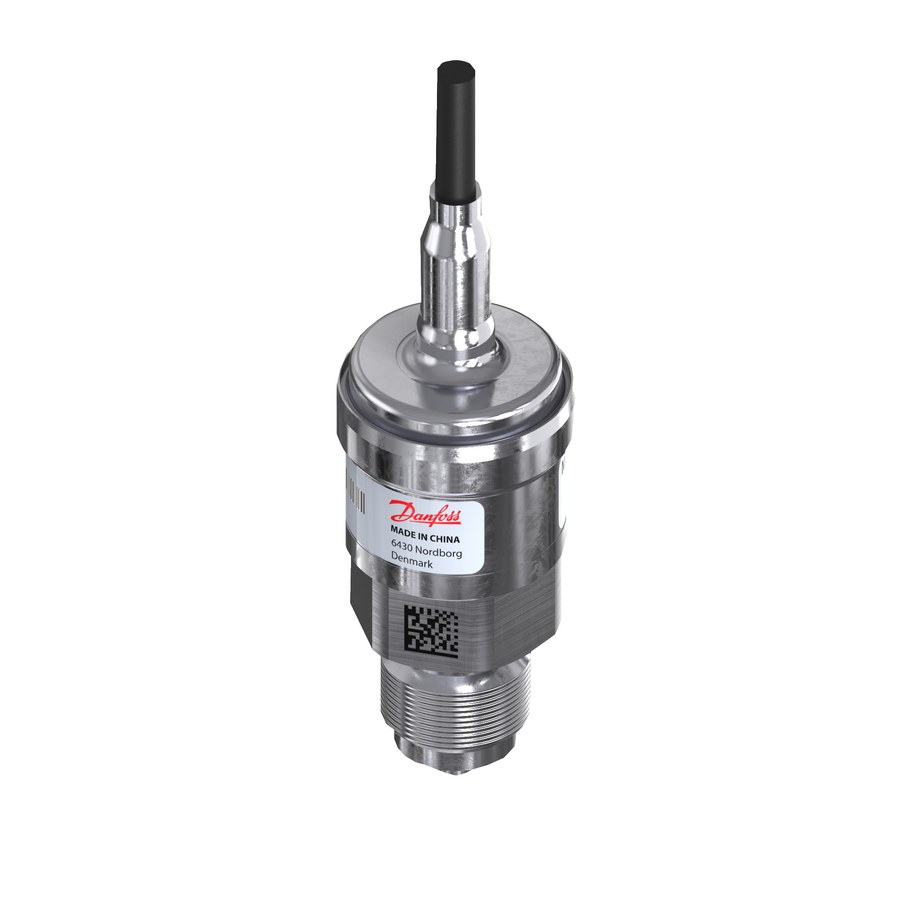

Danfoss MBS 3300 Pressure Transmitter 0–16 bar 4–20 mA — 060G6113
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBS 3300 compact pressure transmitter, genuine OEM code 060G6113. Two-wire 4–20 mA output over a measuring range of 0–16 bar (0–232 psi), supply voltage 9–32 V DC. Pressure connection G 1/2 male (EN 837); electrical connection Cable, 8 m screened. Accuracy ≤ ±0.5 % FS (typical). Wetted parts AISI 316L stainless steel; enclosure IP65. Approvals: ATEX Ex ec IIA T4 Gc, CE, UL Recognized. EAN 5702428480567.
Technical Specifications
- Brand
- Danfoss
- Part number
- 060G6113
- Type
- MBS 3300 pressure transmitter
- Category
- Sensors & Instrumentation — Pressure Transmitters
- Measuring range
- 0–16 bar (0–232 psi)
- Reference
- gauge (relative)
- Output signal
- 4–20 mA (2-wire)
- Supply voltage
- 9–32 V DC
- Accuracy
- ≤ ±0.5 % FS typical, ≤ ±1.0 % FS maximum
- Pressure connection
- G 1/2 male (EN 837)
- Electrical connection
- Cable, 8 m screened
- Wetted parts
- AISI 316L stainless steel
- Ambient temperature
- -30 to +100 °C
- Compensated temperature range
- 0 to +100 °C
- Medium temperature
- -40 to +125 °C
- Enclosure rating
- IP65
- EAN
- 5702428480567
- Approvals
- ATEX Ex ec IIA T4 Gc, CE, UL Recognized
- HS code
- 9026.20
- Net weight
- 0.891 Kilogram
- Product group
- Sensors
- + supply
- Black
- - common
- Blue
- Accuracy, max. [±FS%]
- 1 %
- Accuracy, typical [±FS%]
- 0.5 %
- Adj. zero point and span
- No
- Ambient temperature range [°C] [max]
- 100 °C
- Ambient temperature range [°C] [min]
- -30 °C
- Ambient temperature range [°F] [max]
- 212 °F
- Ambient temperature range [°F] [min]
- -30 °F
- Approval
- ATEX
- Approval comments
- ATEX Ex ec IIA T4 Gc
- Cable length [in]
- 315 in
- Cable length [m]
- 8 m
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Comments
- SCREEN: CONNECTED TO ENCLOSURE
- Compensated temp. range [°C] [max]
- 100 °C
- Compensated temp. range [°C] [min]
- 0 °C
- Compensated temp. range [°F] [max]
- 212 °F
- Compensated temp. range [°F] [min]
- 32 °F
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. comments
- Screened Ship
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flush diaphragm
- No
- High Clipping Level
- 22.4
- In scope of WEEE
- No
- International Article Number
- 5702428480567
- Intrinsically safe
- No
- Low Clipping level
- 3.6
- Medium temperature range [°C] [max]
- 125 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 257 °F
- Medium temperature range [°F] [min]
- -40 °F
- Non-linearity BFSL [±FS%]
- 0.2 %
- Output signal [mA] [max]
- 20 mA
- Output signal [mA] [min]
- 4 mA
- Overload pressure max. [bar]
- 96 bar
- Overload pressure max. [psi]
- 1392 psi
- Pressure connection HEX [mm]
- 27 mm
- Pressure connection size
- 1/2
- Pressure connection standard
- EN 837
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure range [bar] [max]
- 16 bar
- Pressure range [bar] [min]
- 0 bar
- Pressure range [psi] [max]
- 232 psi
- Pressure range [psi] [min]
- 0 psi
- Pressure reference
- Gauge (relative)
- Pulse-snubber
- No
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Response time max. [ms]
- 4 ms
- Specification key
- MBS 3300-2211-DJAB08-0
- Supply voltage [V] DC [max]
- 32 V
- Supply voltage [V] DC [min]
- 9 V
- UL mark
- Yes
Standards & Compliance
- Size / Series
- G 1/2 male (EN 837)
- Material
- AISI 316L stainless steel wetted parts
- Thread Standard
- G 1/2 male (EN 837)
- Pressure Rating
- 0–16 bar (0–232 psi)
- Temperature Range
- Compensated 0 to +100 °C; medium -40 to +125 °C
- IP Rating
- IP65
- HS Code
- 9026.20
Compatibility & Fitment
Select the measuring range and pressure/electrical connection to suit the application. 2-wire 4–20 mA loop; observe supply voltage 9–32 V DC and load limits.
