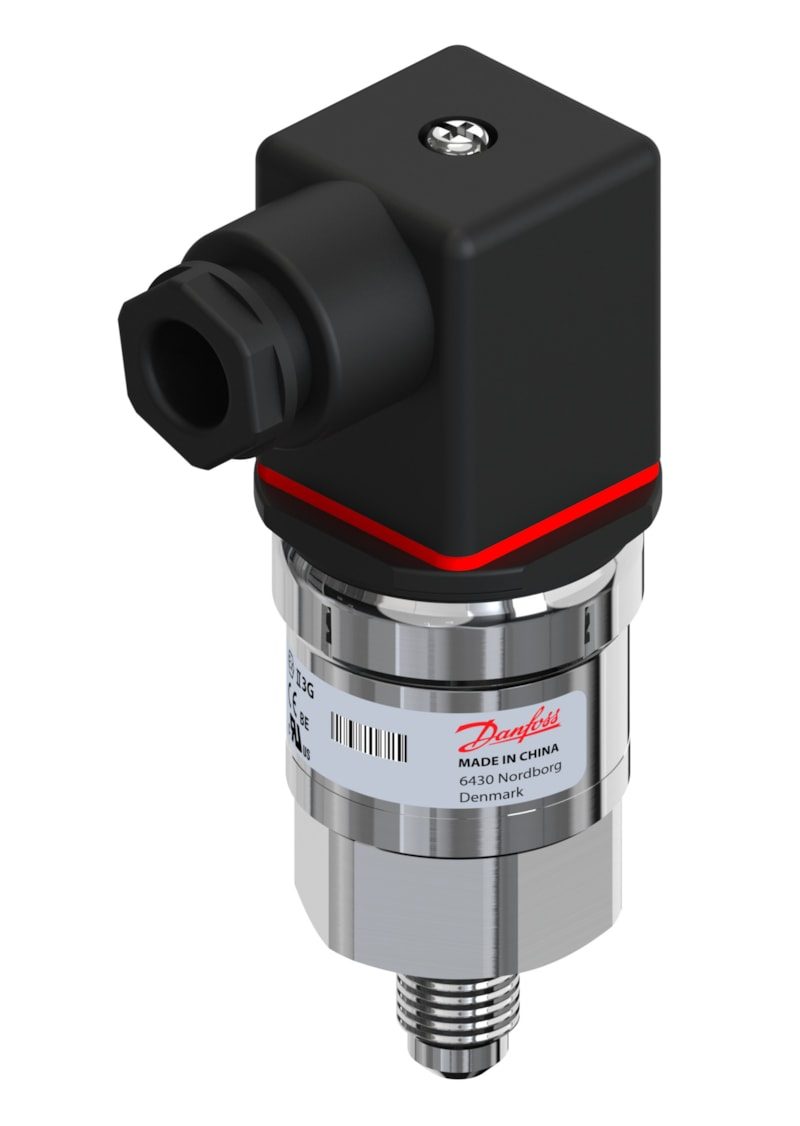

Danfoss AKS 3000 Pressure Transmitter 0–30 bar 4–20 mA — 060G1327
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss AKS 3000 pressure transmitter, genuine OEM code 060G1327. Output 4–20 mA (2-wire) over a measuring range of 0–30 bar (0–435 psi), supply voltage 9–32 V DC. Pressure connection 7/16-20 UNF male, flare 1/4 in; electrical connection Angular connector Pg 9 (EN 175301-803-A). Accuracy ≤ ±1.0 % FS (typical). Wetted parts AISI 316L stainless steel; enclosure IP65. Approvals: ATEX Ex ec IIA T4 Gc, CE, UL Recognized (C UL US), GOST. EAN 5702423103560.
Specifications
- Part number
- 060G1327
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0–30 bar (0–435 psi)
- Temperature range
- Compensated 0 to +80 °C
- IP rating
- IP65
- Standard size
- 7/16-20 UNF male, flare 1/4 in
- Thread standard
- 7/16-20 UNF male, flare 1/4 in
Compatibility
Select the measuring range and pressure/electrical connection to suit the application. Observe supply voltage and load limits.
