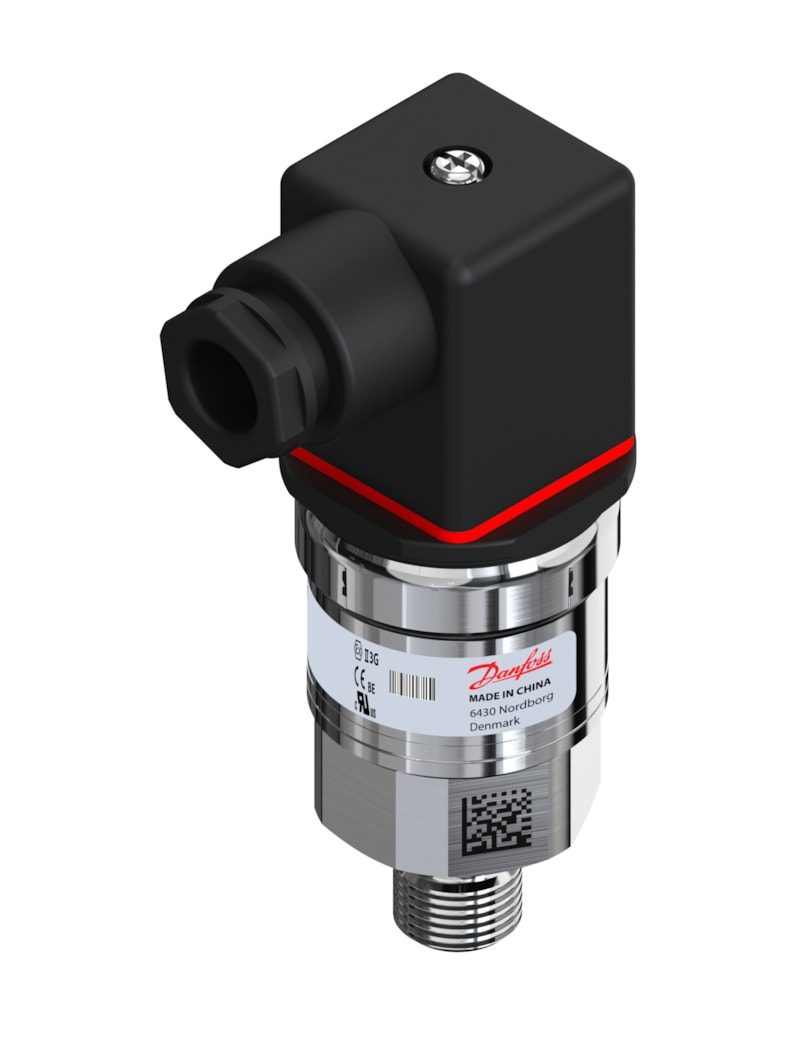

Danfoss MBS 3050 Pressure Transmitter 0–250 bar ratiometric — 060G1405
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3050 pressure transmitter, genuine OEM code 060G1405. Output 0.5–4.5 V ratiometric (3-wire) over a measuring range of 0–250 bar (0–3625 psi), supply voltage 5 V DC (4.5–5.5 V). Pressure connection G 1/4 male (DIN 3852-G); electrical connection Angular connector Pg 9 (EN 175301-803-A). Accuracy ≤ ±0.3 % FS typical, ≤ ±1.0 % FS maximum. Wetted parts AISI 316L stainless steel; enclosure IP65. Approvals: ATEX Ex ec IIA T4 Gc, CE, UL Recognized (C UL US). EAN 5702423097883.
Specifications
- Part number
- 060G1405
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0–250 bar (0–3625 psi)
- Temperature range
- Compensated 0 to +80 °C
- IP rating
- IP65
- Standard size
- G 1/4 male (DIN 3852-G)
- Thread standard
- G 1/4 male (DIN 3852-G)
Compatibility
Select the measuring range and pressure/electrical connection to suit the application. Observe supply voltage and load limits.
