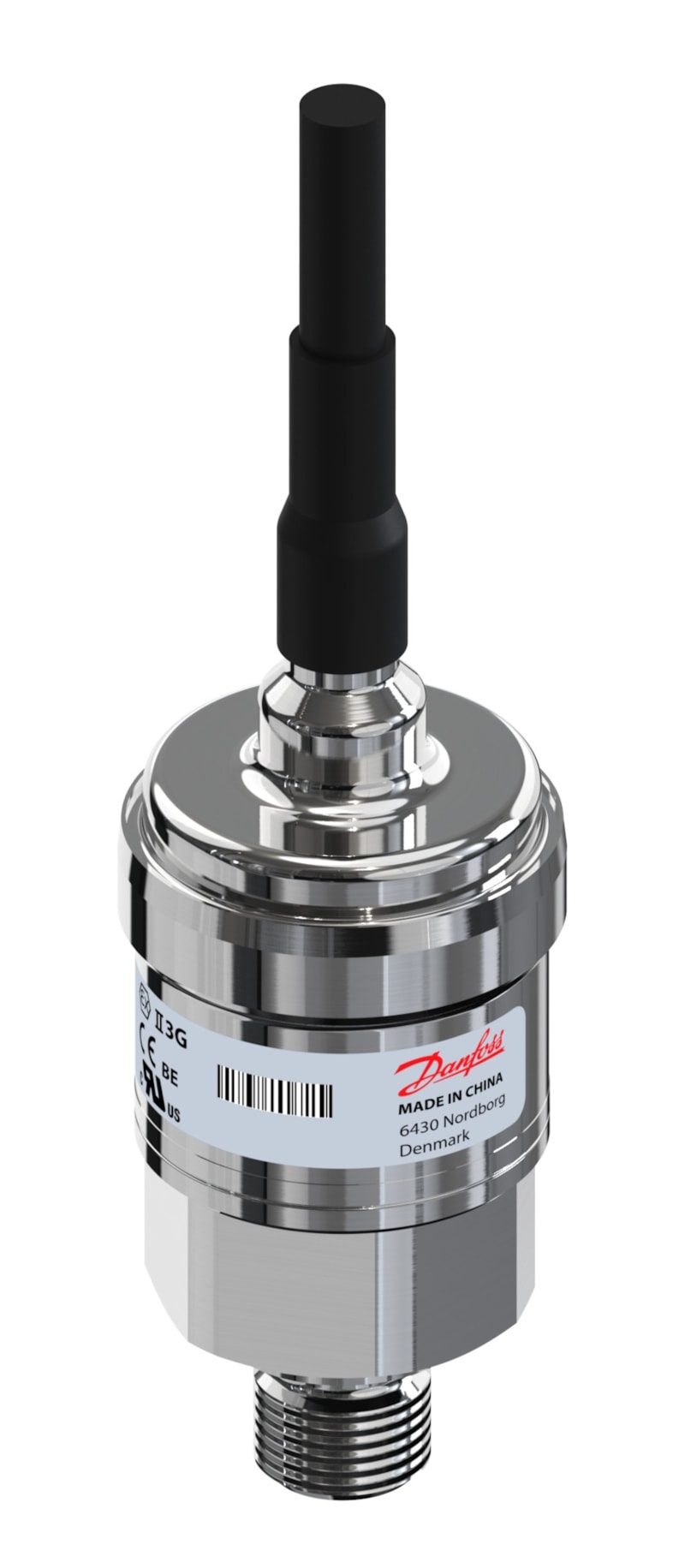

Danfoss MBS 3250 Pressure Transmitter 0–60 bar 4–20 mA
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBS 3250 pressure transmitter, genuine OEM code 060G6151. Output 4–20 mA (2-wire) over a measuring range of 0–60 bar (0–870 psi), supply voltage 9–32 V DC. Pressure connection G 1/4 male (DIN 3852-E / ISO 1179-2 Form E); electrical connection Cable 0.5 m, screened. Accuracy ≤ ±0.5 % FS typical, ≤ ±1.0 % FS maximum. Wetted parts AISI 316L stainless steel; enclosure IP67. Approvals: ATEX Ex ec IIA T4 Gc, CE, UL Recognized (C UL US). EAN 5702423302932.
Technical Specifications
- Brand
- Danfoss
- Part number
- 060G6151
- Type
- MBS 3250 pressure transmitter
- Type designation
- MBS 3250-2831-DKGB04-1
- Category
- Sensors & Instrumentation — Pressure Transmitters
- Measuring range
- 0–60 bar (0–870 psi)
- Reference
- gauge (relative)
- Output signal
- 4–20 mA (2-wire)
- Supply voltage
- 9–32 V DC
- Accuracy
- ≤ ±0.5 % FS typical, ≤ ±1.0 % FS maximum
- Pressure connection
- G 1/4 male (DIN 3852-E / ISO 1179-2 Form E)
- Electrical connection
- Cable 0.5 m, screened
- Wetted parts
- AISI 316L stainless steel
- Ambient temperature
- -30 to +85 °C
- Compensated temperature range
- 0 to +80 °C
- Enclosure rating
- IP67
- Net weight
- 0.163 kg
- EAN
- 5702423302932
- Approvals
- ATEX Ex ec IIA T4 Gc, CE, UL Recognized (C UL US)
- HS code
- 9026.20
Standards & Compliance
- Size / Series
- G 1/4 male (DIN 3852-E / ISO 1179-2 Form E)
- Material
- AISI 316L stainless steel wetted parts
- Thread Standard
- G 1/4 male (DIN 3852-E / ISO 1179-2 Form E)
- Pressure Rating
- 0–60 bar (0–870 psi)
- Temperature Range
- Compensated 0 to +80 °C
- IP Rating
- IP67
- HS Code
- 9026.20
Compatibility & Fitment
Select the measuring range and pressure/electrical connection to suit the application. Observe supply voltage and load limits.
