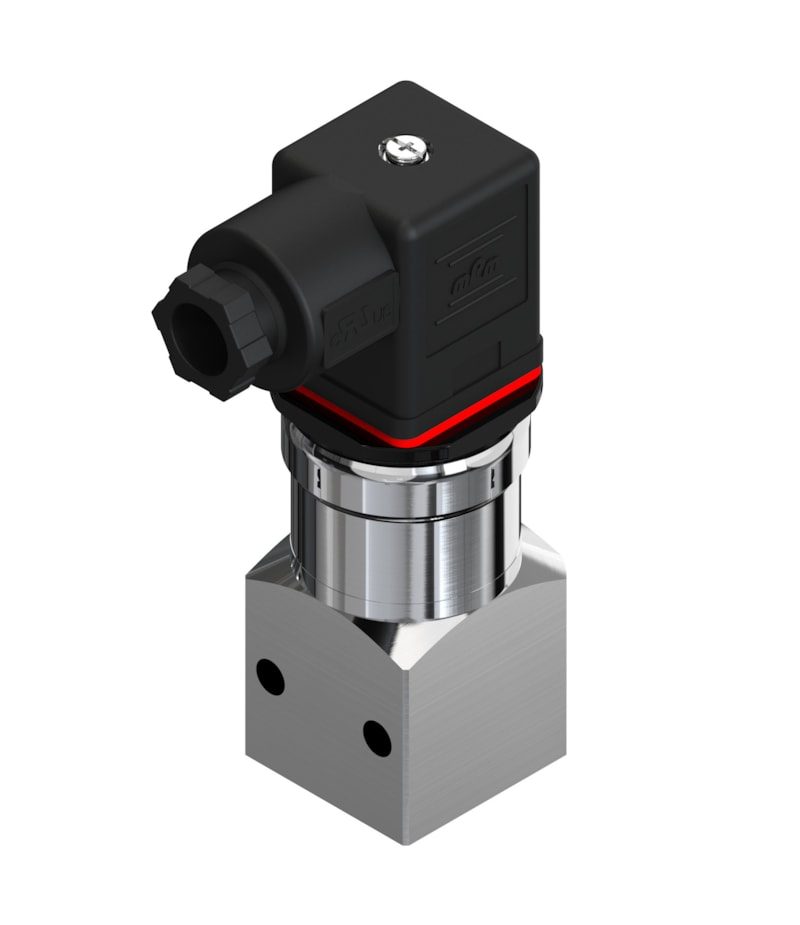

Danfoss MBS 3300 Pressure Transmitter 0–6 bar 4–20 mA — 060G6121
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBS 3300 pressure transmitter, genuine OEM code 060G6121. Output 4–20 mA (2-wire) over a measuring range of 0–6 bar (0–87 psi), supply voltage 9–32 V DC. Pressure connection Flange, port Ø2.5 female; electrical connection Angular connector Pg 9 (EN 175301-803-A). Accuracy ≤ ±0.5 % FS typical, ≤ ±1.0 % FS maximum. Wetted parts AISI 316L stainless steel; enclosure IP65. Approvals: ATEX Ex ec IIA T4 Gc, CE, UL Recognized (C UL US). EAN 5702423302673.
Technical Specifications
- Brand
- Danfoss
- Part number
- 060G6121
- Type
- MBS 3300 pressure transmitter
- Category
- Sensors & Instrumentation — Pressure Transmitters
- Measuring range
- 0–6 bar (0–87 psi)
- Reference
- gauge (relative)
- Output signal
- 4–20 mA (2-wire)
- Supply voltage
- 9–32 V DC
- Accuracy
- ≤ ±0.5 % FS typical, ≤ ±1.0 % FS maximum
- Pressure connection
- Flange, port Ø2.5 female
- Electrical connection
- Angular connector Pg 9 (EN 175301-803-A)
- Wetted parts
- AISI 316L stainless steel
- Ambient temperature
- -40 to +100 °C
- Compensated temperature range
- 0 to +80 °C
- Enclosure rating
- IP65
- Net weight
- 0.324 kg
- EAN
- 5702423302673
- Approvals
- ATEX Ex ec IIA T4 Gc, CE, UL Recognized (C UL US)
- HS code
- 9026.20
- Product group
- Sensors
- + supply
- Pin 1
- - common
- Pin 2
- Accuracy, max. [±FS%]
- 1 %
- Accuracy, typical [±FS%]
- 0.5 %
- Ambient temperature range [°C] [max]
- 100 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 212 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- ATEX
- Approval comments
- ATEX Ex ec IIA T4 Gc
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Compensated temp. range [°C] [max]
- 100 °C
- Compensated temp. range [°C] [min]
- 0 °C
- Compensated temp. range [°F] [max]
- 212 °F
- Compensated temp. range [°F] [min]
- 32 °F
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Male and Female
- Electrical connection size
- Pg 9
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flush diaphragm
- No
- High Clipping Level
- 22.4
- In scope of WEEE
- No
- International Article Number
- 5702423302673
- Intrinsically safe
- No
- Low Clipping level
- 3.6
- Medium temperature range [°C] [max]
- 125 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 257 °F
- Medium temperature range [°F] [min]
- -40 °F
- Non-linearity BFSL [±FS%]
- 0.2 %
- Output signal [mA] [max]
- 20 mA
- Output signal [mA] [min]
- 4 mA
- Overload pressure max. [bar]
- 36 bar
- Overload pressure max. [psi]
- 522 psi
- Pressure connection notes
- Block adapter with flange
- Pressure connection size
- Port Ø2.5
- Pressure connection standard
- N/A
- Pressure connection type
- Flange
- Pressure Male/Female
- Female
- Pressure range [bar] [max]
- 6 bar
- Pressure range [bar] [min]
- 0 bar
- Pressure range [psi] [max]
- 87 psi
- Pressure range [psi] [min]
- 0 psi
- Pressure reference
- Gauge (relative)
- Pulse-snubber
- No
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Response time max. [ms]
- 4 ms
- Specification key
- MBS 3300-1811-A1CD28-3
- Supply voltage [V] DC [max]
- 32 V
- Supply voltage [V] DC [min]
- 9 V
- UL mark
- Yes
Standards & Compliance
- Size / Series
- Flange, port Ø2.5 female
- Material
- AISI 316L stainless steel wetted parts
- Thread Standard
- Flange, port Ø2.5 female
- Pressure Rating
- 0–6 bar (0–87 psi)
- Temperature Range
- Compensated 0 to +80 °C
- IP Rating
- IP65
- HS Code
- 9026.20
Compatibility & Fitment
Select the measuring range and pressure/electrical connection to suit the application. Observe supply voltage and load limits.
Product Documentation
More from Danfoss
Danfoss
Danfoss MBS 3250 Pressure Transmitter 0–60 bar 4–20 mA
060G6151
Danfoss
Danfoss MBS 3250 Pressure Transmitter 0–600 bar 4–20 mA
060G1600
Danfoss
Danfoss MBS 3050 Pressure Transmitter 0–400 bar ratiometric
060G1406
Danfoss
Danfoss MBS 3050 Pressure Transmitter 0–600 bar ratiometric
060G1407
Danfoss
Danfoss MBS 3050 Pressure Transmitter 0–600 bar 4–20 mA
060G1408
Danfoss
Danfoss MBS 3050 Pressure Transmitter 0–25 bar 4–20 mA
060G1409
Danfoss
Danfoss MBS 3050 Pressure Transmitter 0–60 bar 4–20 mA — 060G1411
Danfoss
Danfoss MBS 3050 Pressure Transmitter 0–16 bar 4–20 mA
060G1415
Technical guides
- Cross-Referencing Danfoss Refrigeration Components by IMPA and OEM Code
- Danfoss Product Code Decoder — 003Z, 013G, 017B, 023U, 027L, 032F, 060G, 060H, 065B, 065Z, 068Z, 084H, 132F, 148B Series (Complete Reference)
- Danfoss Maneurop MTZ Reciprocating Compressors — Model Range, Voltage Codes and Replacement Guide
Catalogue entry last verified: 2026-09-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 060G6121?
- 060G6121 can be ordered from cballast.com as a Danfoss catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Danfoss product?
- The manufacturer part number is 060G6121.
- What is the HS code for 060G6121?
- The customs tariff (HS) code for 060G6121 is 9026.20.
- Who manufactures 060G6121?
- 060G6121 is a Danfoss product in the Sensors & Instrumentation range.
- Is a datasheet available for 060G6121?
- Yes — the 060G6121 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 060G6121?
- The minimum order quantity is 1.
- Is 060G6121 available?
- Yes — 060G6121 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
