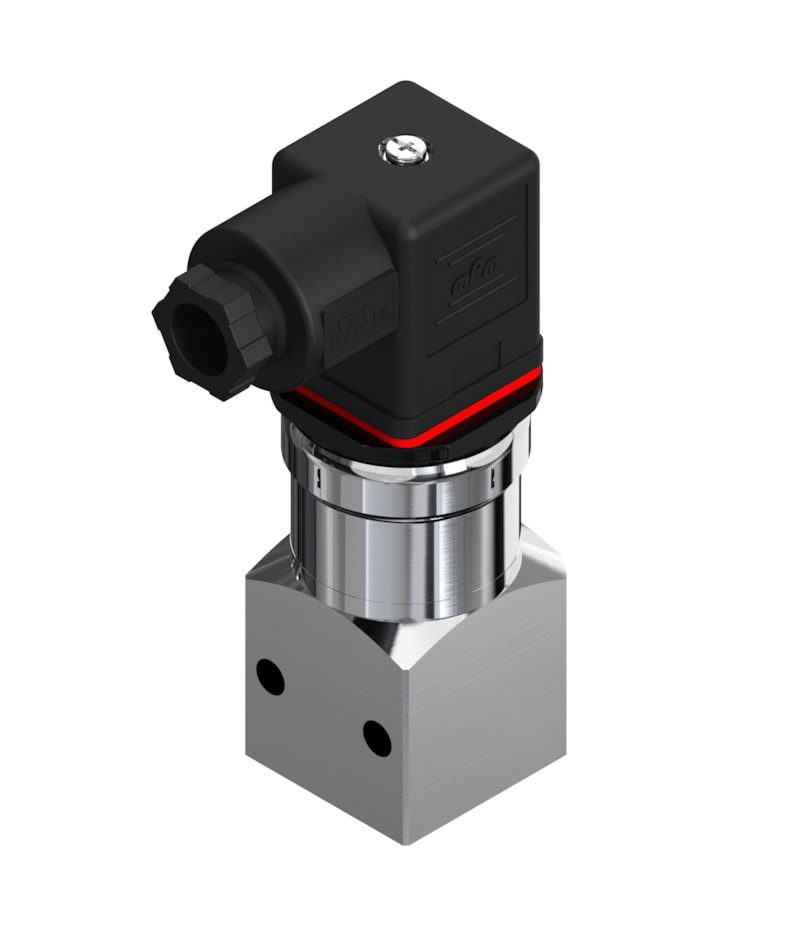

Danfoss MBS 3300 Pressure Transmitter 0–4 bar 4–20 mA — 060G6120
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3300 compact pressure transmitter, genuine OEM code 060G6120. Two-wire 4–20 mA output over a measuring range of 0–4 bar (0–58 psi), supply voltage 9–32 V DC. Pressure connection Flange with port Ø2.5 female, incl. block adapter; electrical connection Angular connector Pg 9 (EN 175301-803-A). Accuracy ≤ ±0.5 % FS (typical). Wetted parts AISI 316L stainless steel; enclosure IP65. Approvals: ATEX Ex ec IIA T4 Gc, CE, UL Recognized. EAN 5702423302666.
Specifications
- Part number
- 060G6120
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0–4 bar (0–58 psi)
- Temperature range
- Compensated 0 to +100 °C; medium -40 to +125 °C
- IP rating
- IP65
- Standard size
- Flange with port Ø2.5 female, incl. block adapter
- Thread standard
- Flange with port Ø2.5 female, incl. block adapter
Compatibility
Select the measuring range and pressure/electrical connection to suit the application. 2-wire 4–20 mA loop; observe supply voltage 9–32 V DC and load limits.
